Aluminium Cladding

Aluminium Cladding

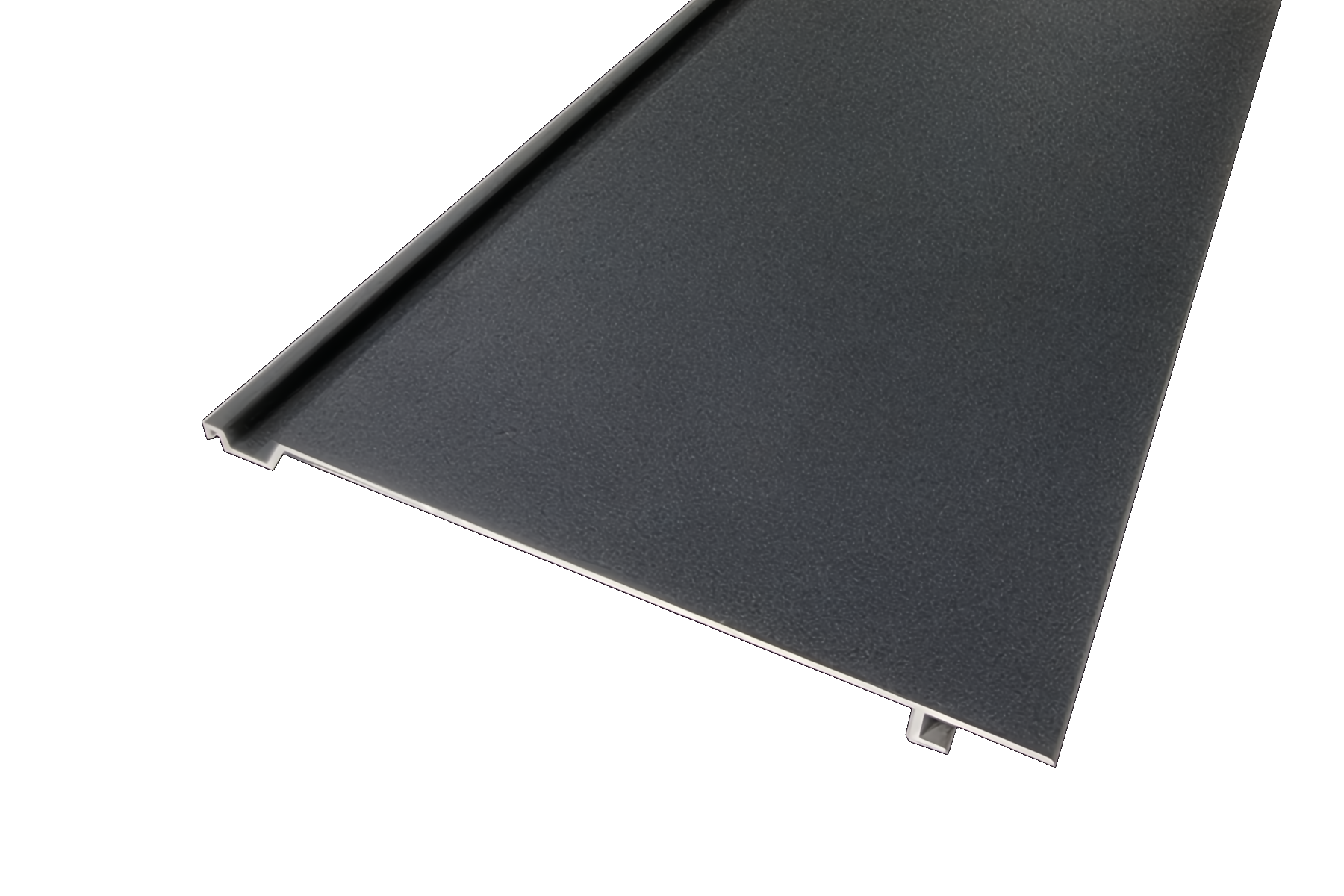

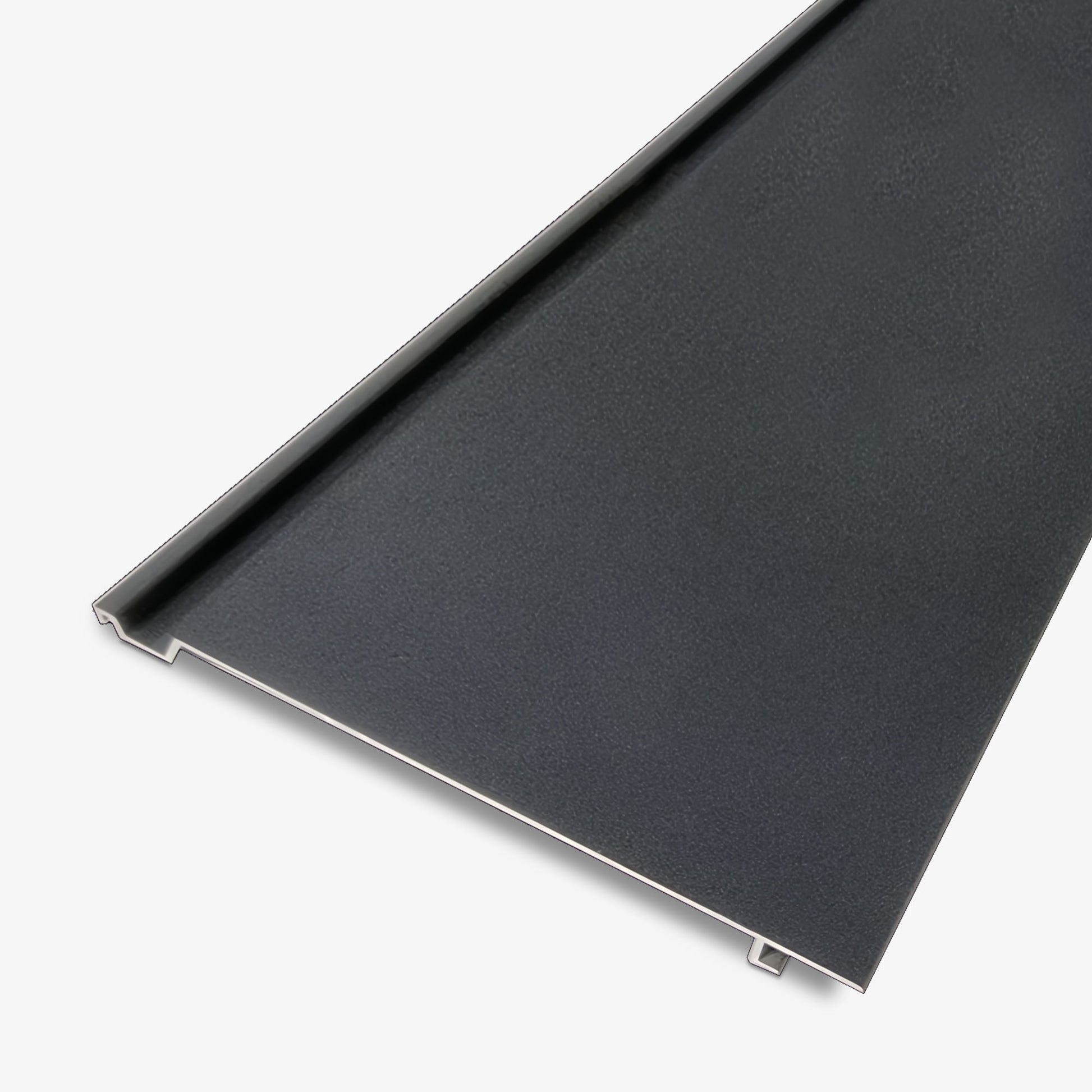

Non-combustible Aluminium Cladding Boards create a beautifully modern finish to any balcony soffit or building exterior, with their flush interlocking shiplap design. The boards and accessories are manufactured from corrosion resistant 6063 T6 Aluminium Alloy with a Class A2 EN13501-1 Reaction to Fire rating.

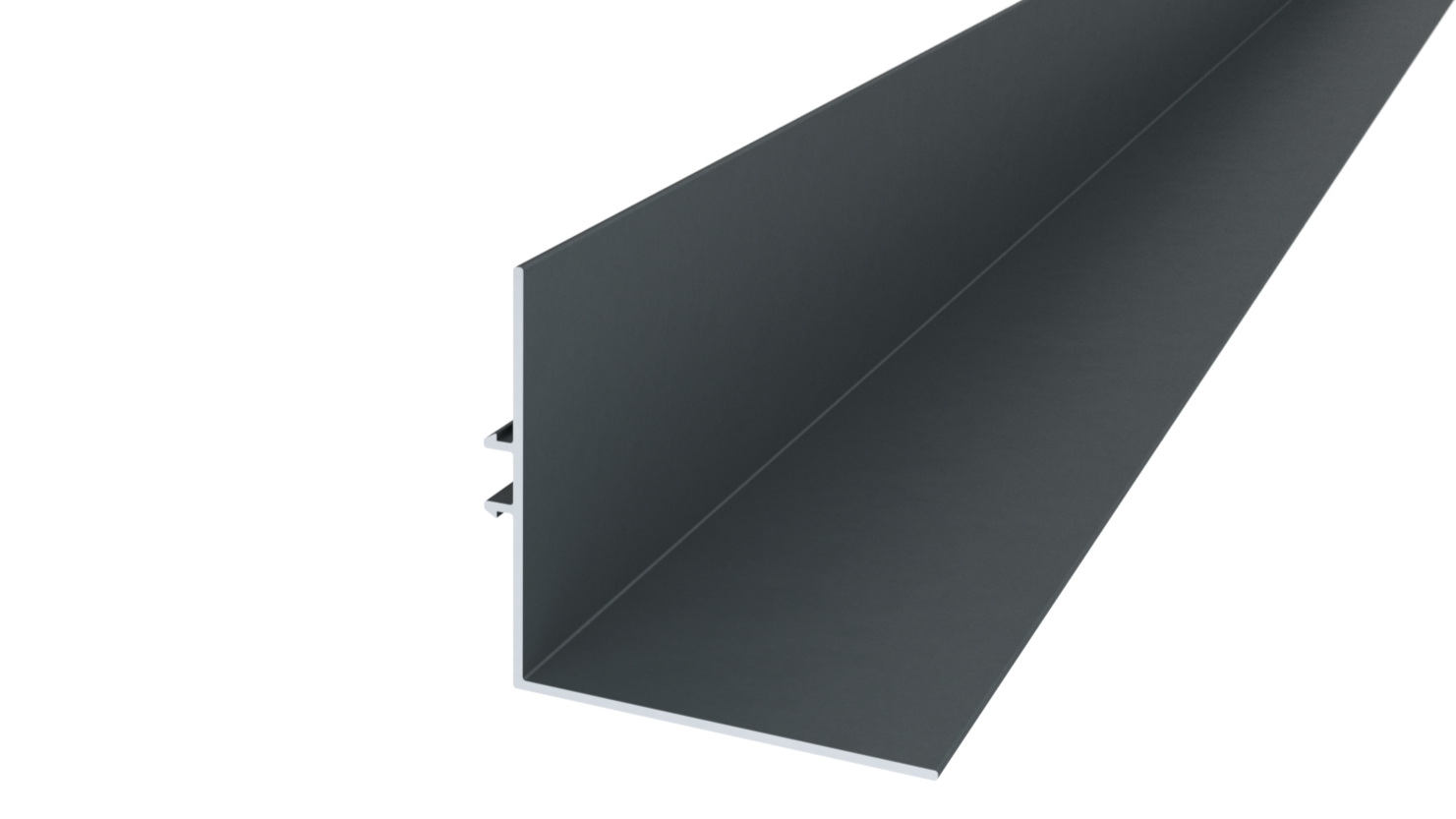

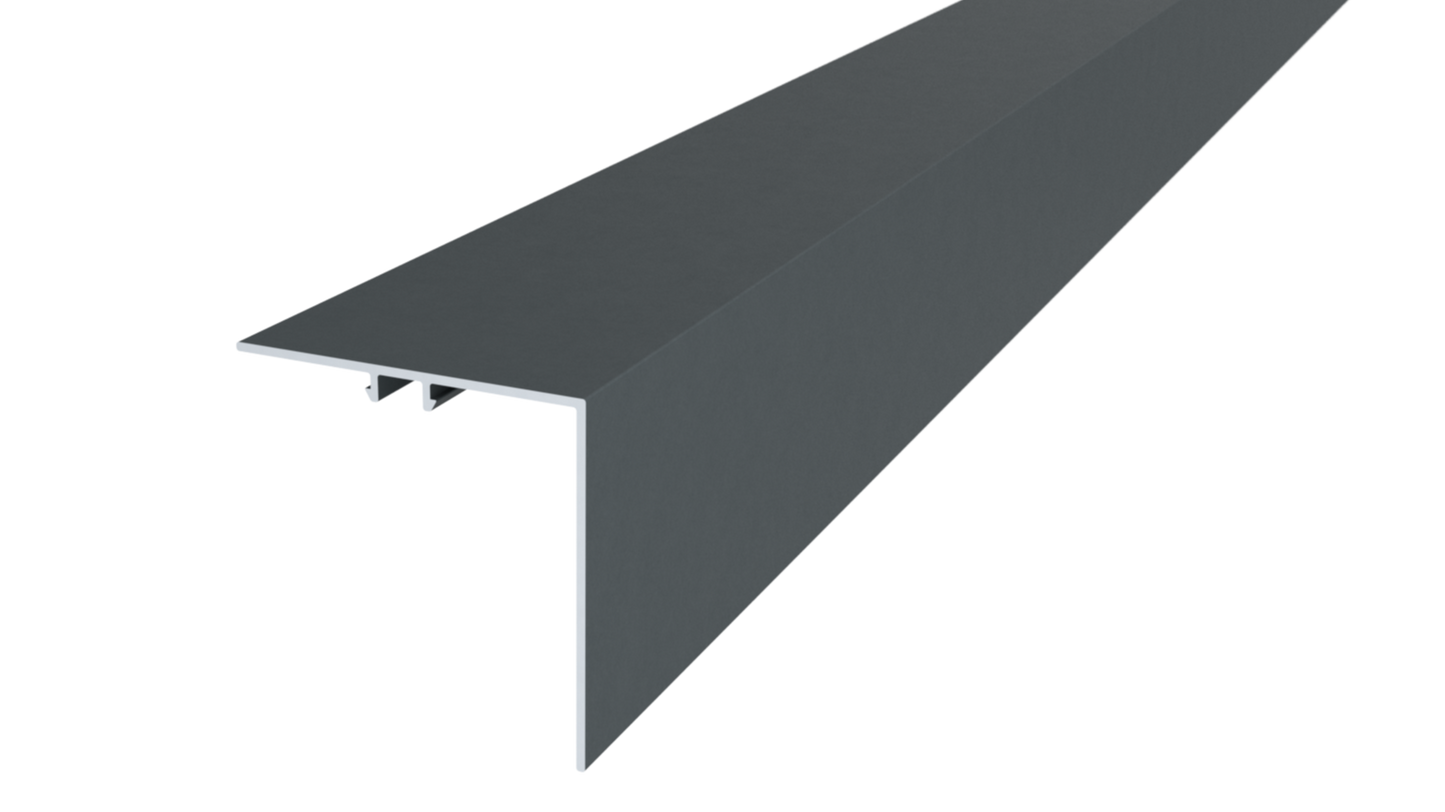

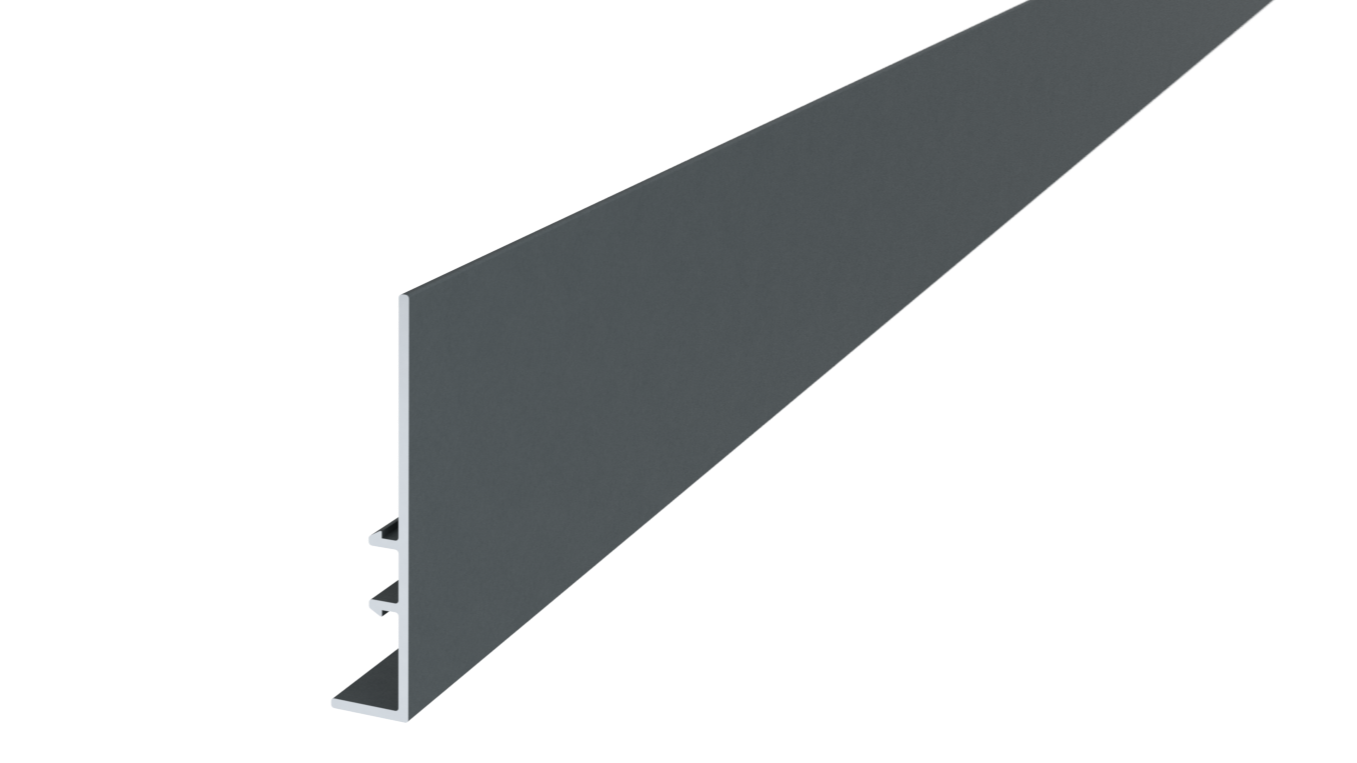

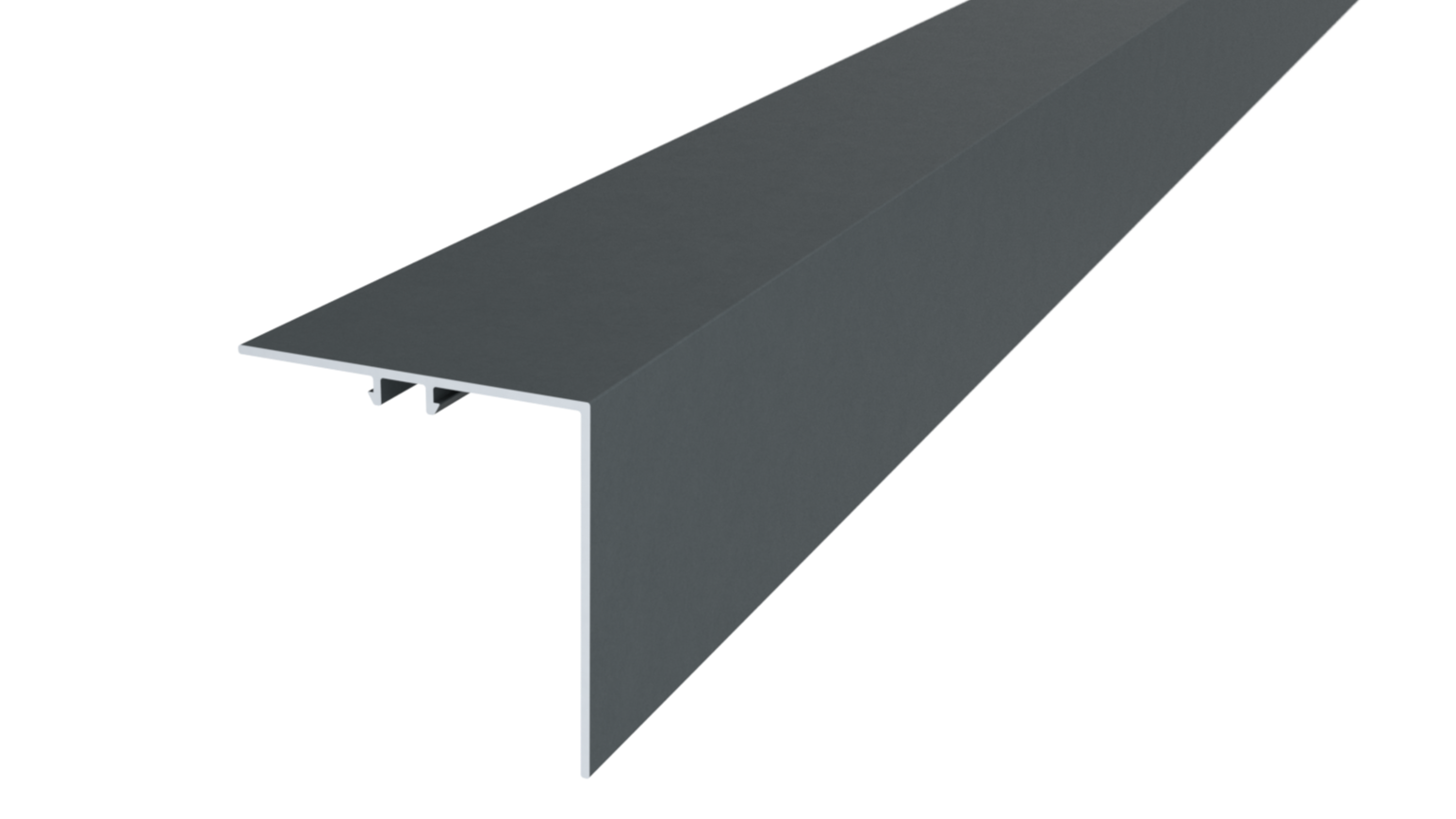

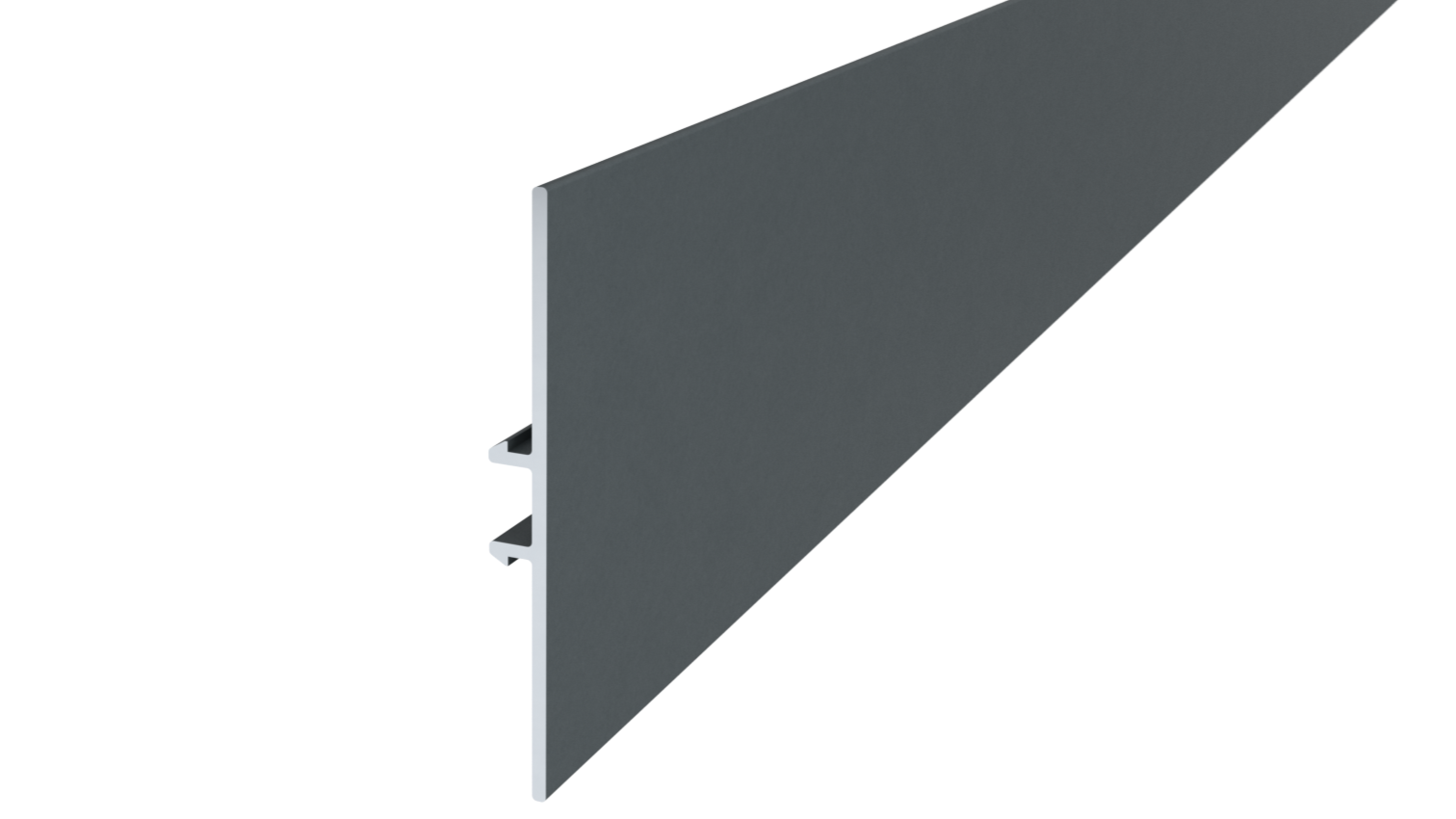

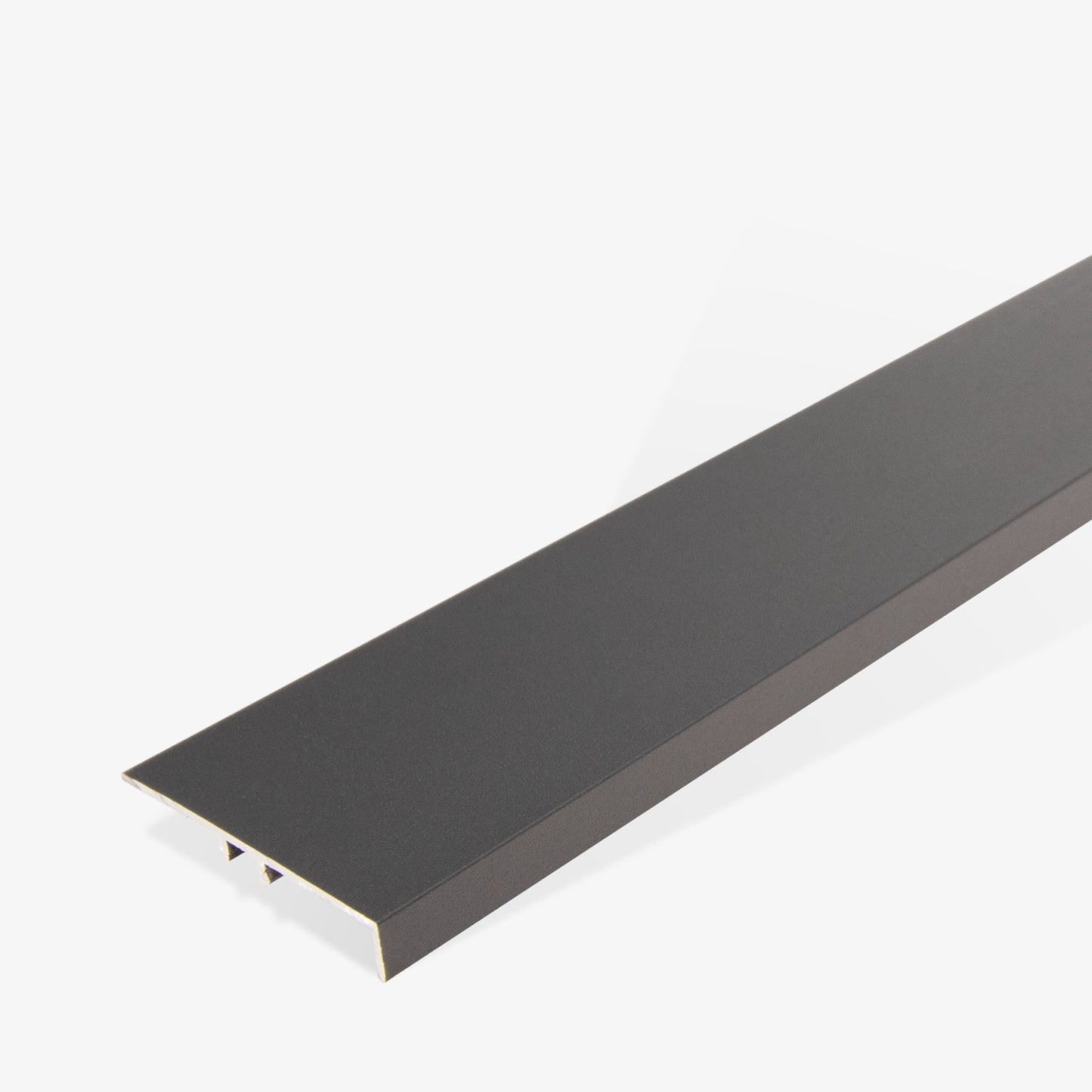

With BS 8579 compliant soffit drainage in mind, the boards have been designed to create an imperforate layer with an interlocking design to collect and direct balcony water; installed with the soffit drainage channel, water can be funnelled to any point on the balcony. The cladding system comes with innovative snap fit edging for any internal, external, butt gap or straight edge, for fast fitting and a perfectly screwless finish.

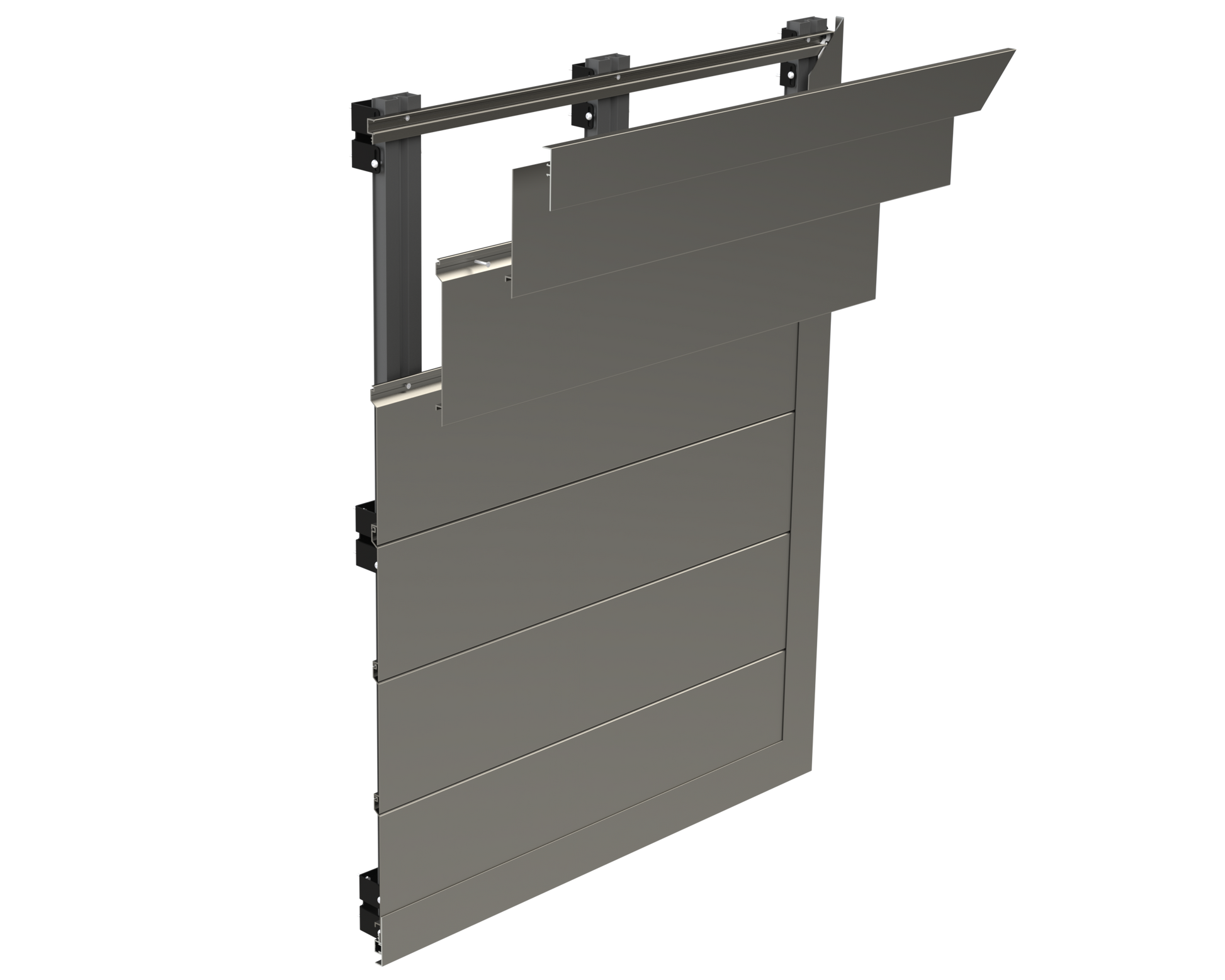

Aluminium support battens, drip tray and insect mesh complete the non-combustible cladding, for a fully protected and compliant solution for all residential and commercial installations. The 150mm face width profiles are available in lengths up to 6m and are coated with durable, textured Qualicoat standard powder coating, up to Seaside Level 2, with the option of any RAL colour.

  • Class A2 to EN 13501-1
Order Samples View full details
  • Profile: 10 x 172mm

    Length: 3600mm (or bespoke up to 6m)

    Weight: 0.798kg/m

    Fixtures: Clip Rails

  • Reaction to Fire: EN 13501-1: Class A2

    3-Point Max Span: 100mm

    2-Point Max Span: 600mm

    Max Cantilever: 600mm

    *All spans tested to 2kN point load

  • PTV Slip Resistance:

    Micro Roughness:

    Finish: Qualicoat up to Seaside Level 2

    Warranty: 30 Year
