Wind Uplift Roof Terrace Systems

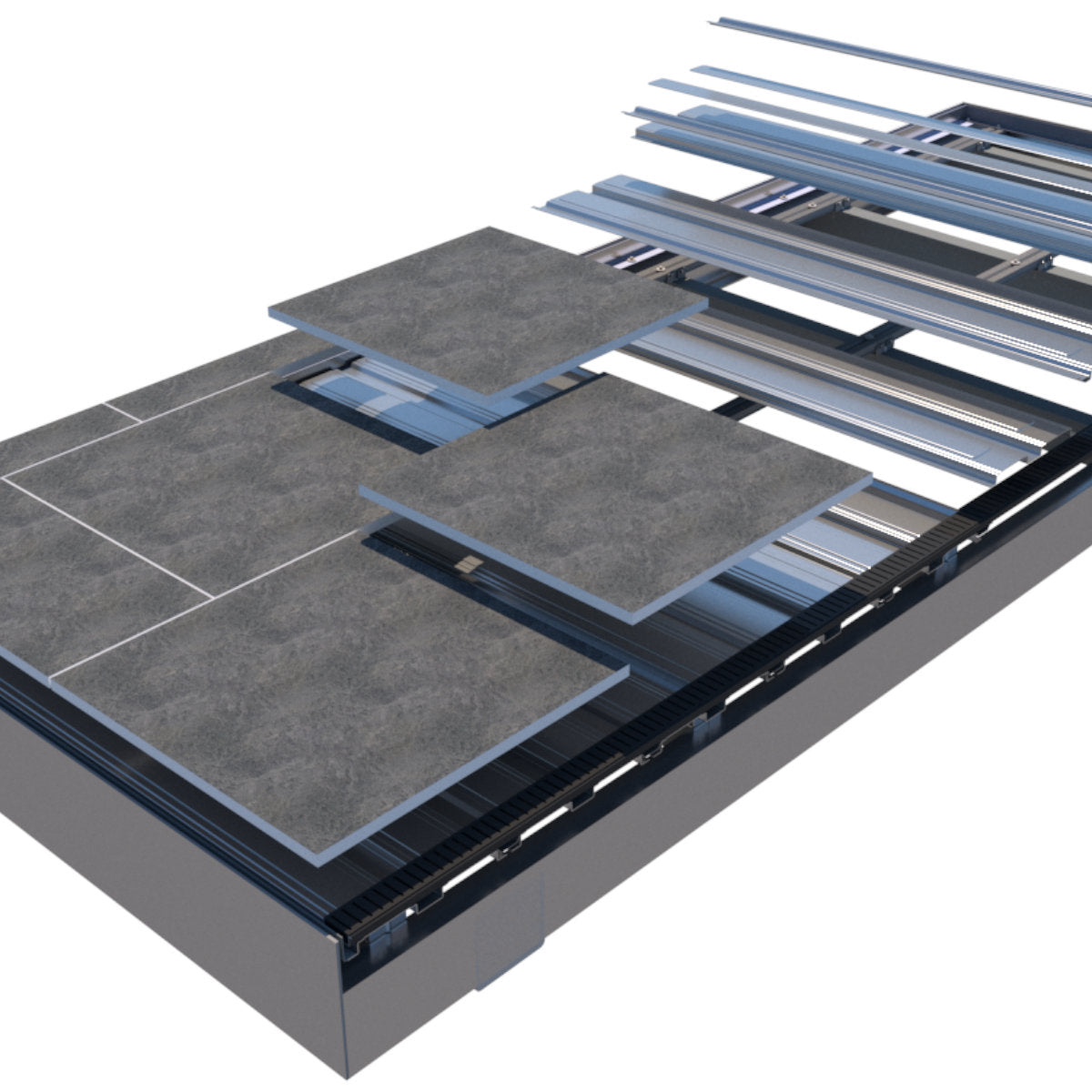

Wind Uplift Roof Terrace Systems

Options

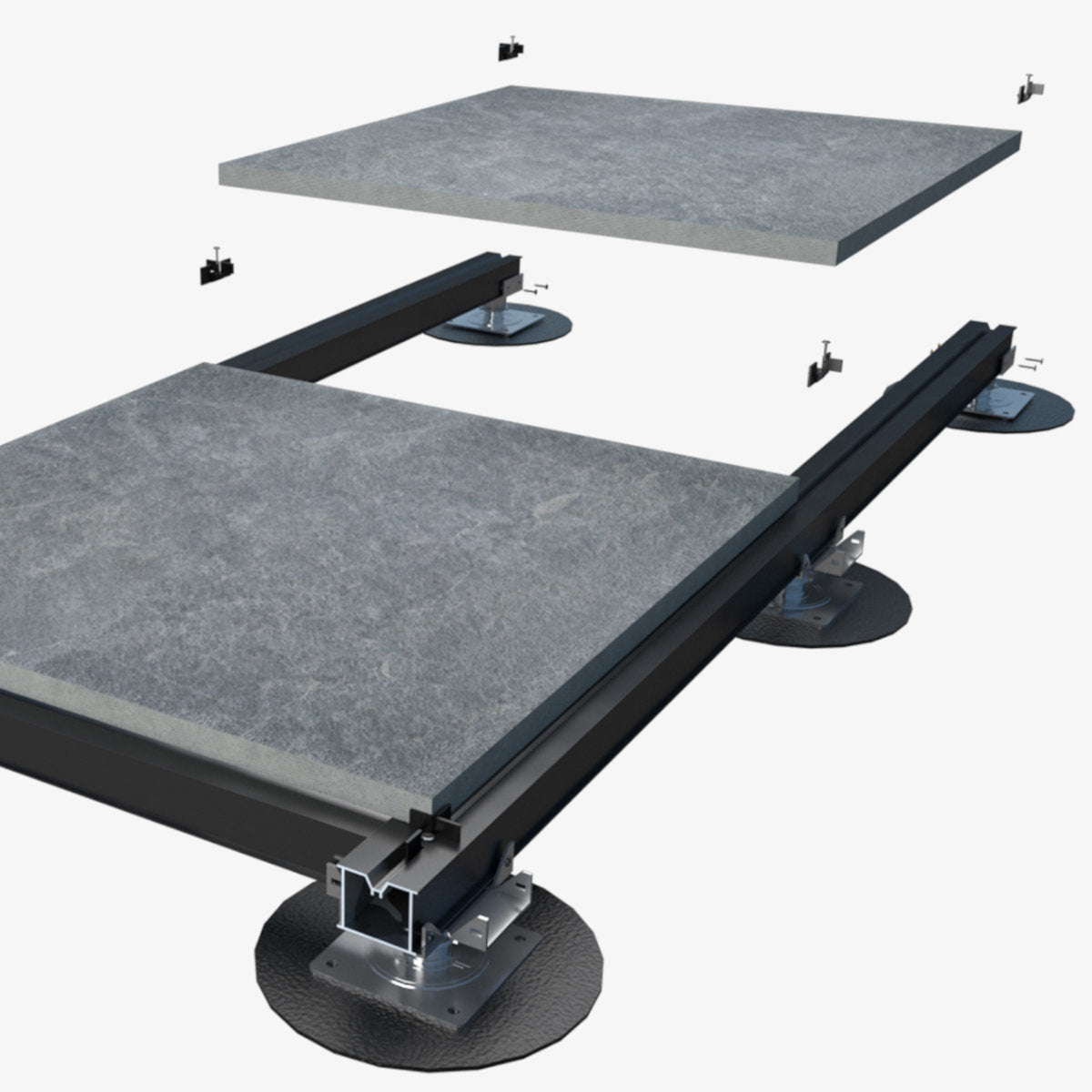

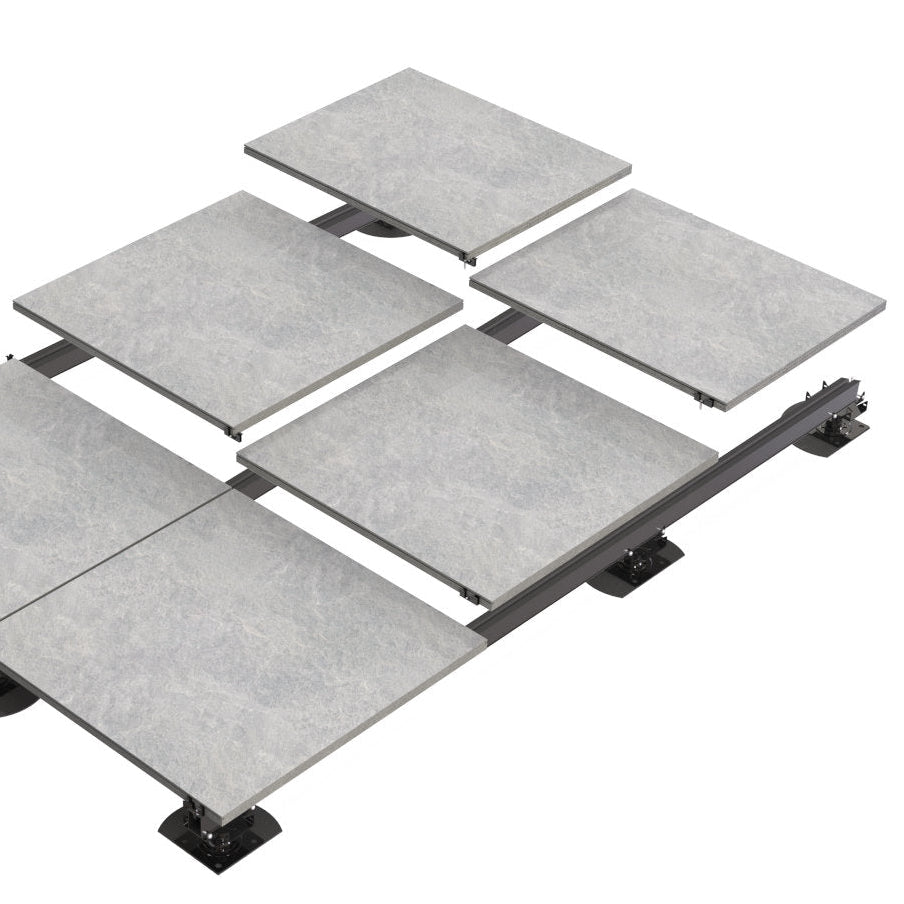

Wind uplift paving clips are used with anchored porcelain paving tiles, they both secure pavers in place and act as spacer tabs, screw-fixed into the joist substructure beneath each paving slab to resist wind uplift in exposed rooftop environments. The mechanical fixing allows individual slabs to be removed easily for maintenance or inspection without disturbing surrounding units.

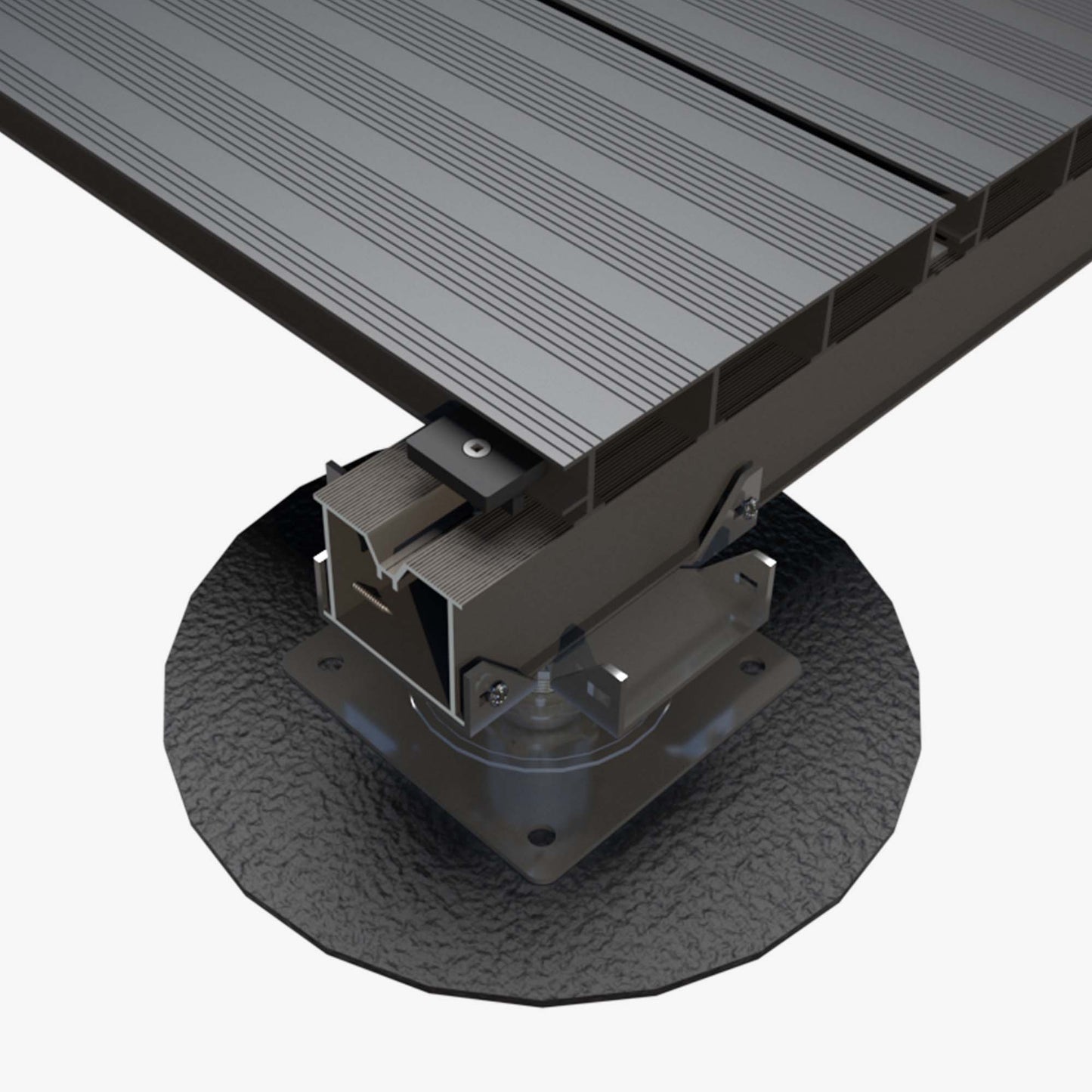

A range of tested wind uplift solutions securing paving and decking finishes against exposed rooftop conditions, compatible with Pro-Grip Aluminium Decking, Fibre Cement Decking and Porcelain Paving. Built on an aluminium joist (6063 T6) and adjustable metal pedestal substructure, the system is EN13501-1 Calss A2 fire rated and non-combustible throughout, providing secure, wind-resistant rooftop finishes for exposed commercial and residential terraces.

Key Benefits

  • Suitable for exposed rooftops
  • Mechanical or adhesive options
  • Removable paver/plank solutions
Download Brochure View full details

Compatible Surface Finishes

Explore the variety of finishes designed for durability, style, and seamless integration with our systems.

1 3

Supporting Components

Explore the vital building blocks that ensure reliability and longevity in every installation.

1


Aluminium Joists

Aluminium Bearers provide strong and compliant support for non-combustible substructure, engineered from 6063 T6 Aluminium the beams have a Class A2 Rating to EN13501-1 Reaction to Fire.

View full details
1


Adjustable Metal Joist Pedestals

MESA Non-Combustible Adjustable Support Pedestals are engineered to offer market leading strength for external balconies and terraces where EN13501-1 Reaction to Fire rating of A2 is required. Manufactured from electrophoretically coated steel, each pedestal can support loads up to 1000kg, providing a solid foundation that can withstand the elements and heavy foot traffic.

View full details
1 1


MESA Adhesive Glue

Non-Combustible Adhesive by MESA is an A2 fire-rated epoxy adhesive. The adhesive holds paving slabs, preventing the uprooting of slabs in the event of very strong winds.

View full details
