Balcony Soffit System
Balcony Soffit System

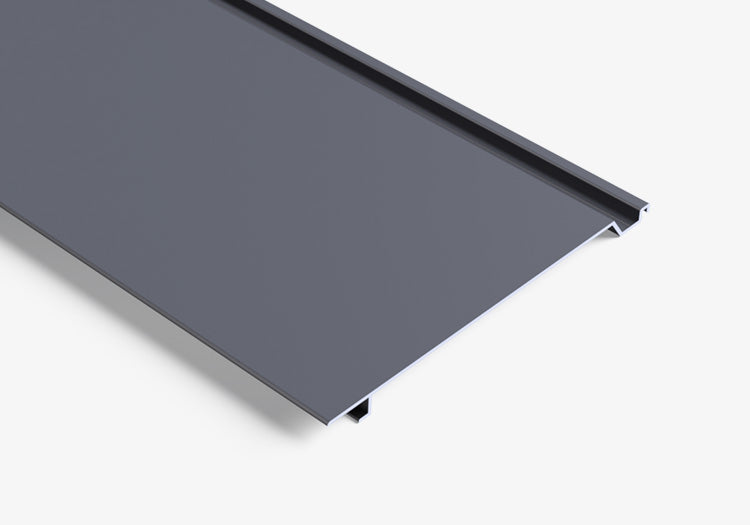

Non-combustible Aluminium Soffit Board system creates a beautifully modern finish to any balcony soffit with a flush interlocking shiplap design. The boards and accessories are manufactured from corrosion resistant 6063 T6 Aluminium Alloy and have a Class A2 EN13501-1 Reaction to Fire rating.
With BS 8579 compliant soffit drainage in mind, the boards have been designed to create an imperforate layer with an interlocking design to collect and direct balcony water; installed with the soffit drainage channel, water can be funnelled to any point on the balcony. The system comes with innovative snap fit edging for fast fitting and can be mounted using the non-combustible aluminium bearers with joist support brackets.
Contact
How our soffit works

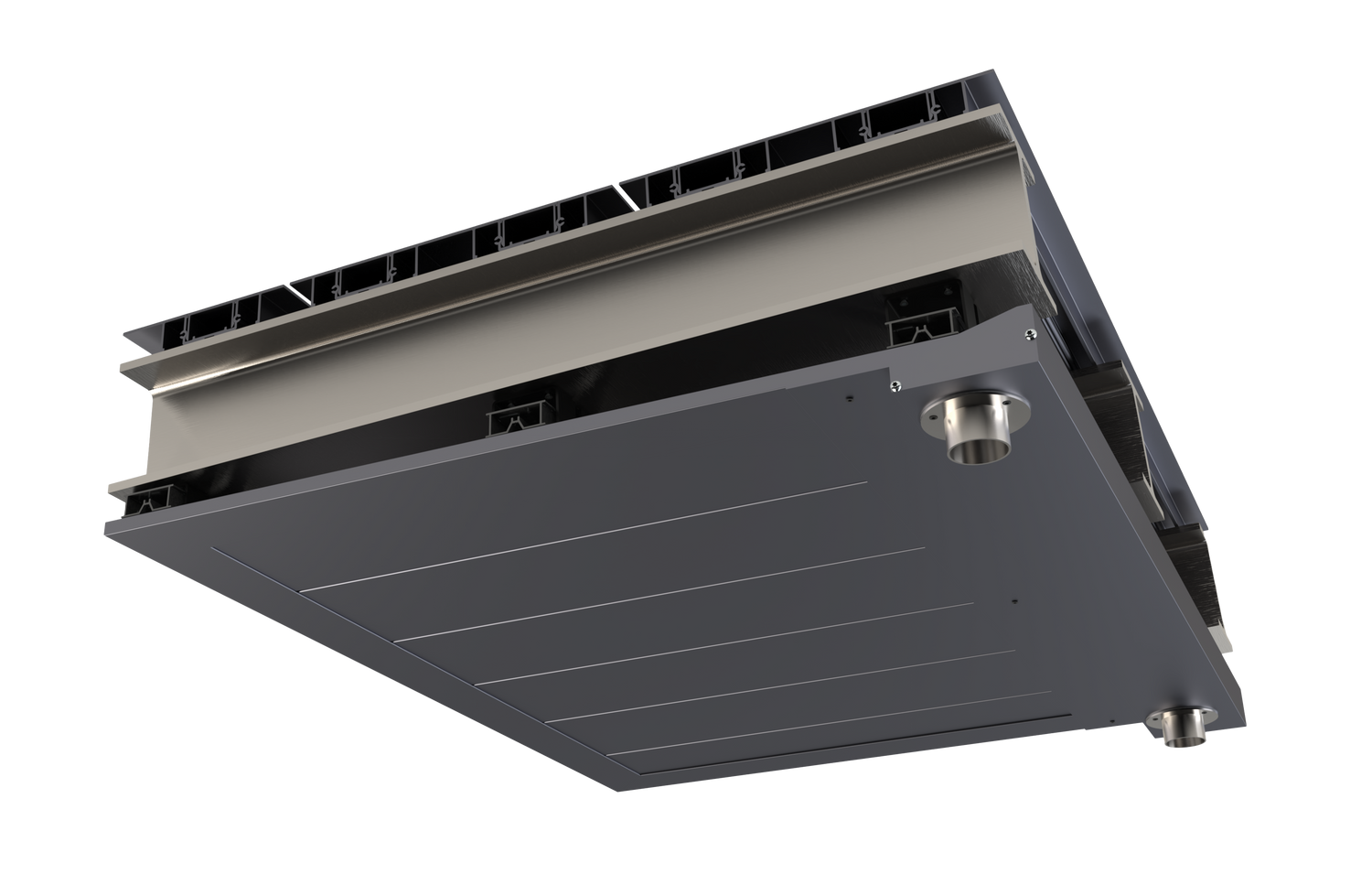

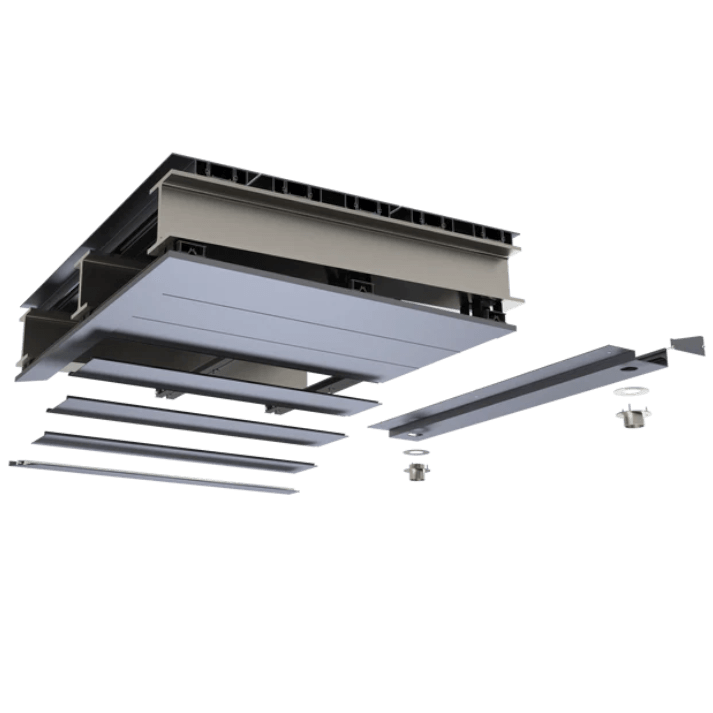

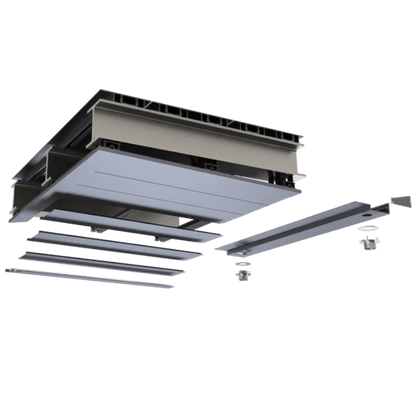

The soffit system is hung from or bolted to the underside steels of the balcony to create a floating imperforate surface. The soffit boards will be mounted to aluminium support bearers which can fixed to balcony steels, at a slight drainage angle if required, using joist support brackets. With interlocking boards, water will be trapped and directed to a drainage channel to be piped from the building.
Innovate snap fit edging can be used to finish the soffit edges, closing gaps to insects and will act to support any ripped cladding boards.
Why is it important?

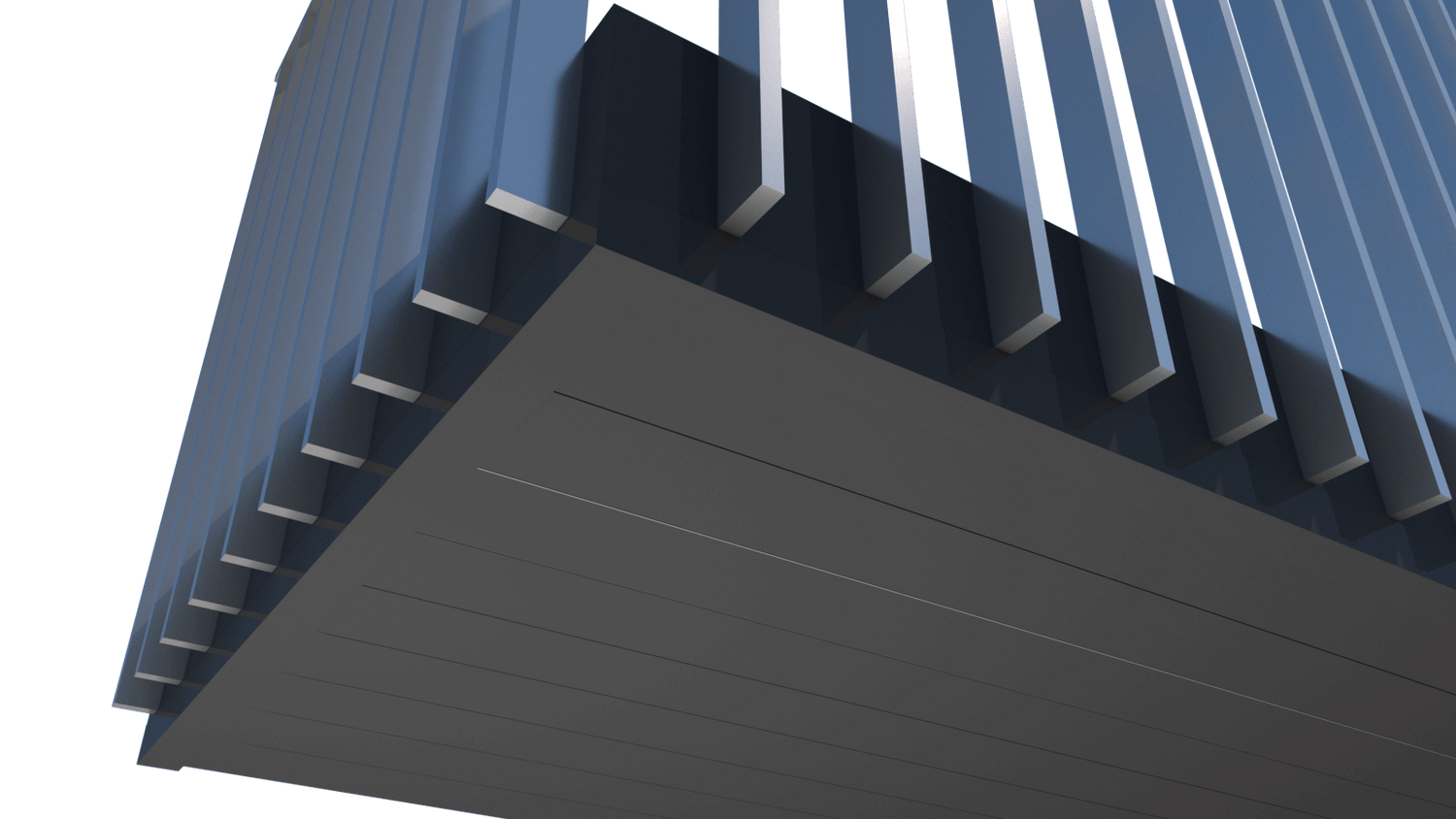

Soffits both conceal structural components to give an unrivalled clean aesthetic to a building exterior, and can be used as a drainage layer to collect and direct water in compliance with BS 8579, ensuring water does not fall to the balconies below.
An easy, low-maintenance soffit solution
We understand the demands of commercial installations, which is why our soffits are designed for efficient installation and minimal upkeep. Key features include:
Aluminium Soffits: Lightweight, corrosion-resistant and Qualicoat standard powder coating, aluminium’s resilience makes it perfect low maintenance solution for balconies exposed to weather.
Pre-Finished Panels: Soffit panels come pre-finished and ready for installation, speeding up project timelines and reducing labour costs.
Easy-to-Clean Surfaces: With smooth, non-porous surfaces, soffits resist dirt and grime, requiring only occasional cleaning to maintain their appearance.
Long-Lasting Durability: Made from high quality materials, backed up with a 30 year warranty and 60 year design life, aluminium soffits are engineered to perform well over time.
Support and Guidance for Your Balcony Soffit Project
With our comprehensive support, you can create a balcony soffit solution that meets your project’s aesthetic and functional goals.
Design Consultations: Our specialists work with you to select the best configurations for your project.
Technical Resources: Access technical documents to streamline the design and installation process.
On-Site Assessments: For complex installations, we offer on site assessments to ensure your project's success.
