Low Height Roof Terrace Systems

Low Height Roof Terrace Systems

Options
We can supply terrace decking from just 45mm total buildup height dependent on the surface finish required and the surface being installed on. The system will comprise of a porcelain, fibre cement or aluminium decking surface finish fixed to low profile aluminium bearers, an option of adjustable pedestals or fixing brackets and protective pads.

A range of low buildup roof terrace systems engineered for rooftop projects where door thresholds and available height are restricted, common in refurbishment work. The low buildup is achieved with non-combustible Class A2-s1,d0 (EN13501-1) components beneath aluminium decking, porcelain paving, porcelain decking or fibre cement decking.

Benefits

  • Low build-up solutions
  • Ideal for refurbishment projects
  • Precise height adjustment
  • Supports drainage falls
Download Brochure View full details

Compatible Surface Finishes

Explore the variety of finishes designed for durability, style, and seamless integration with our systems.

1 3

Supporting Components

Explore the vital building blocks that ensure reliability and longevity in every installation.

1

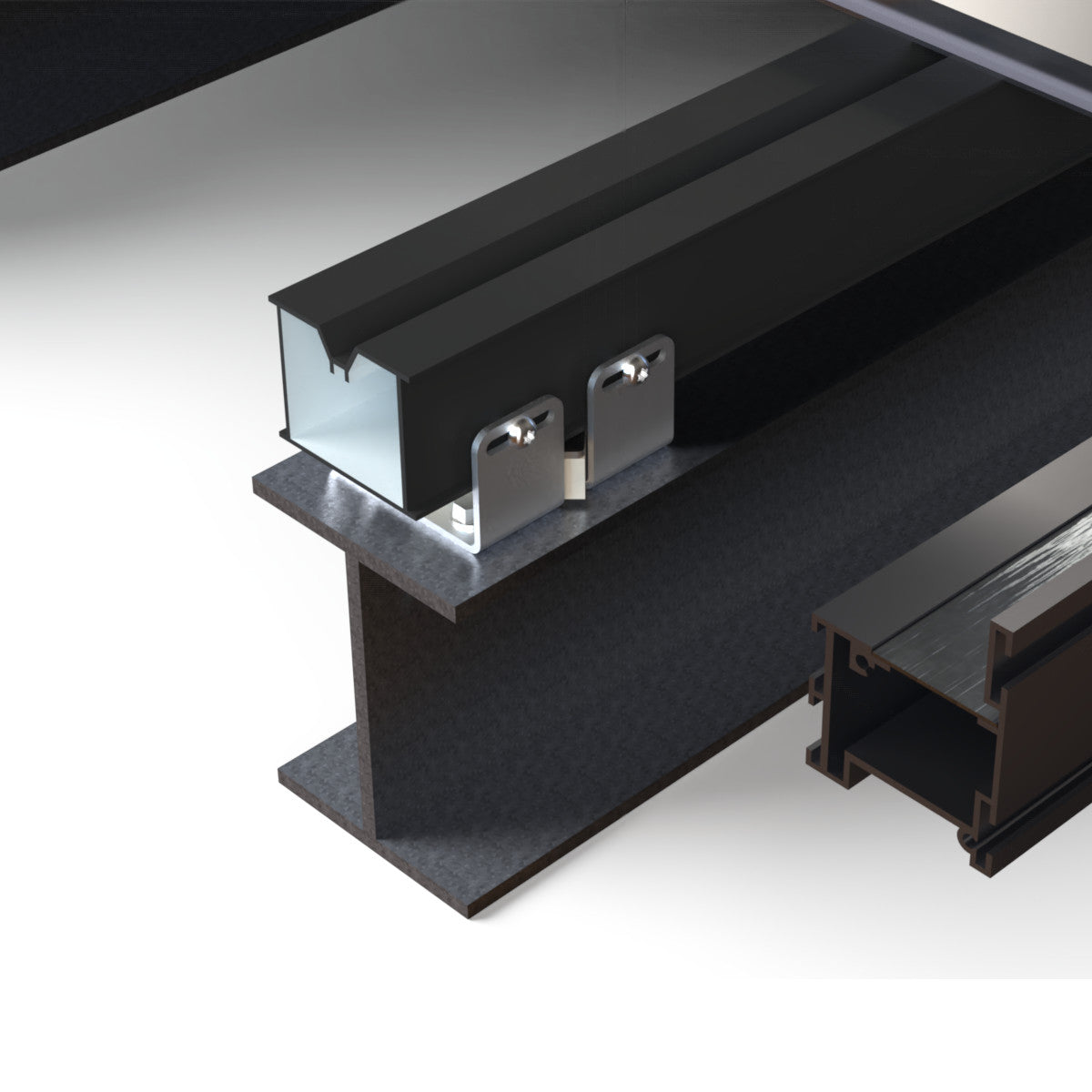

Shim Joist Brackets

Shim Joist Brackets provide precise levelling and secure support for support bearers on structural steels with a unique patented solution to save precious installation time. The brackets, which come in 4 height sizes, are fixed down to steels though 6mm holes in the bracket base and bearers are secured through slotted holes in the bracket sides.

View full details
1


Aluminium Joists

Aluminium Bearers provide strong and compliant support for non-combustible substructure, engineered from 6063 T6 Aluminium the beams have a Class A2 Rating to EN13501-1 Reaction to Fire.

View full details
1 2


Metal Pedestal Spreader Plate

MESA Non-Combustible Adjustable Support Pedestals are engineered to offer market leading strength for external balconies and terraces where EN13501-1 Reaction to Fire rating of A2 is required. Manufactured from electrophoretically coated steel, each pedestal can support loads up to 1000kg, providing a solid foundation that can withstand the elements and heavy foot traffic.
