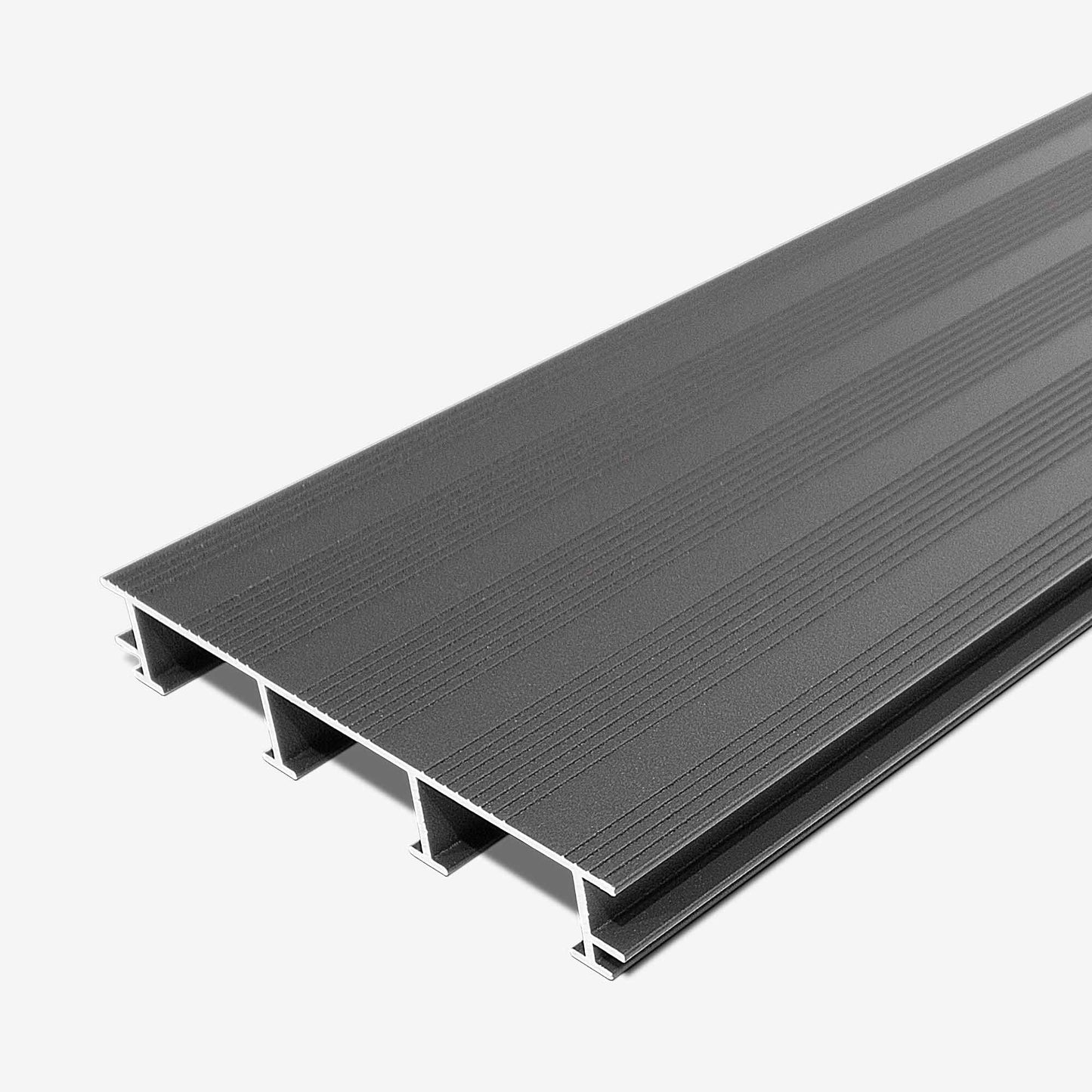

Pro-Grip Aluminium Decking
Pro-Grip Aluminium Decking

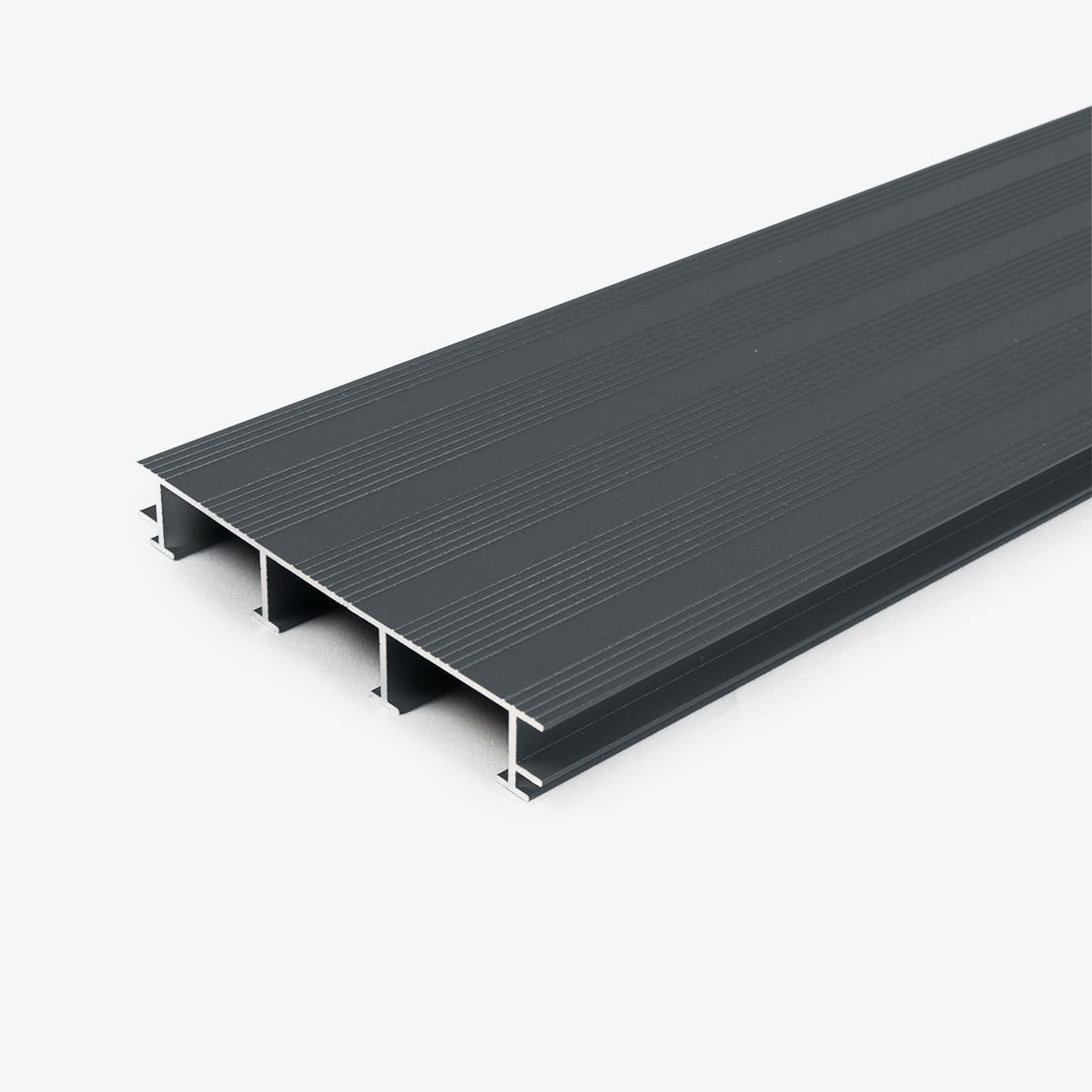

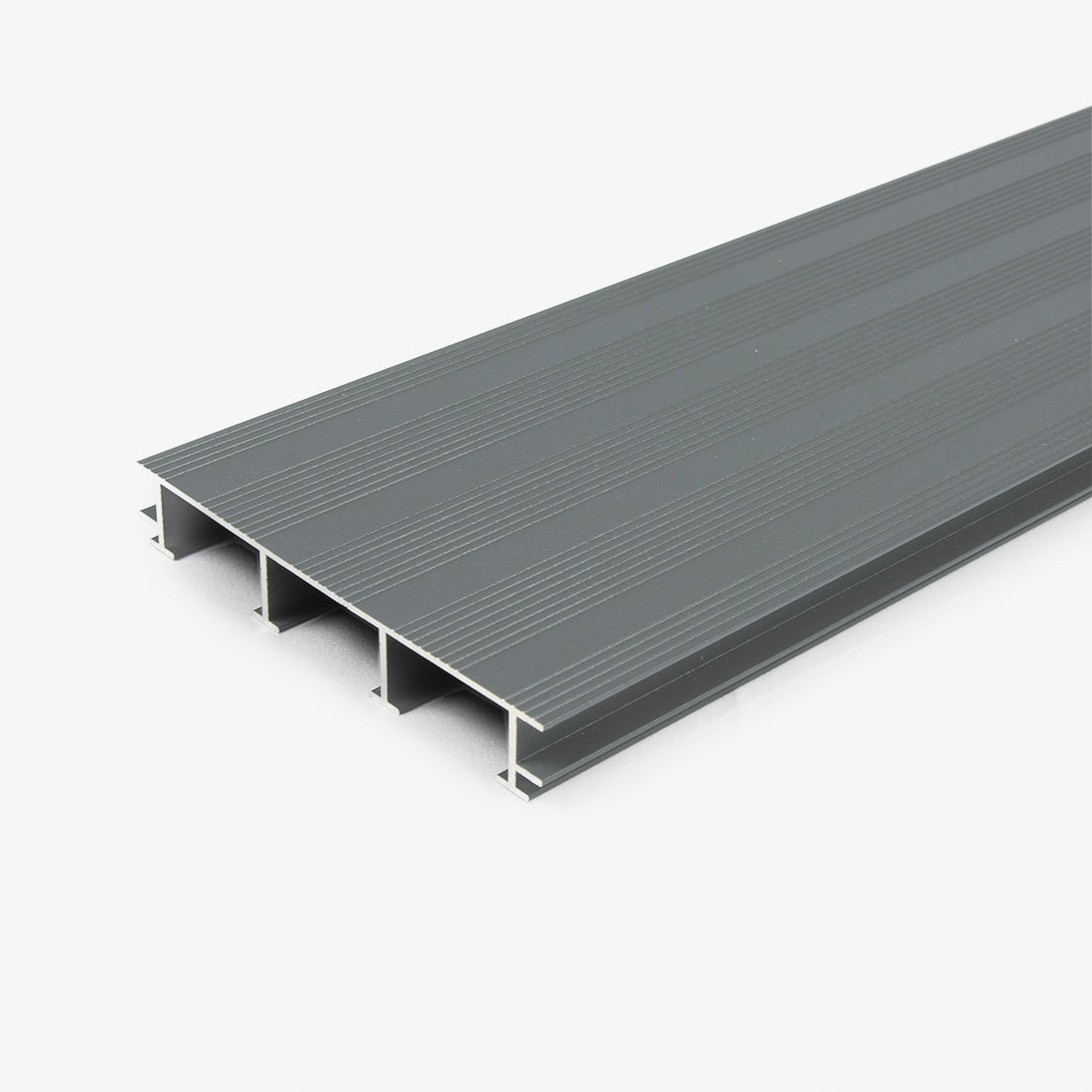

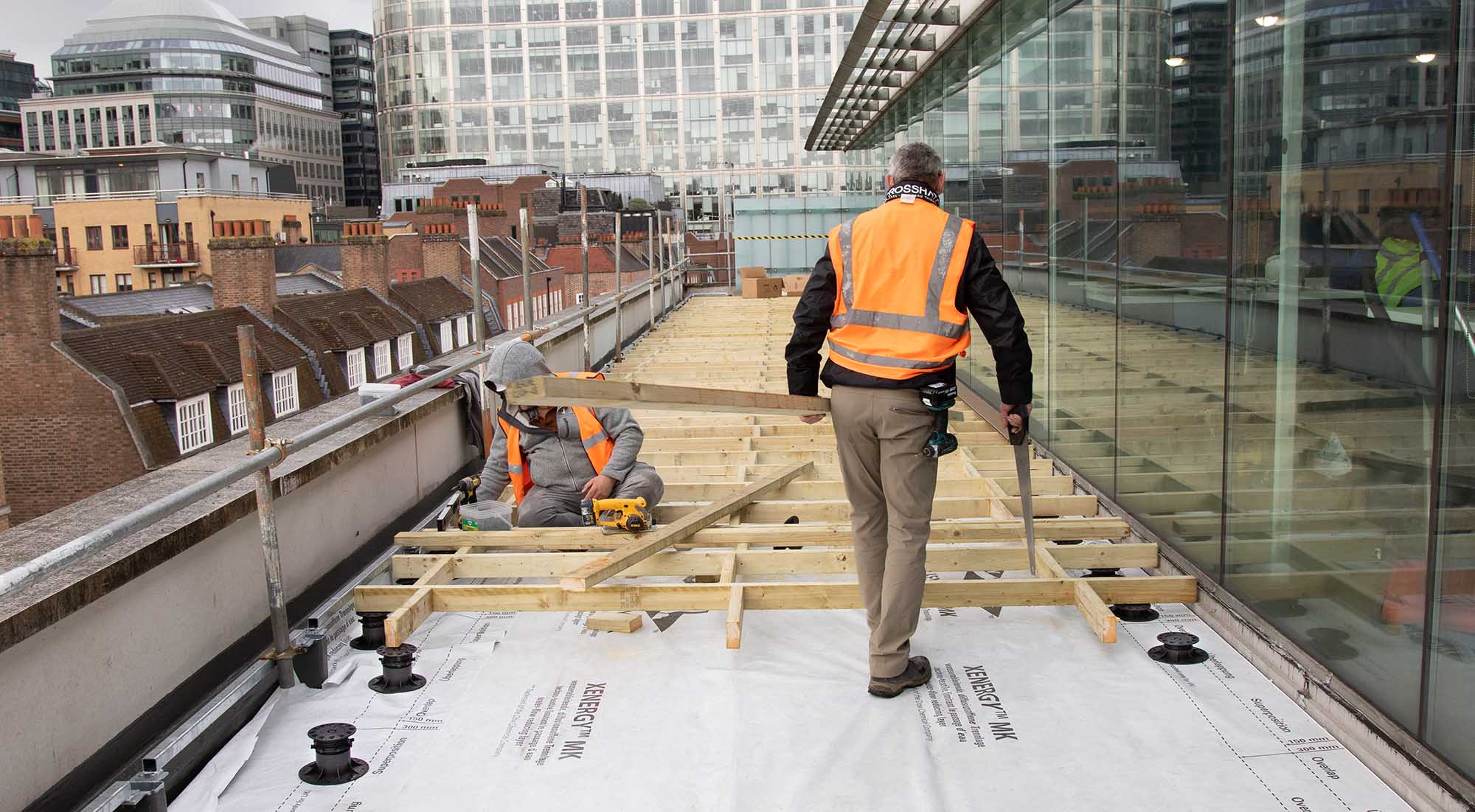

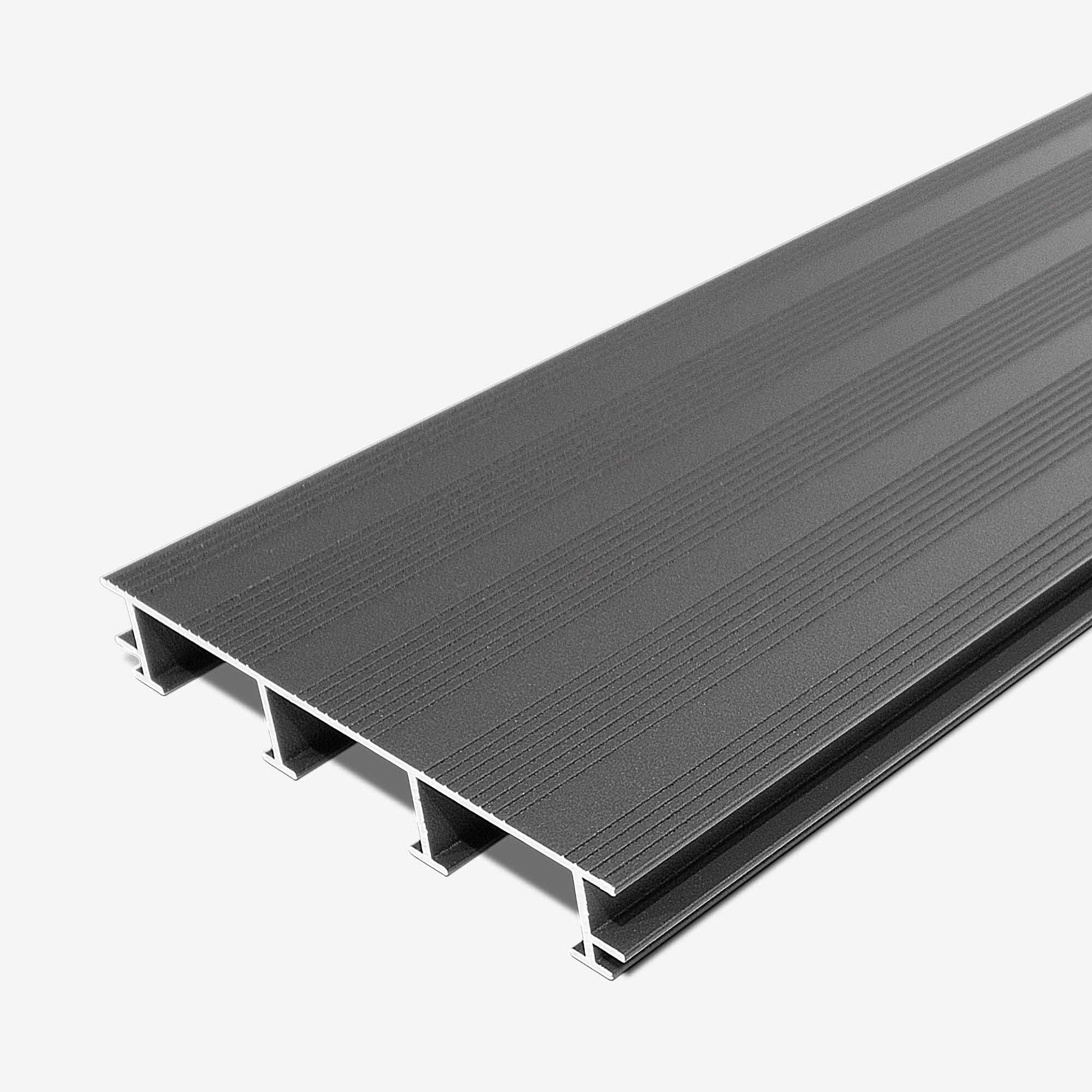

Pro-Grip Aluminium Deck Boards offers a cost-effective decking solution with simple installation using a hidden clip-system. The 145mm wide boards have a unique positively ridged surface to give outstanding slip resistance even as a mill finish product. Fasteners between boards create a 6mm gaps, compliant with BS 8579 for drainage through to a soffit, and allows for simple removal of individual boards, making it easy to directly access the soffit for maintenance and crane finished balconies into position. Ideal for flat roof terraces, the system comes complete with non-combustible aluminium bearers and adjustable support pedestals creating a total build up height between 50 to 600mm. The boards are engineered from T6 6063 aluminium for a max span of 650mm and coated with durable, slip resistant Qualicoat standard powder coating, up to Seaside Level 2, with the option of any RAL colour.
- Class A2 to EN 13501-1
- Qualicoat certified powder coat
- Legally compliant to BS:8579
Contact
Specifications
-

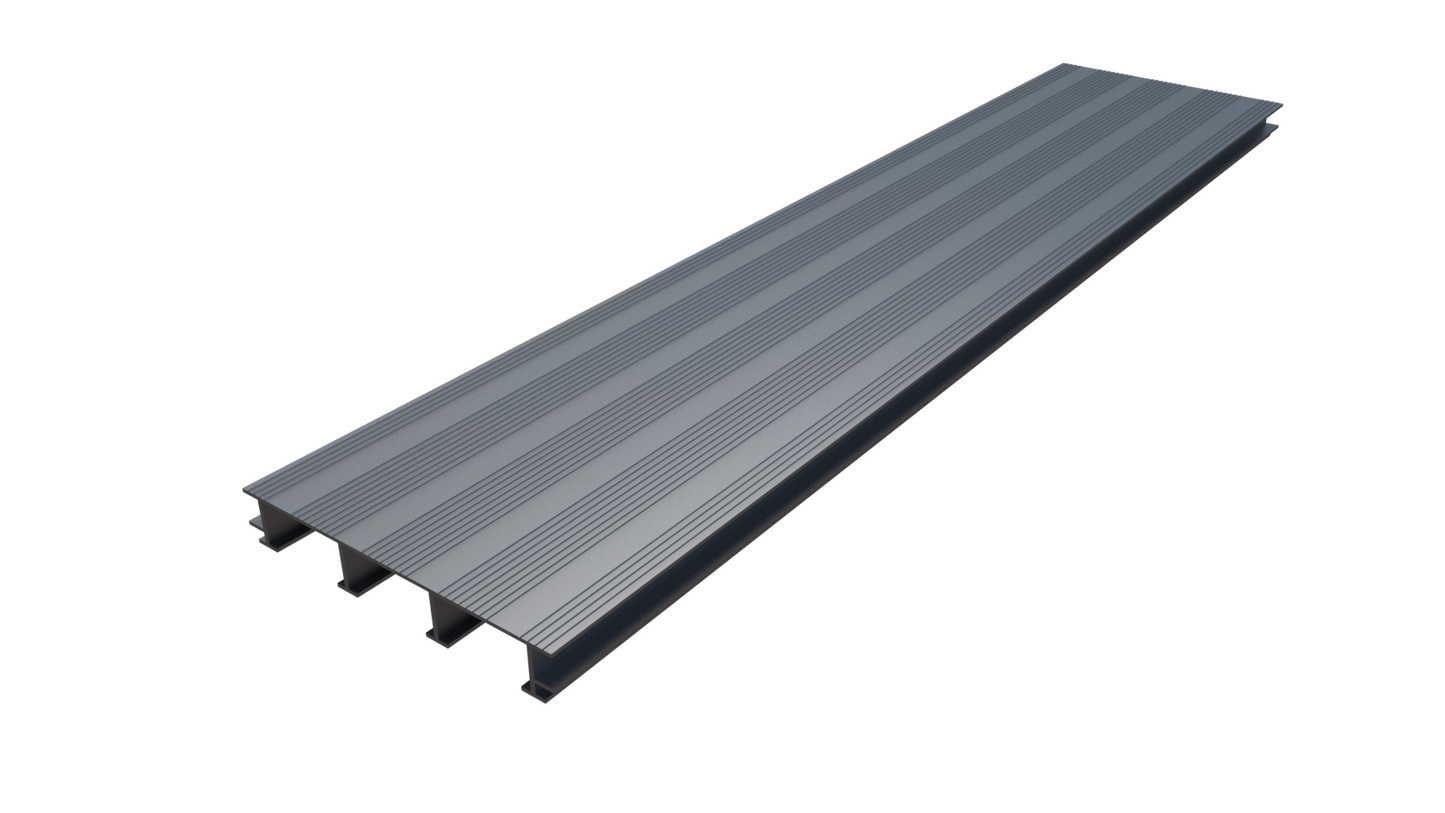

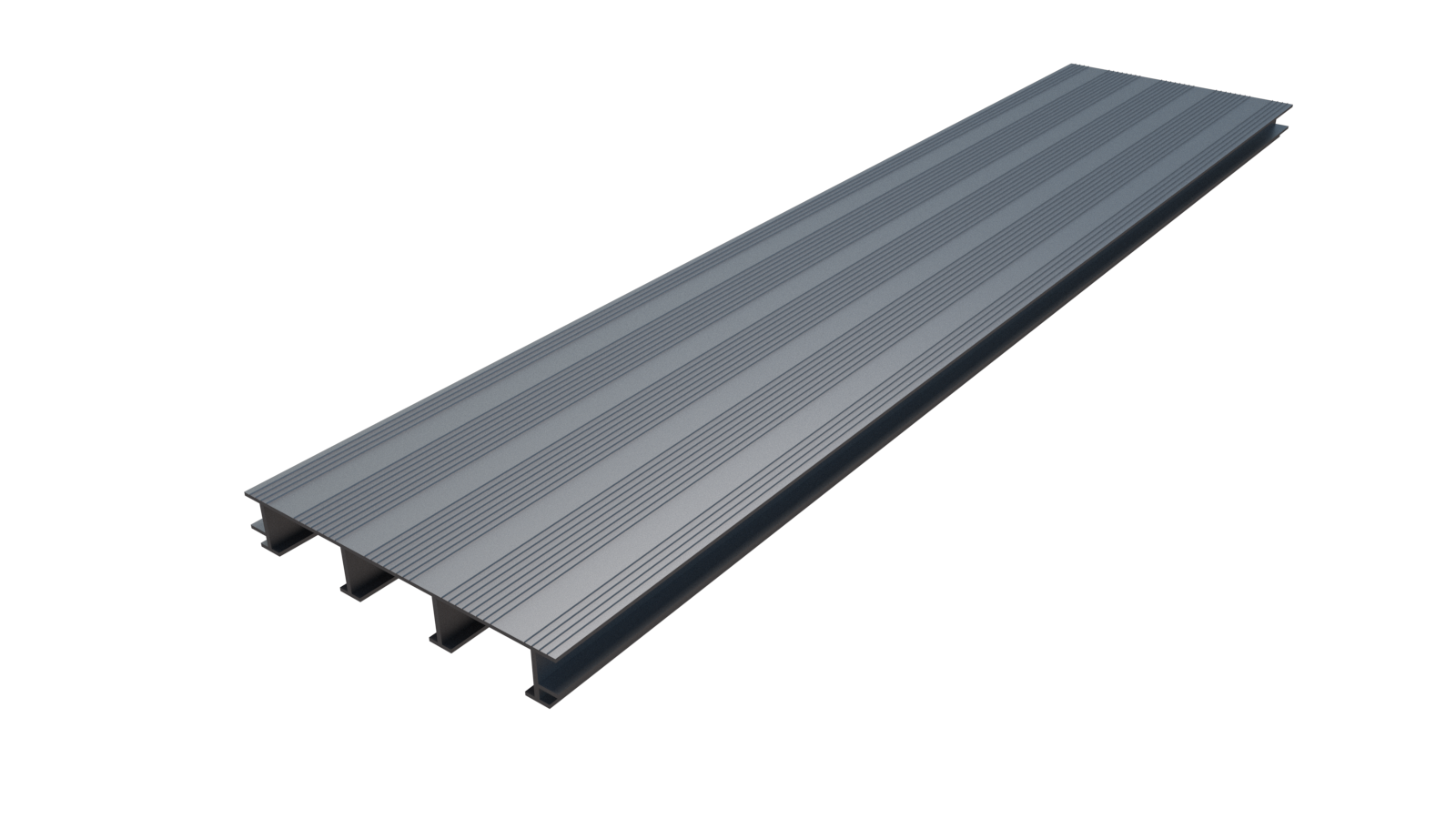

Profile: 145 x 21 mm
Length: 3600 mm (or bespoke up to 6m)
Weight: 8.55 kg/m²
Fixtures: Clip System
-
Reaction to Fire: A2 s1 d0 and A2fl s1
3-Point Max Span: 650 mm
2-Point Max Span: 500 mm
Max Cantilever: 125 mm
*All spans tested to 2kN point load
-
PTV Slip Resistance: Dry: 68 | Wet:46 – Low slip potential
Micro Roughness: Rz: 25 μm – Low slip potential
Finish: Qualicoat up to Seaside Level 2
Warranty: 30 years

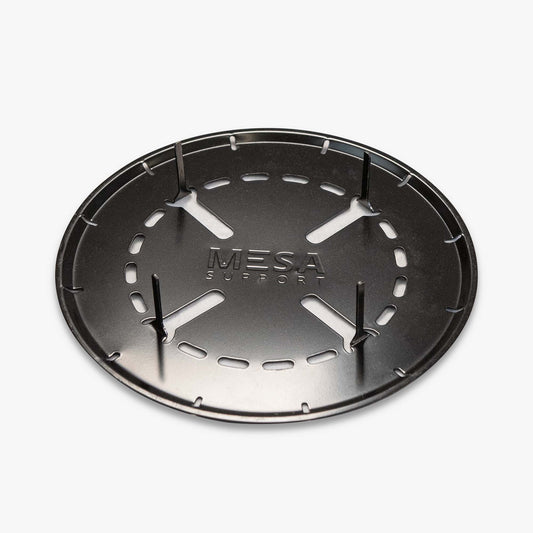

Substructure Components
Downloads
Case Studies
View All Case Studies-
Eglinton Road
Located at the prominent intersection of Eglinton Rd and Donnybrook Rd, this impressive development comprises staggered residential buildings positioned around a beautifully landscaped courtyard.
-
Consort Place
EnviroBuild's non-combustible Pro-grip aluminium decking and substructure were the optimal choice for Consort Place's apartment balconies, covering a substantial 1250 sqm.
-
Coombe Road
The Coombe Road development represents a remarkable endeavour, encompassing the design and construction of two buildings featuring four residential blocks spanning 3 to 7 storeys.
