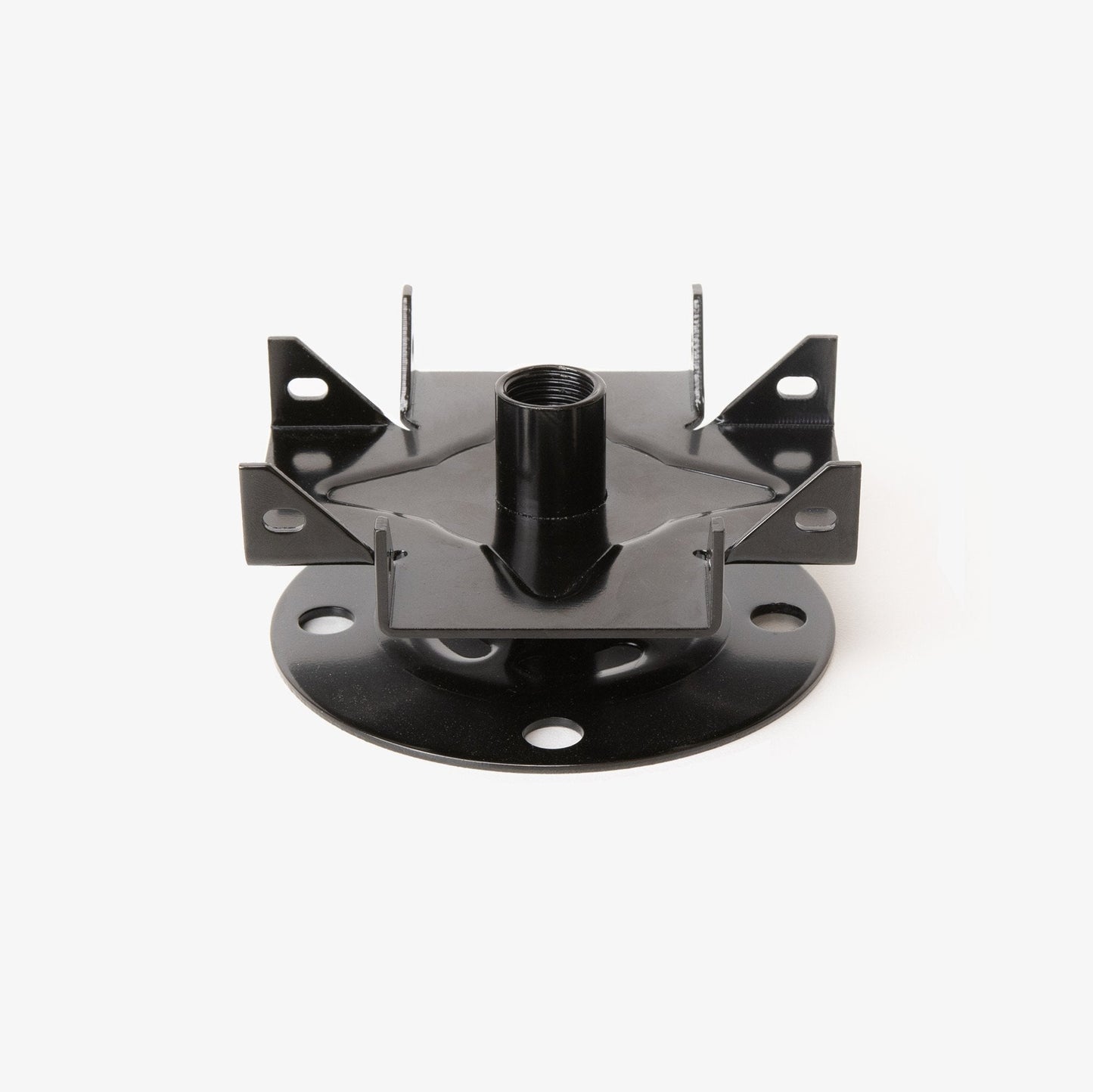

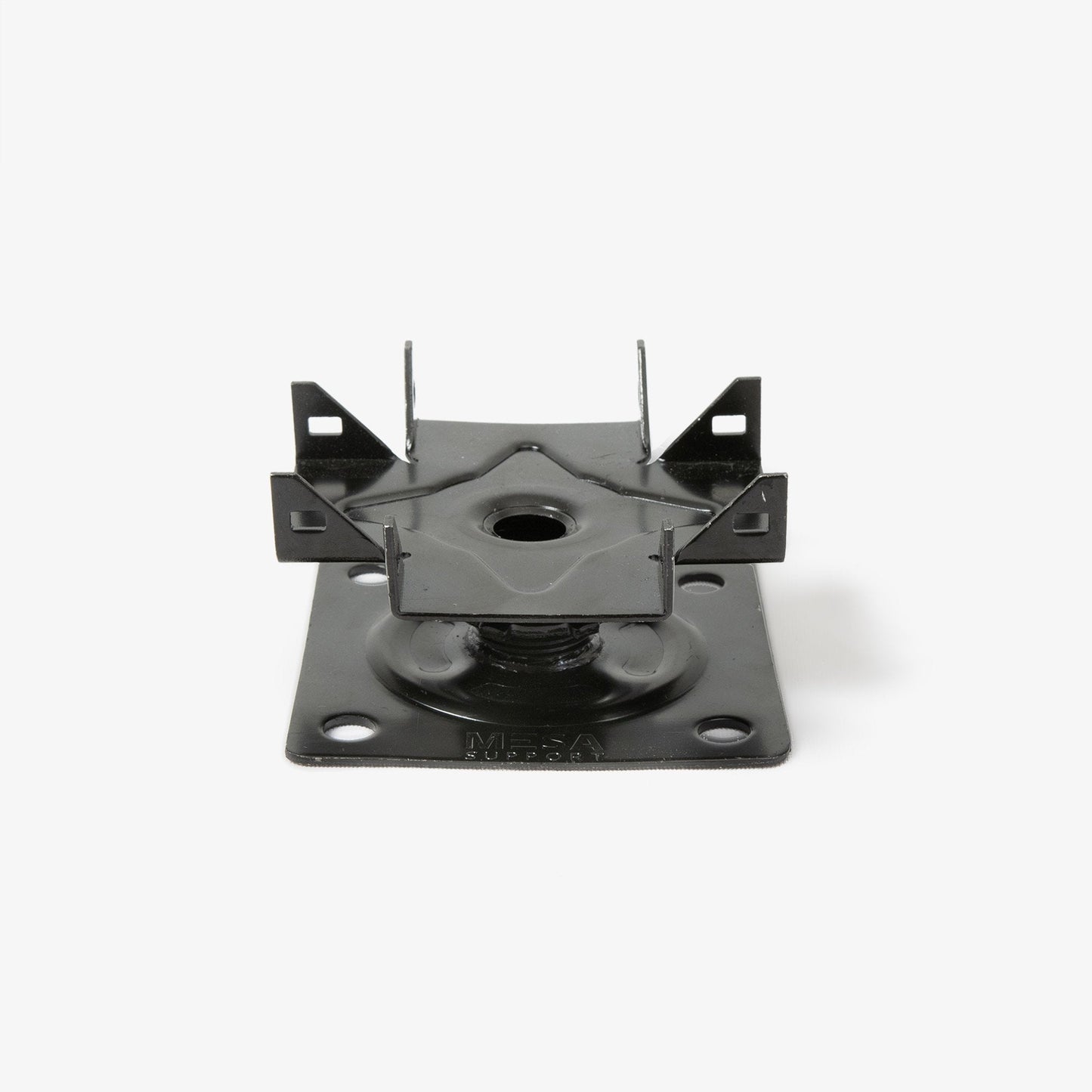

Adjustable Metal Joist Pedestals

Adjustable Metal Joist Pedestals

Size

MESA Non-Combustible Adjustable Support Pedestals are engineered to offer market leading strength for external balconies and terraces where EN13501-1 Reaction to Fire rating of A2 is required. Manufactured from electrophoretically coated steel, each pedestal can support loads up to 1000kg, providing a solid foundation that can withstand the elements and heavy foot traffic.

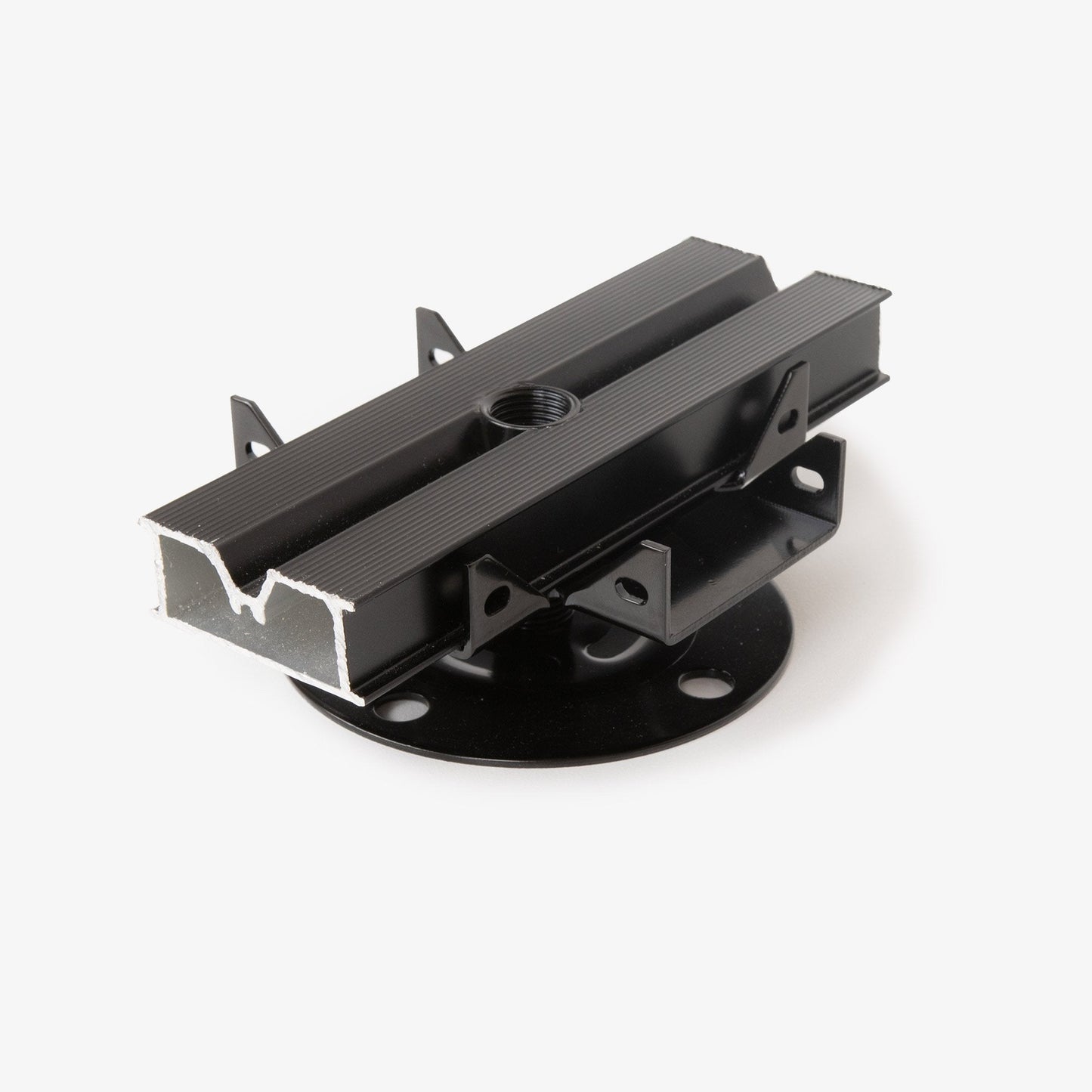

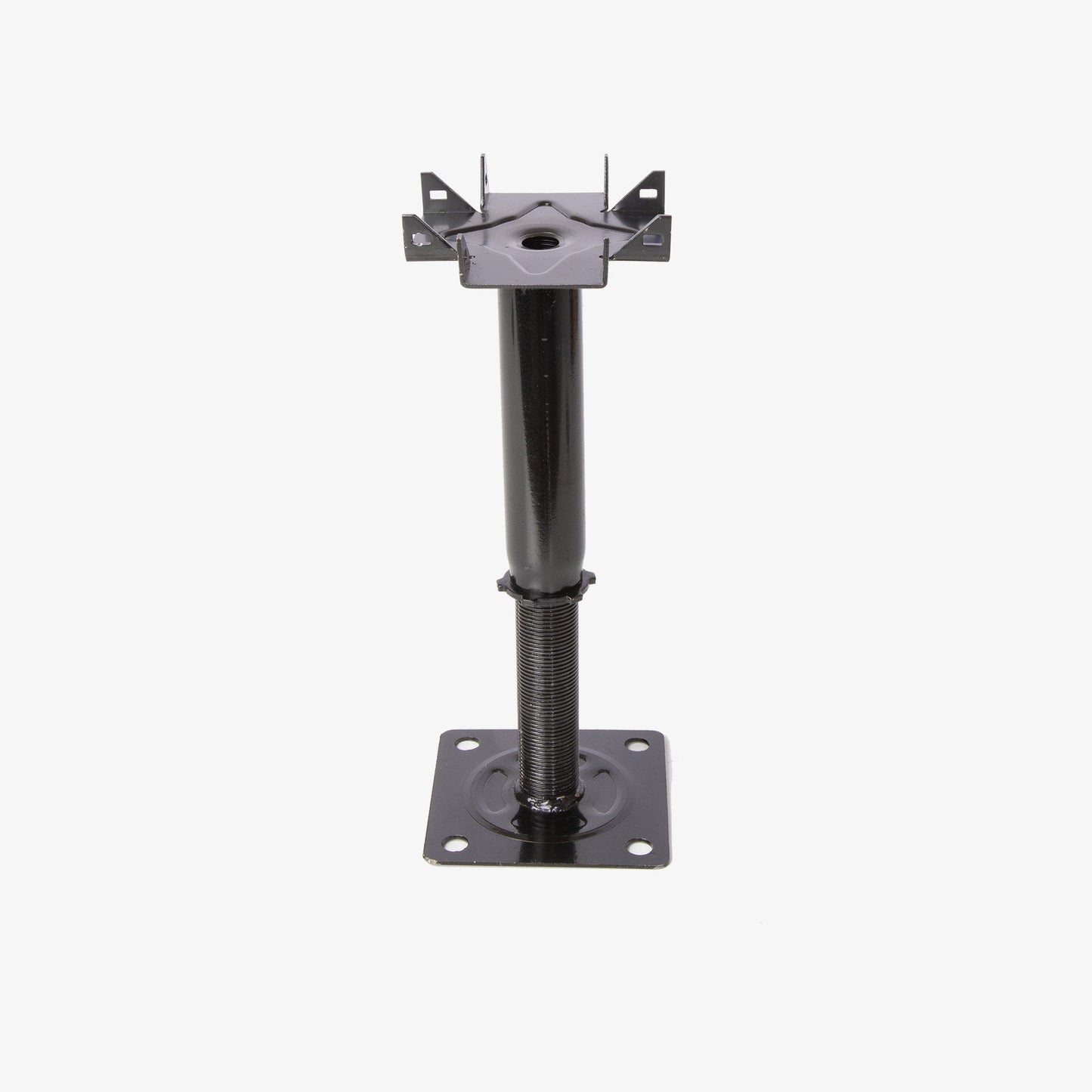

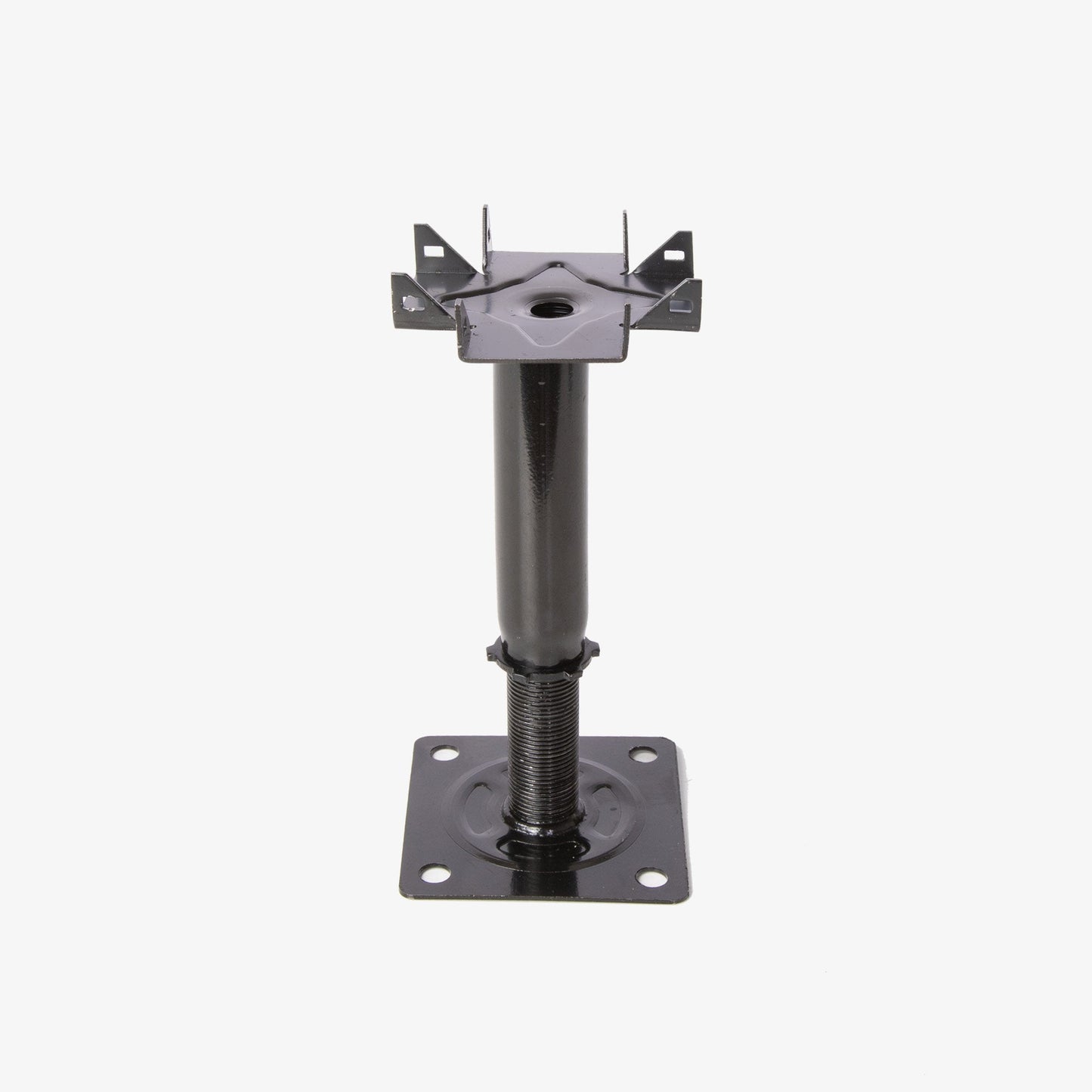

The pedestal range can support heights between 10 to 500mm and allow for rapid, tool-free height adjustments. 4 Way Joist Support Pedestals offer high versatility and compliant support for any external floating floor finish that requires support bearers up to 50mm in width. The design allows for perpendicular joists to be fixed within the support head through screw slots, which creates a interconnected sub structure that can prevent wind uplift issues.

The supports can account for slopes up to 5 degrees by fixing joists at and angle through the fixing screw slots, in addition a locking nut (where available) is in place to hold an adjusted heigh securely in place. Where a flat roof surface requires protection or for uneven surfaces a protective rubber membrane can be supplied.
