Adjustable Metal Slope Correcting Pedestals
Adjustable Metal Slope Correcting Pedestals

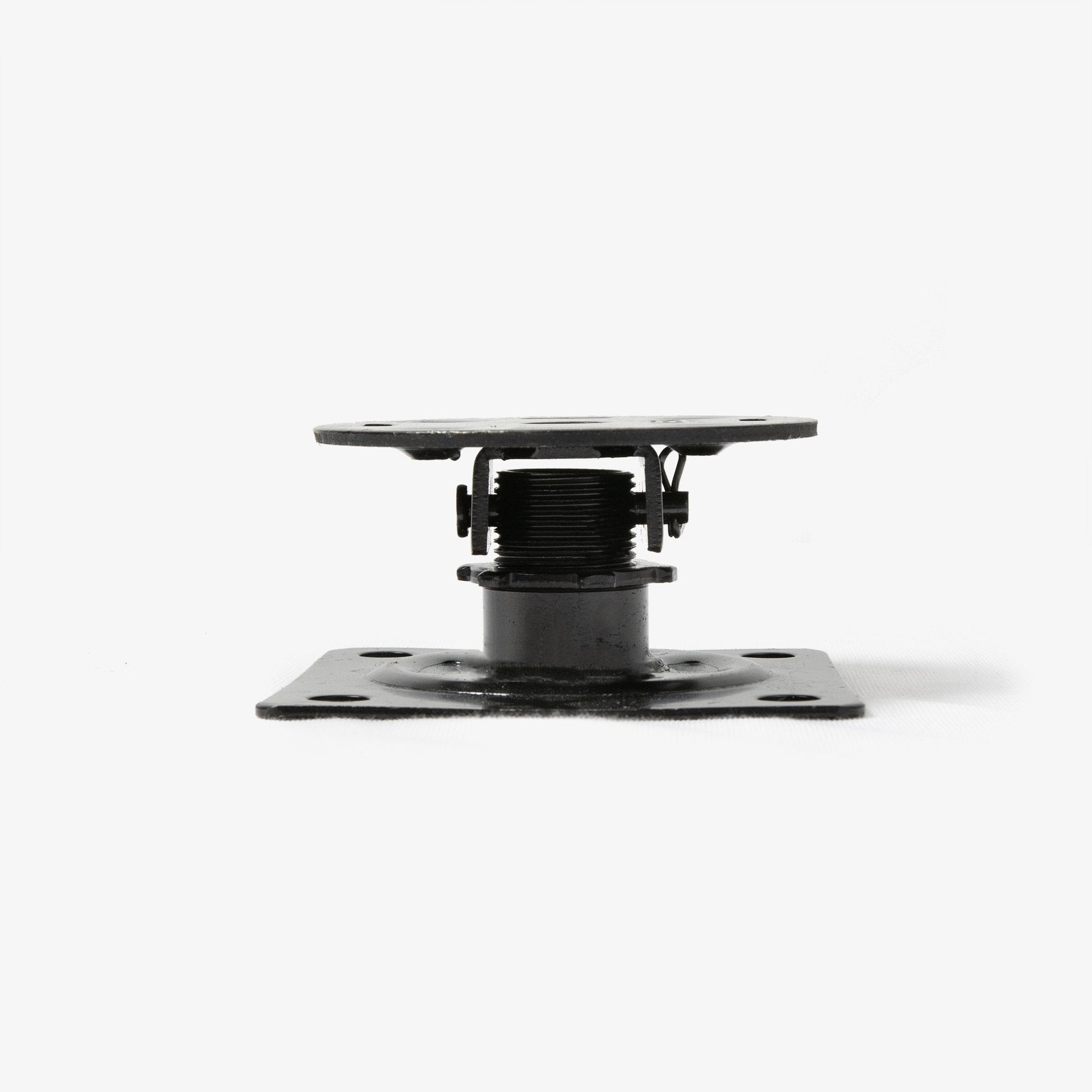

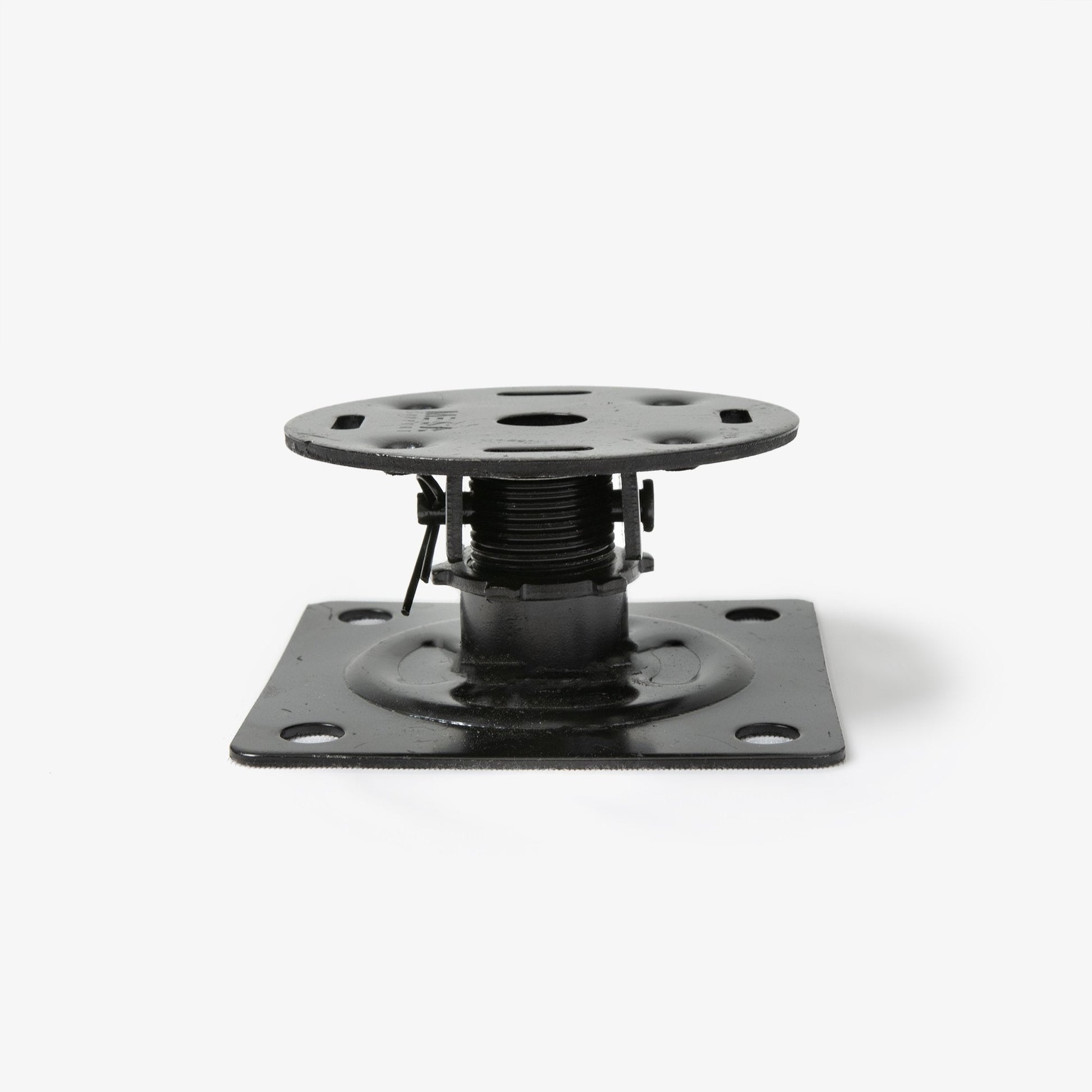

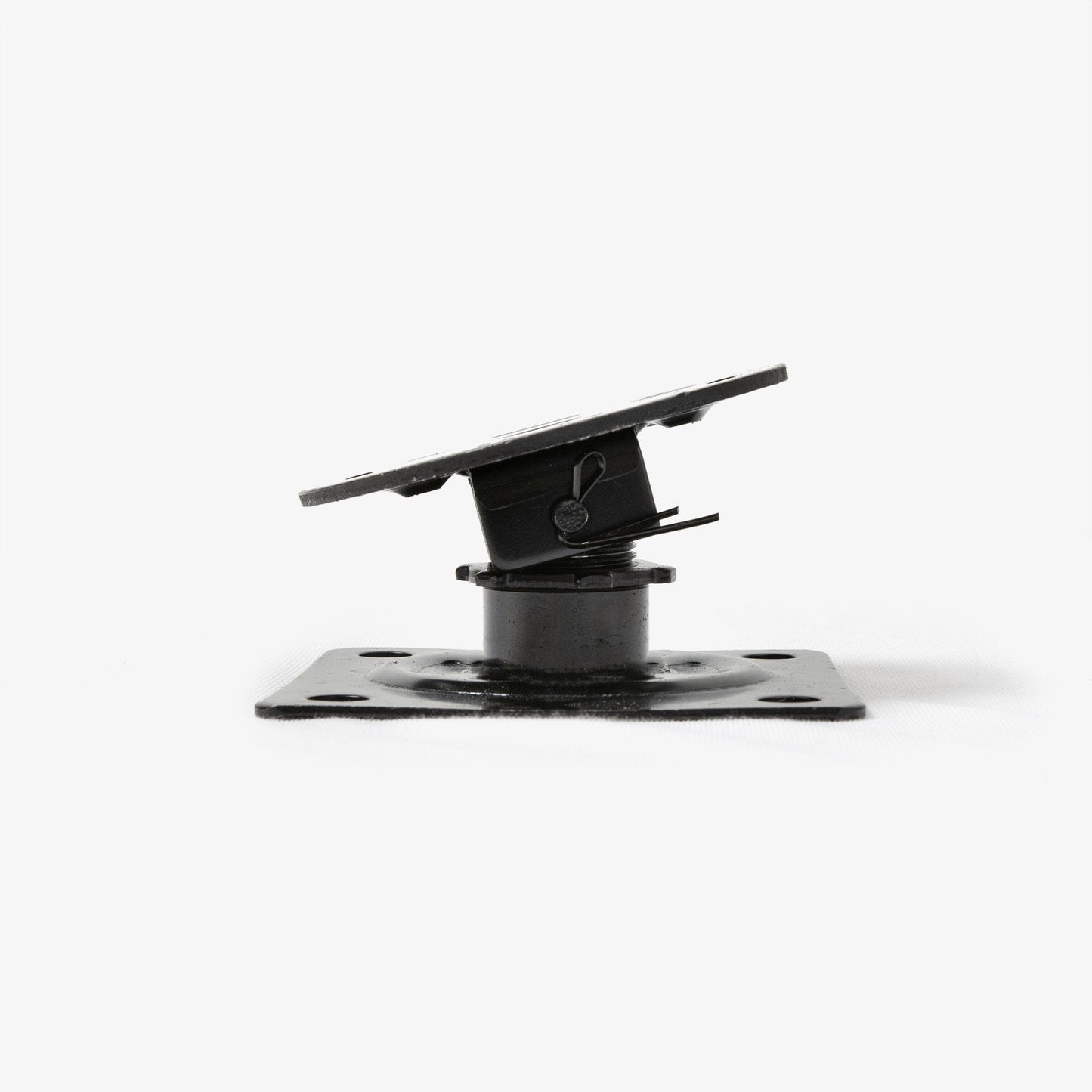

MESA Non-Combustible Adjustable Support Pedestals are engineered to offer market leading strength for external balconies and terraces where EN13501-1 Reaction to Fire rating of A2 is required. Manufactured from electrophoretically coated steel, each pedestal can support loads up to 1000kg, providing a solid foundation that can withstand the elements and heavy foot traffic. The pedestal range can support heights between 25 to 500mm and allow for rapid, tool-free height adjustments. Highly versatile Slope Correcting Paving Support Pedestals have a self-levelling head that provides strong support on slopes up to 5 degrees, the slope correction occurs on a 2 direction plain which can be set to the direction of the slope and a locking nut can fix the slope correction in place to prevent any unwanted paver movement when pressure is applied to paver corners. Once heigh of the support is set by rotating the base, add the 4 or 2 way spacing gasket on top of the paving support pedestals to align pavers, with a choice between 3.5 and 5mm spacings. Where a flat roof surface requires protection or for uneven surfaces a protective rubber membrane can be supplied.
