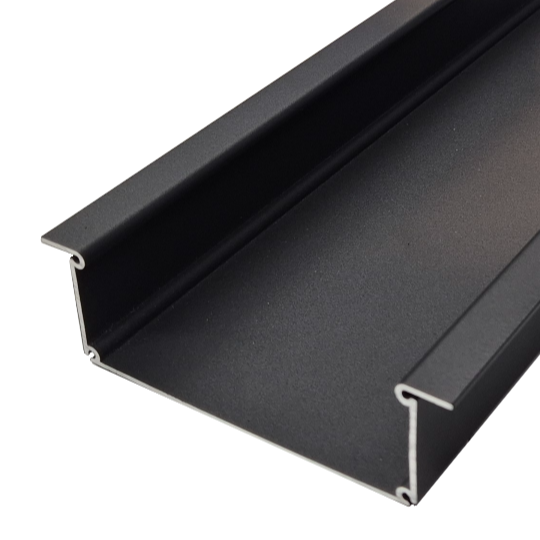

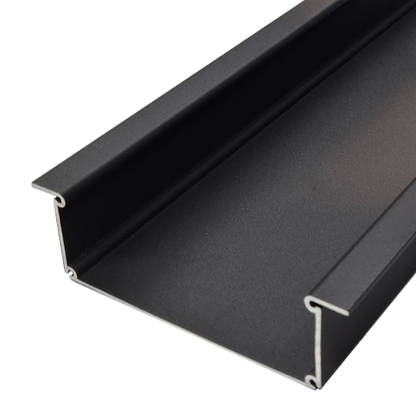

Hopper Drainage Channel
Hopper Drainage Channel
The Hopper Drainage Channel allows for a high flow rate of water to be collected at any point on the decking surface with space for drainage outlets in the side or base.
The drainage channel can accommodate a standard 78mm pipe outlet in its base and is compatible with Low-Fix and Strong-Span decking systems. The profile is engineered from T6 6063 aluminium and coated with durable, textured Qualicoat Seaside standard powder coating.
- Class A2 to EN 13501-1
- Qualicoat certified powder coat
- Legally compliant to BS:8579
Specifications
-
Profile: 134 x 40 mm
Length: 4000 mm (or bespoke up to 6m)
Weight: 0.956 kg/m
Fixtures: MESA® Self-drilling Countersunk Screws
-
Reaction to Fire: A2 s1 d0 and A2fl s1
3-Point Max Span:
2-Point Max Span:
Max Cantilever:
*All spans tested to 2kN point load
-
PTV Slip Resistance:
Micro Roughness:
Finish: Qualicoat up to Seaside Level 1
Warranty: 30 years
