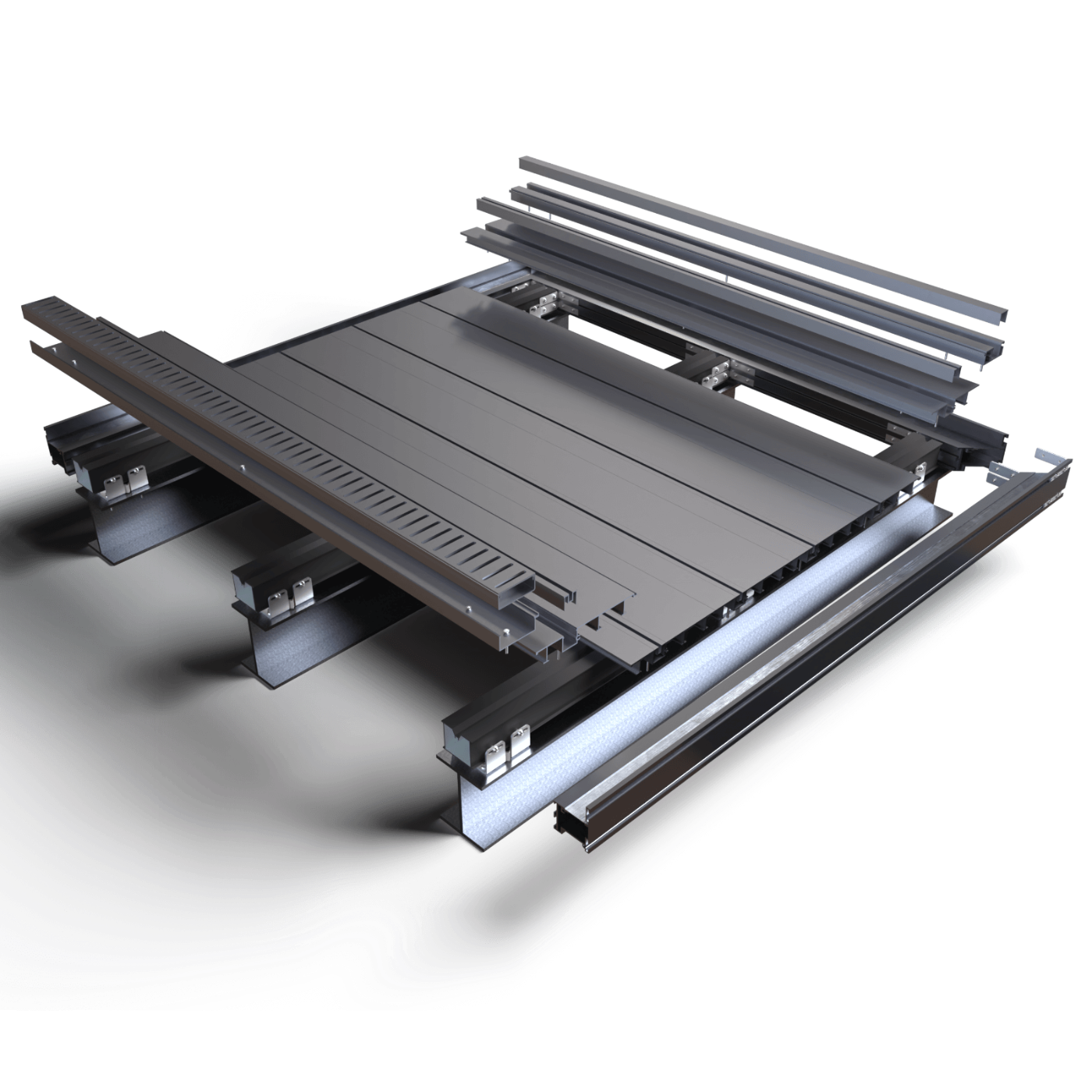

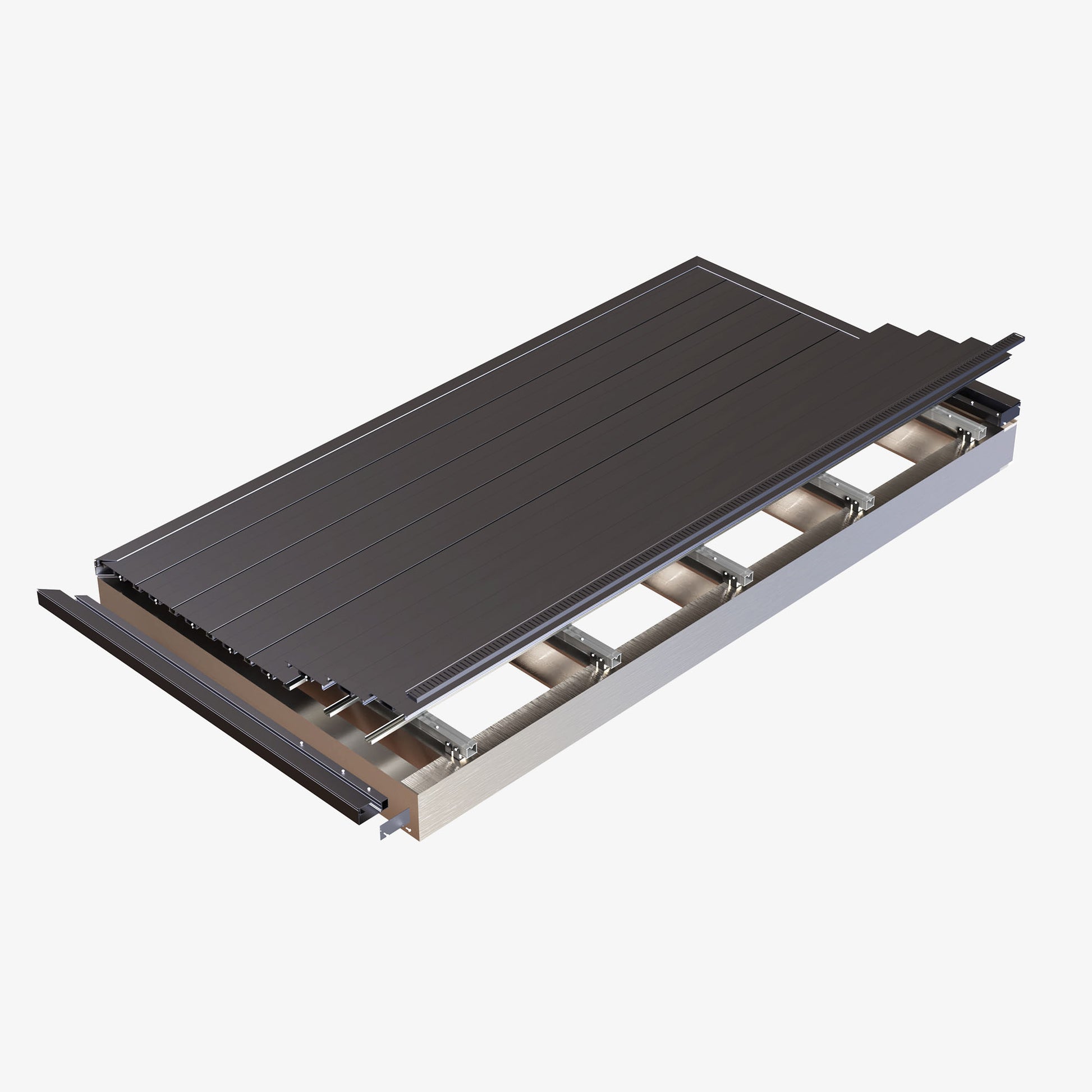

Sloped Open Steel Systems

Sloped Open Steel Systems

For balconies requiring a sloped water collecting surface fixed onto flat balcony steels, fully compliant to BS 8579.

Patented support brackets fix directly to steels and provide a great level of control over the build-up height and drainage slope.  They are used in conjunction with non-combustible aluminium bearers and can create sloped surfaces from 45mm build up height.

A sloped balcony surface is less likely to have standing water or ice thereby providing a safer surface for vulnerable customers.

View full details

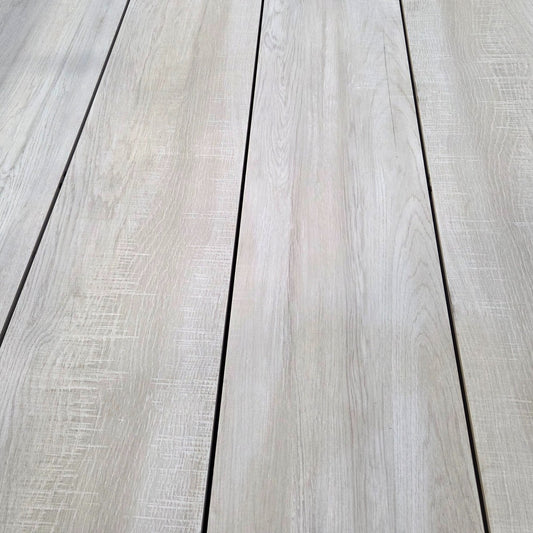

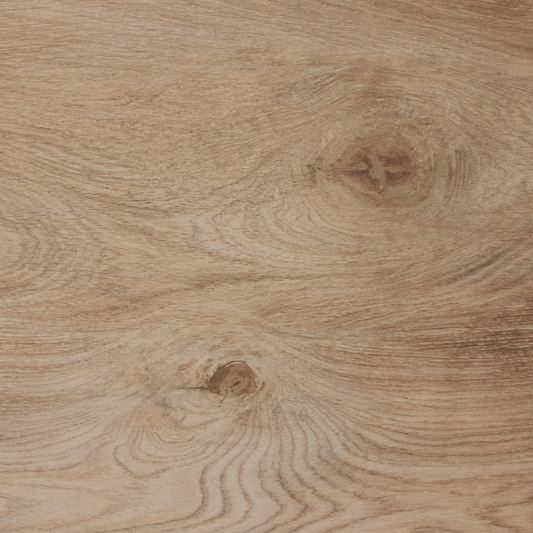

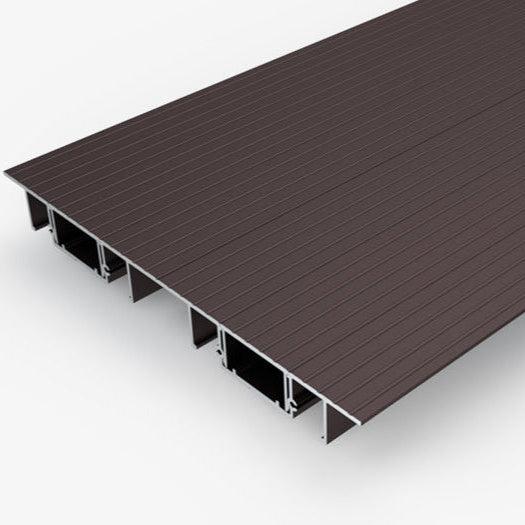

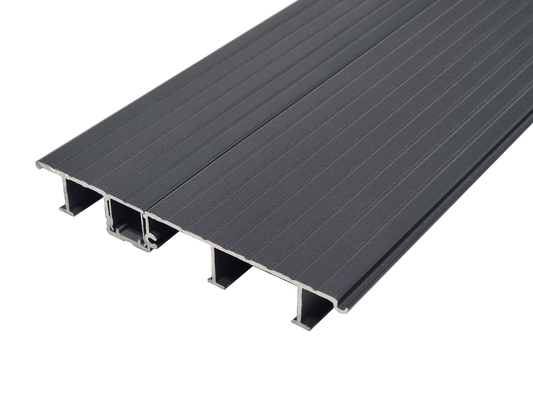

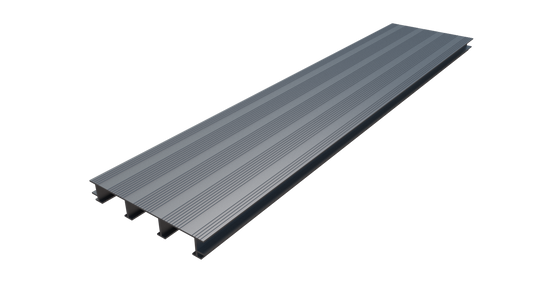

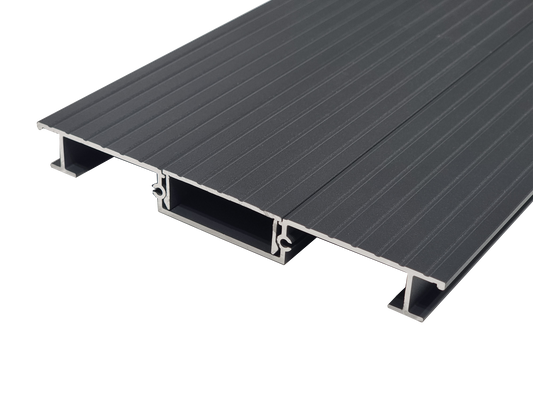

Compatible Surface Finishes

Explore the variety of finishes designed for durability, style, and seamless integration with our systems.

1 8

Key Components

Explore the vital building blocks that ensure reliability and longevity in every installation.

1 5

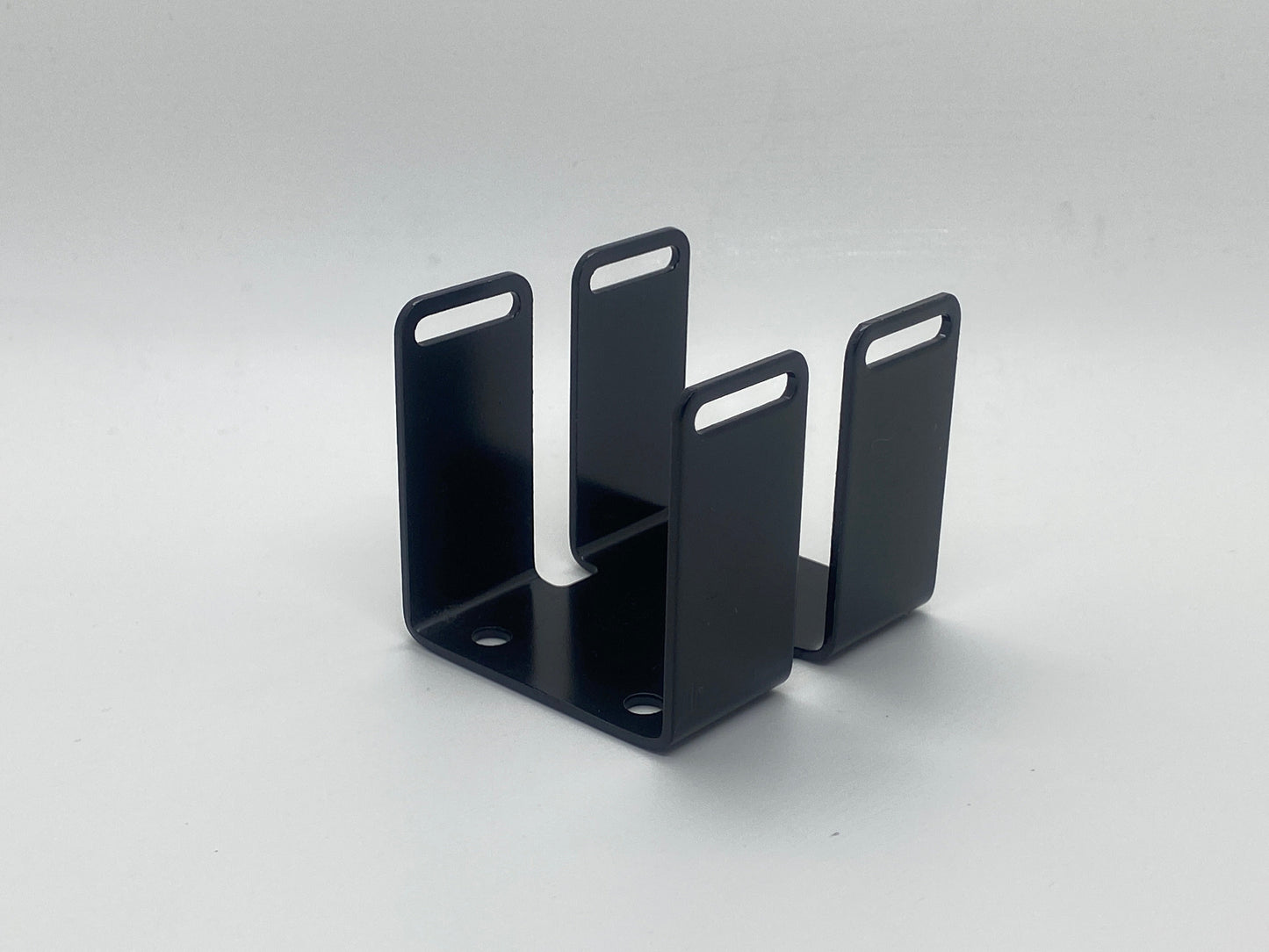

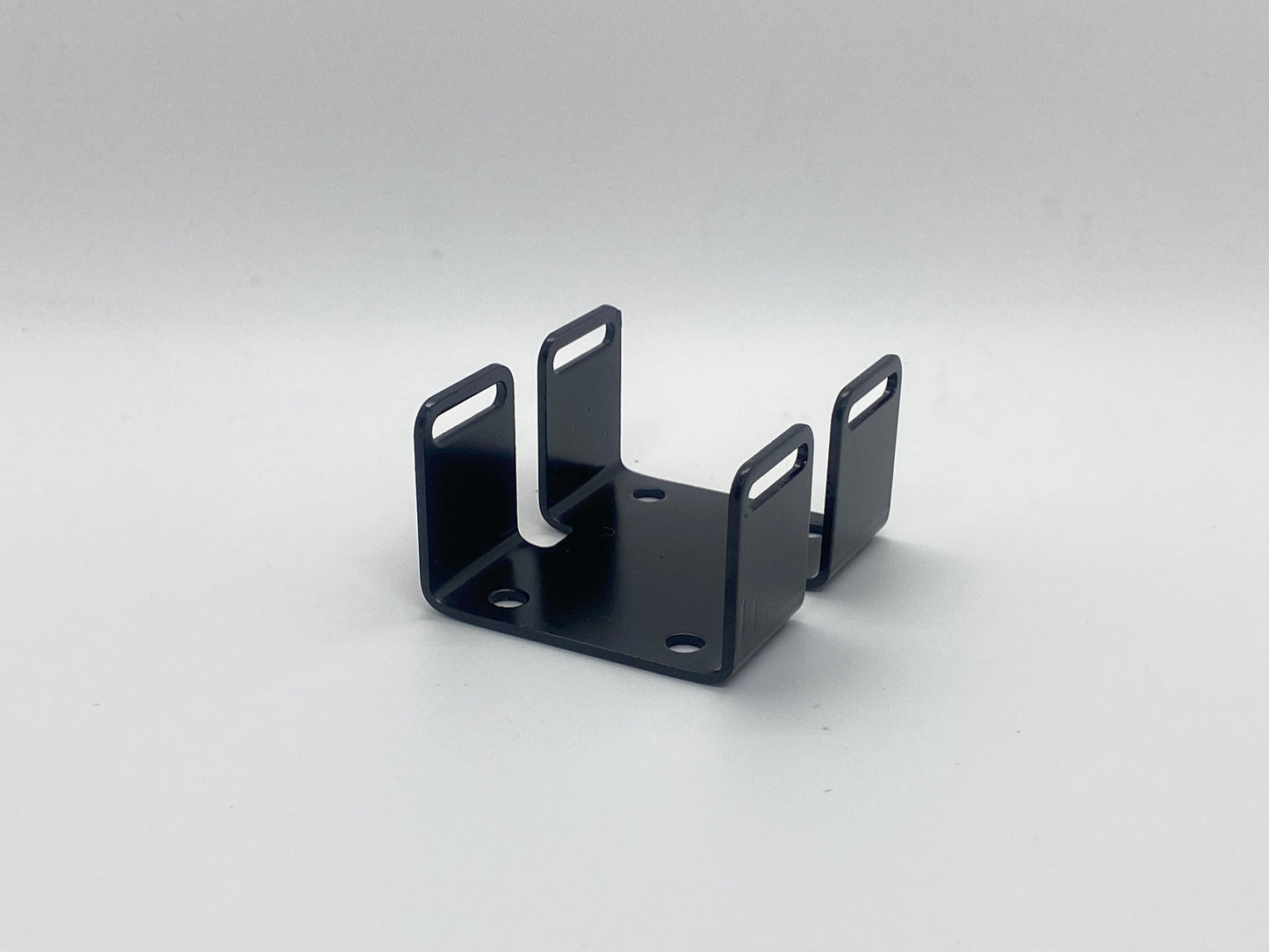

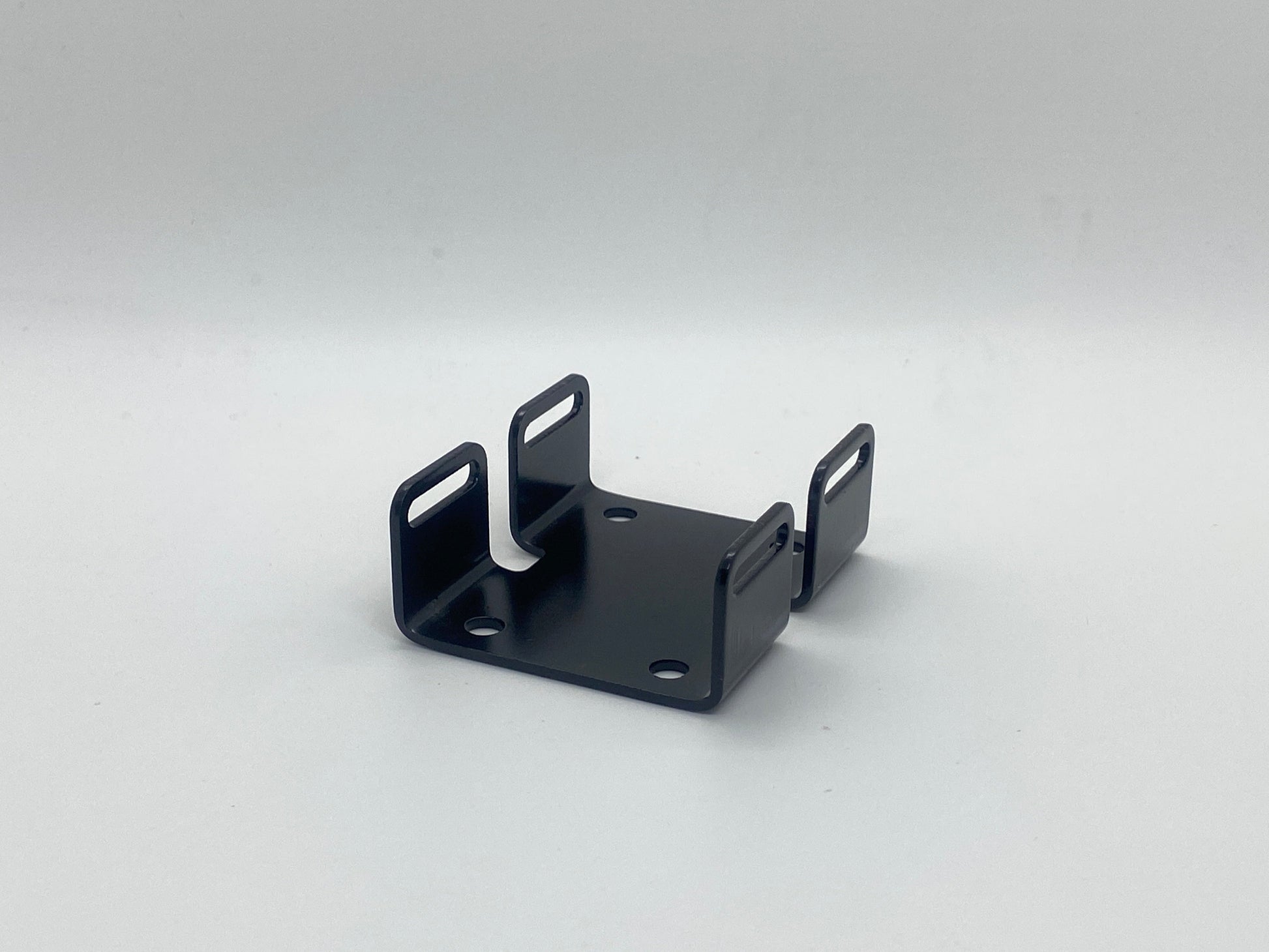

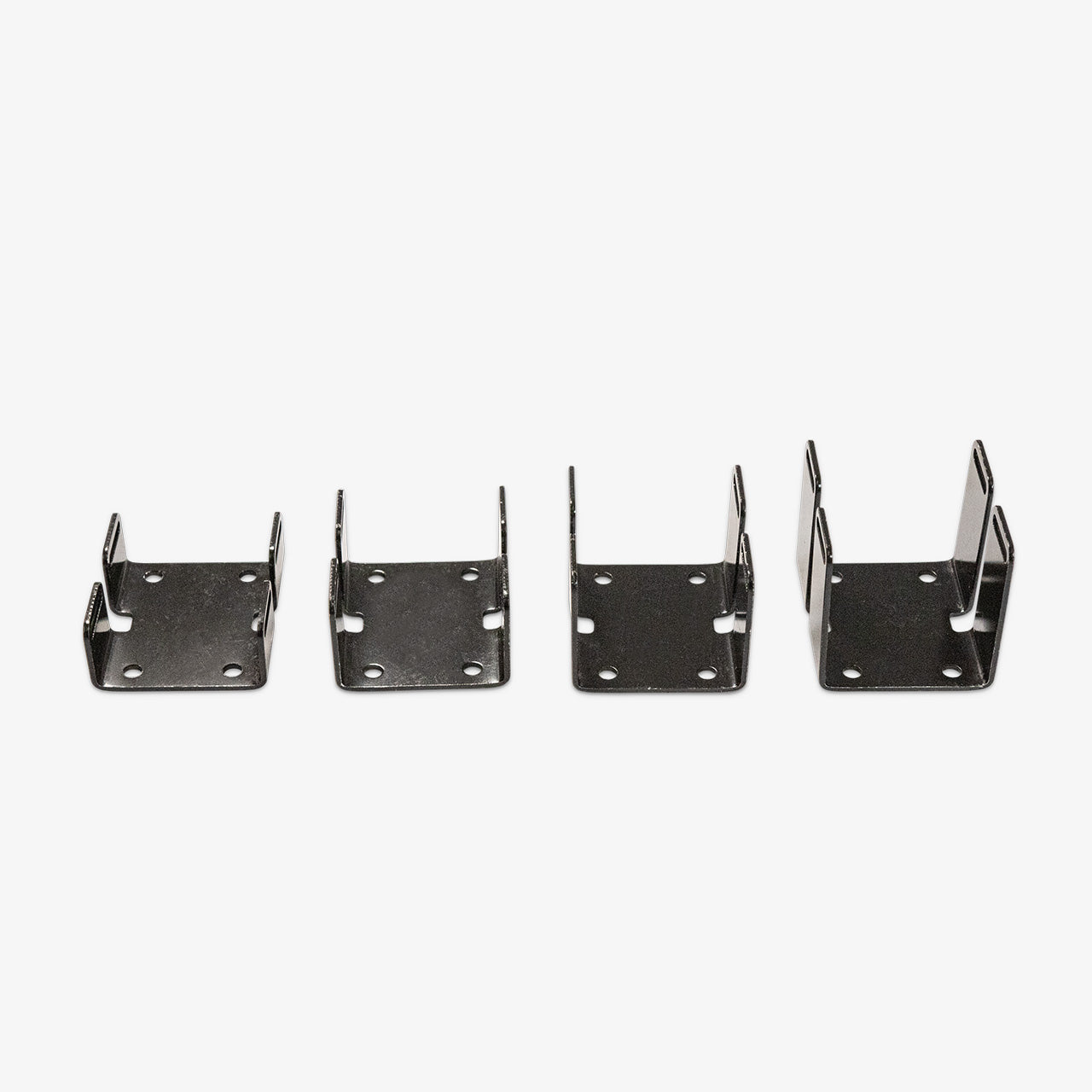

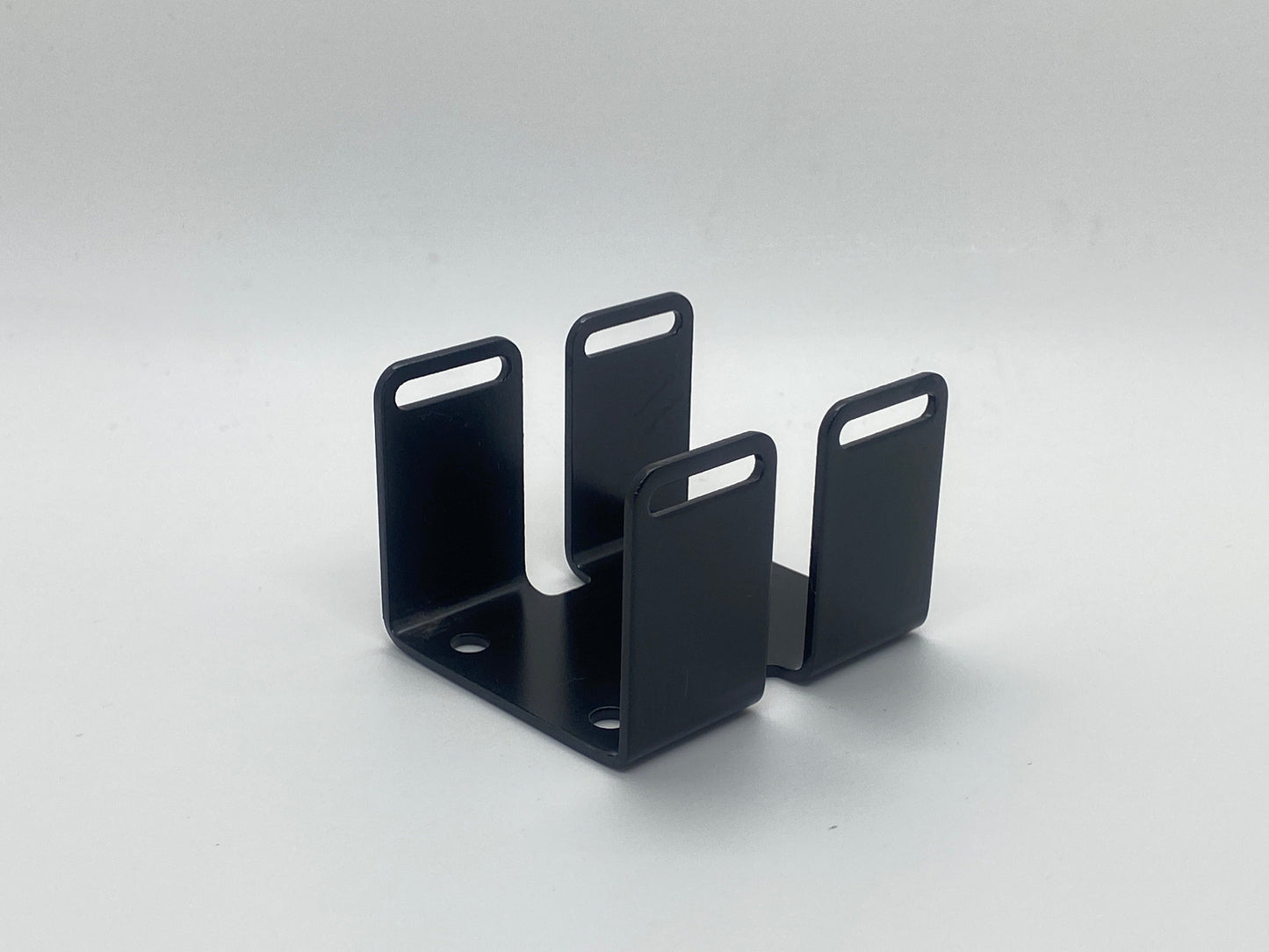

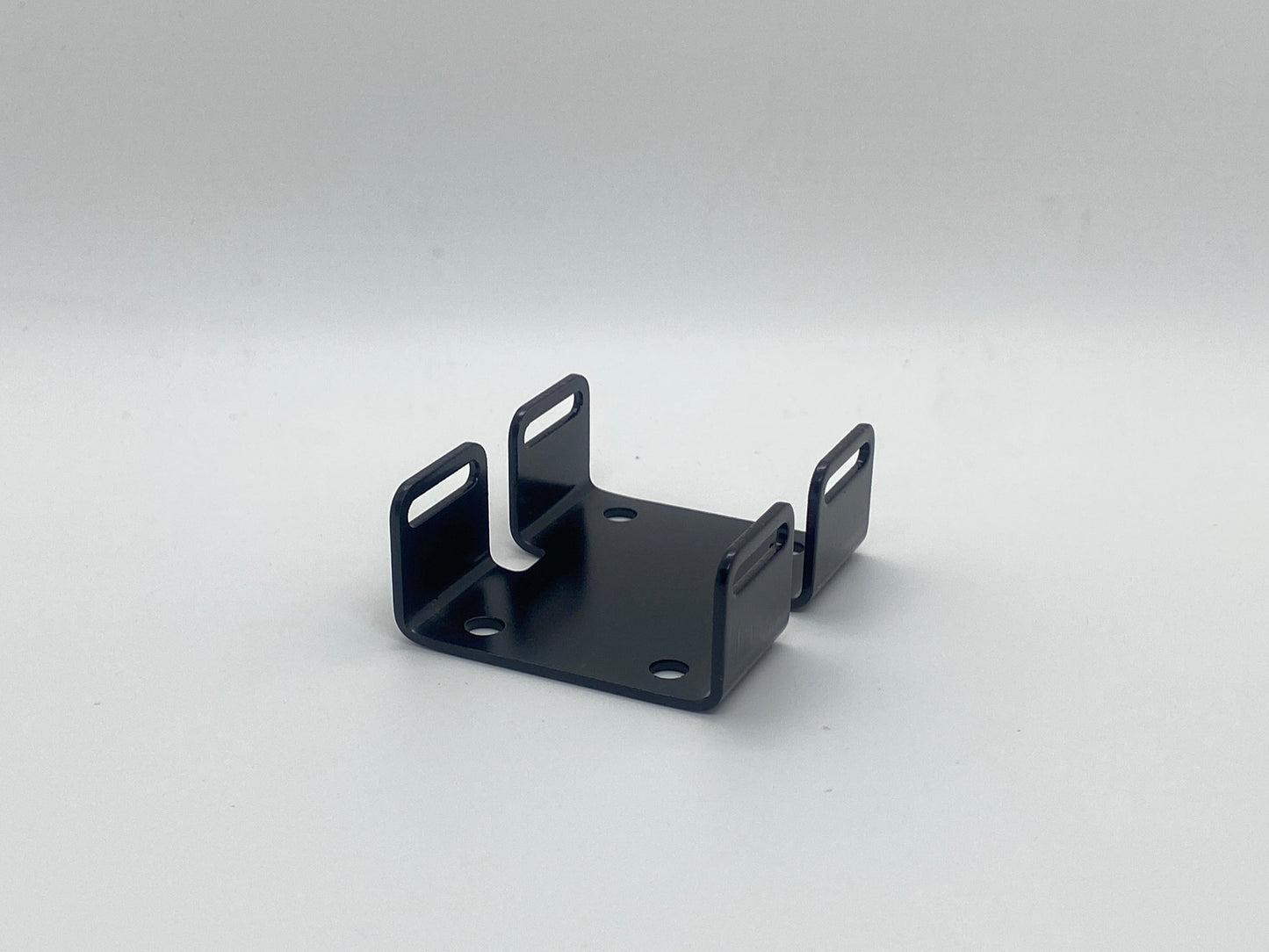

Shim Joist Brackets

Shim Joist Brackets provide precise levelling and secure support for support bearers on structural steels with a unique patented solution to save precious installation time. The brackets, which come in 4 height sizes, are fixed down to steels though 6mm holes in the bracket base and bearers are secured through slotted holes in the bracket sides. To create or take account of a desired surface slope, bearers can be fixed at an angle in the brackets, and saving installation time innovative sloped shims can be sat inside the brackets to achieve various heights across the bearer length, reducing the likelihood of having to adjust and re-screw. The brackets are engineered from electrophoretically coated steel ensuring strength and achieving EN13501-1 Reaction to Fire rating of A2.

View full details
1 3

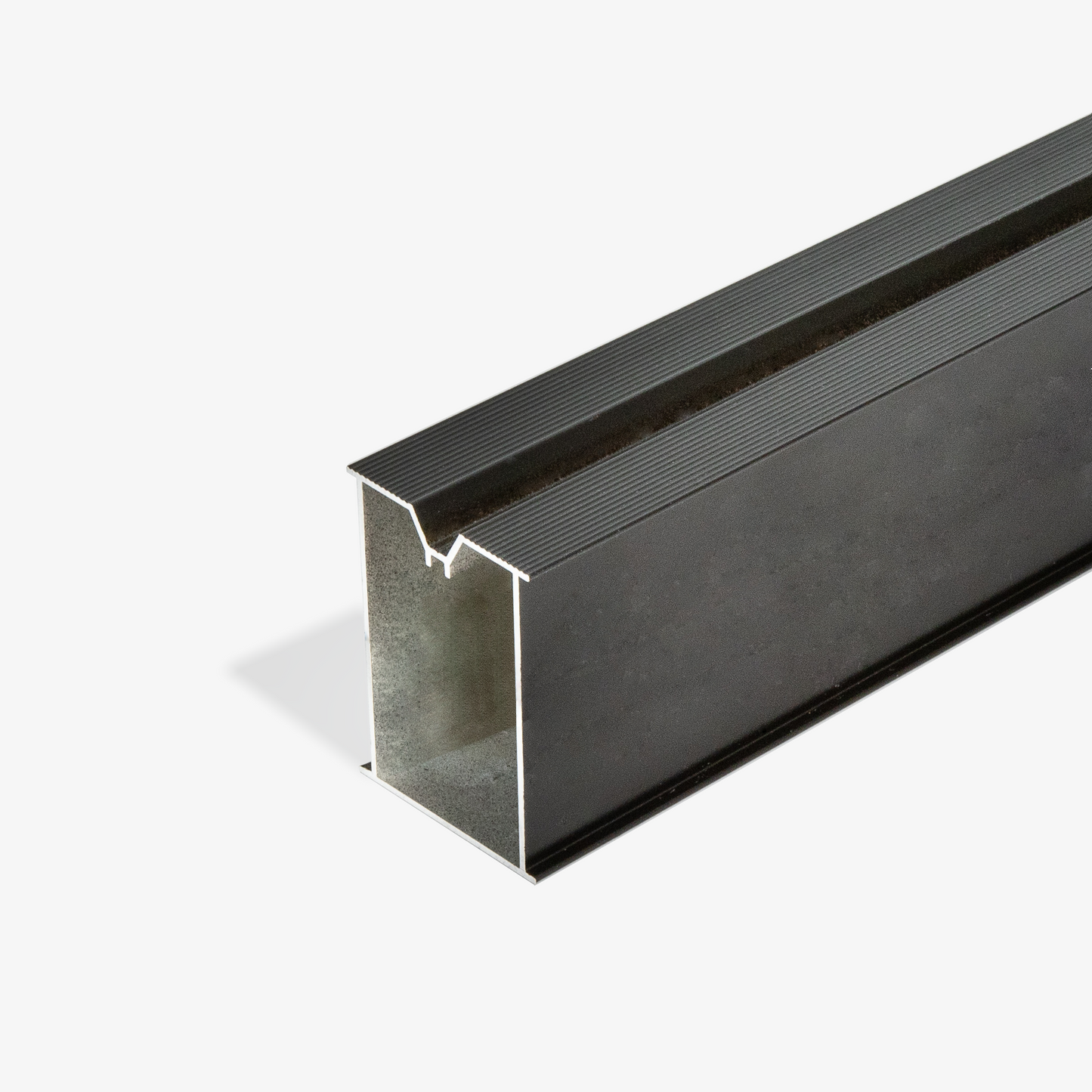

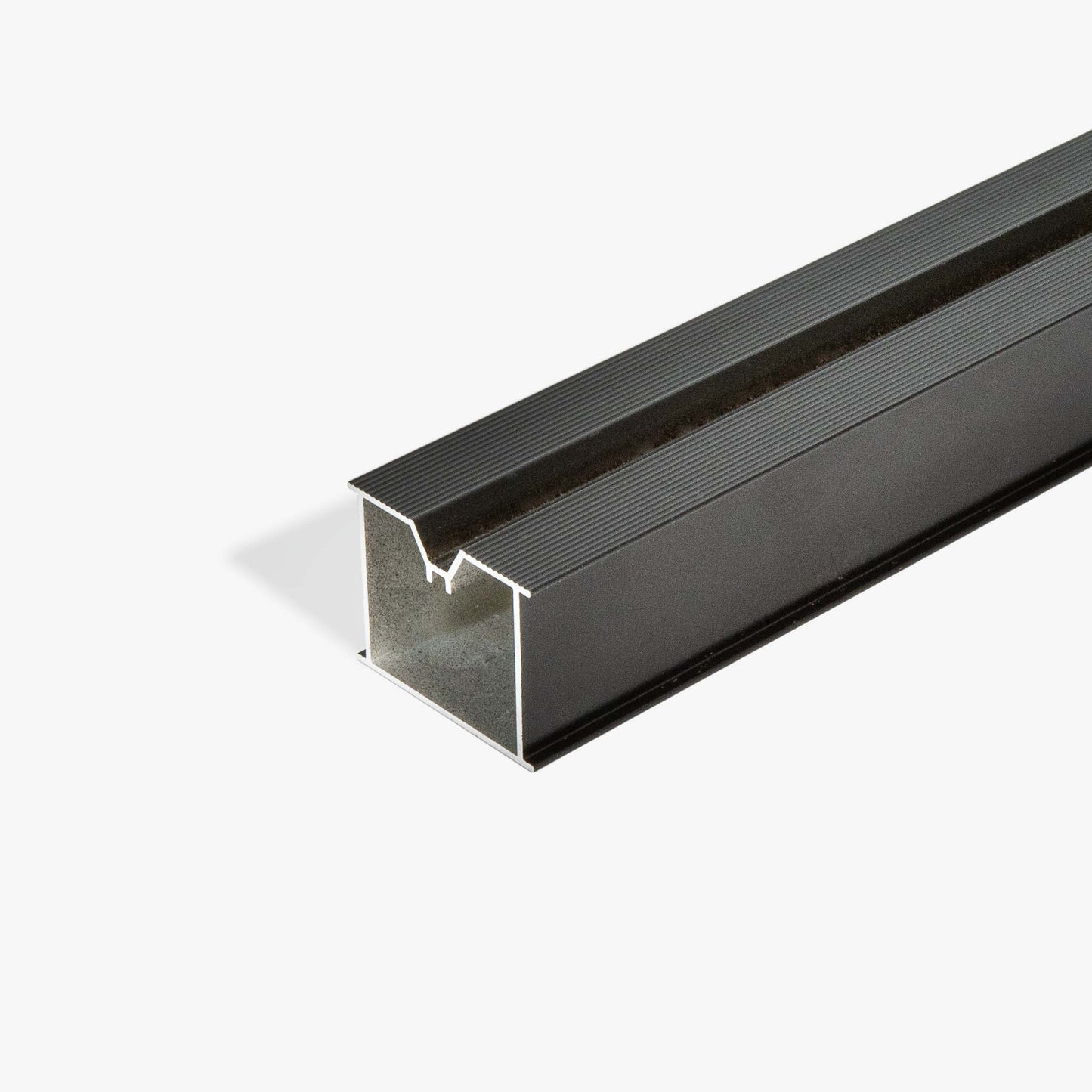

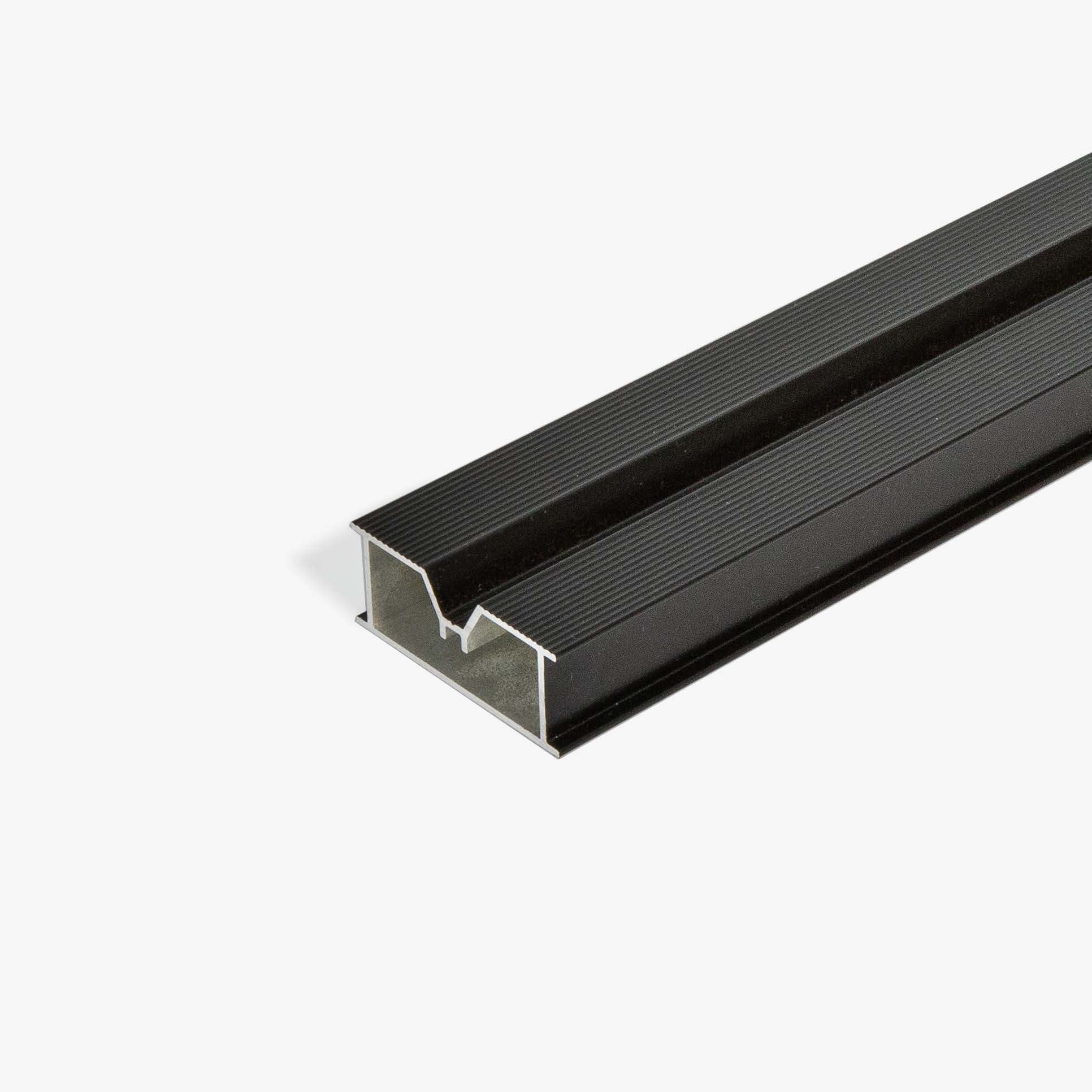

Aluminium Joists

Aluminium Bearers provide strong and compliant support for non-combustible substructure, engineered from 6063 T6 Aluminium the beams have a Class A2 Rating to EN13501-1 Reaction to Fire. The 3.6m bearer lengths come in 20, 40 and 80mm heights to suit most build up requirements; they benefit from an I beam design for superior strength and countersunk top allowing for flush fixing to steels using countersunk bolts. The bearers are designed to work with MESA non-combustible adjustable supports for flat roof installations or the patented joist support brackets for fixing directly onto steels and can create the perfect drainage slope in compliance with BS 8579. The beams are coated in durable black Qualicoat standard powder coating to reduce substructure visibility from all angles.

View full details
1 1

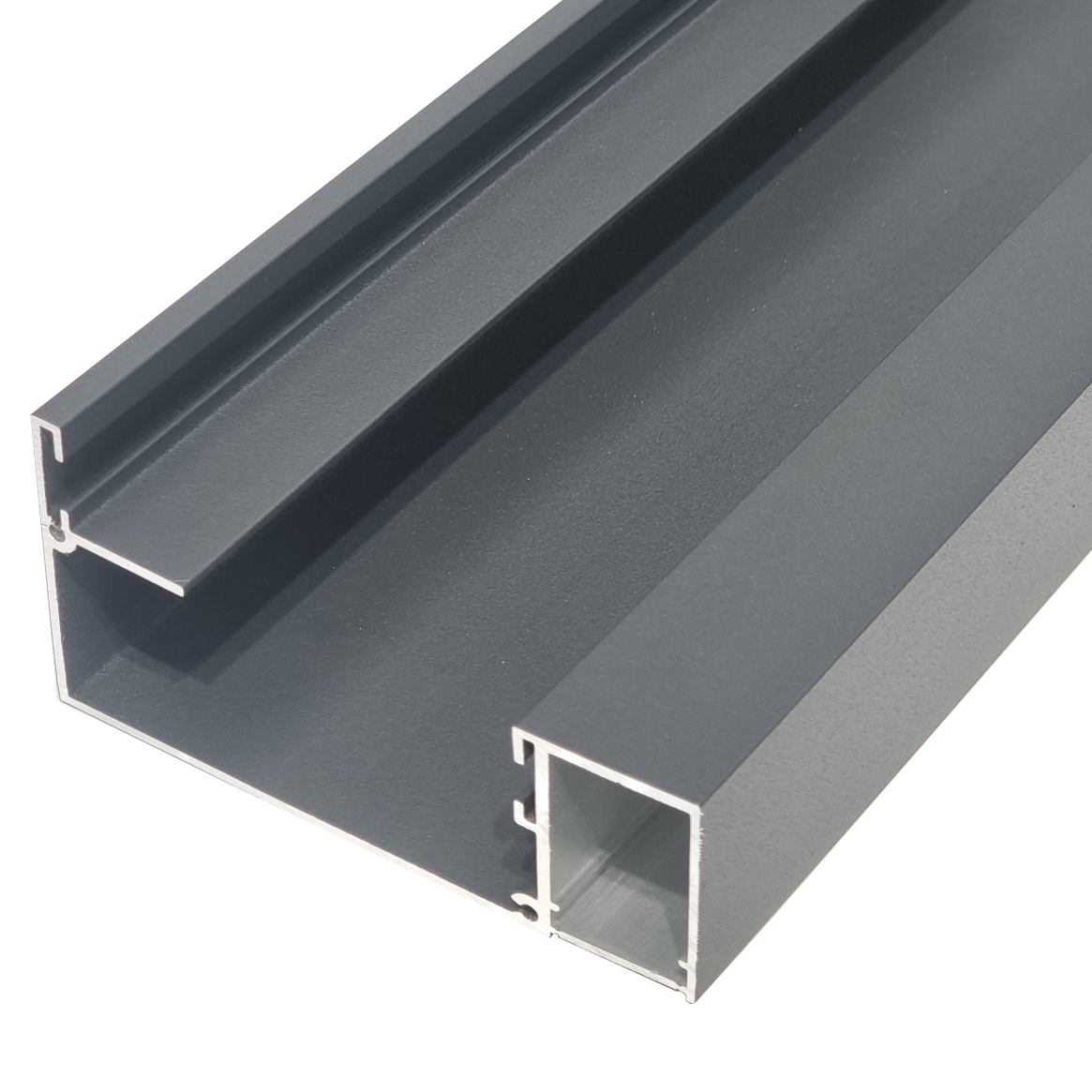

Border Drainage Channel

The complete balcony border drainage system allows for water collected on the balcony surface to be funnelled and directed to any point on the balcony in compliance with BS 8579. The drainage channel has integrated slots which hold purpose designed brackets to secure sections together without the need to screw through the channel to improve water-tightness. Drainage outlets can be installed both in the bottom of the channel or where balcony steels don't allow access to bottom drainage, outlets can be installed the side of the channel using a captive nut design, they also come with a removable grate designed to prevent debris build up. The profile is engineered from T6 6063 aluminium and coated with durable, textured Qualicoat standard powder coating, up to Seaside Level 2.

View full details
