Low-Fix Aluminium Decking
Low-Fix Aluminium Decking

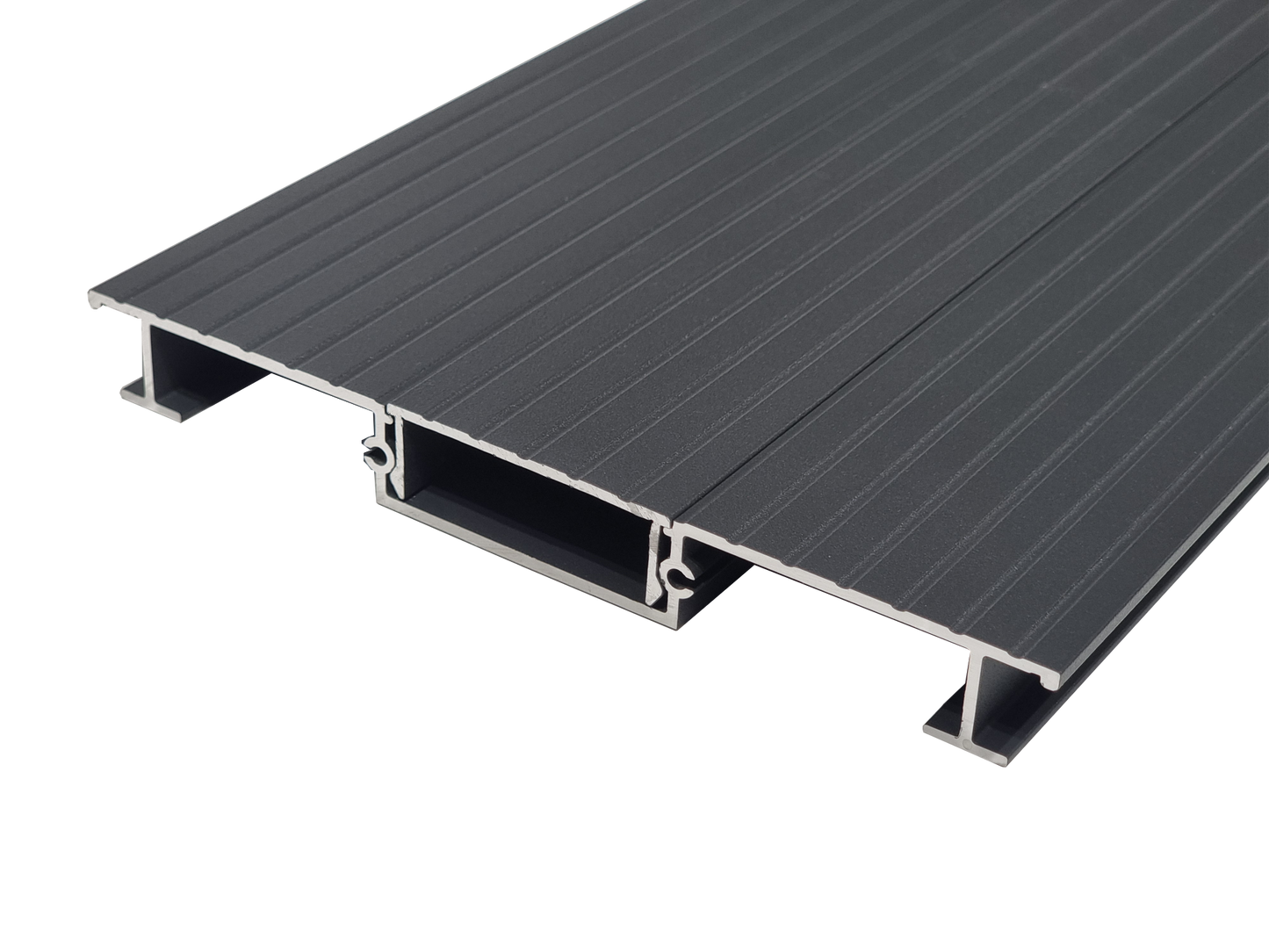

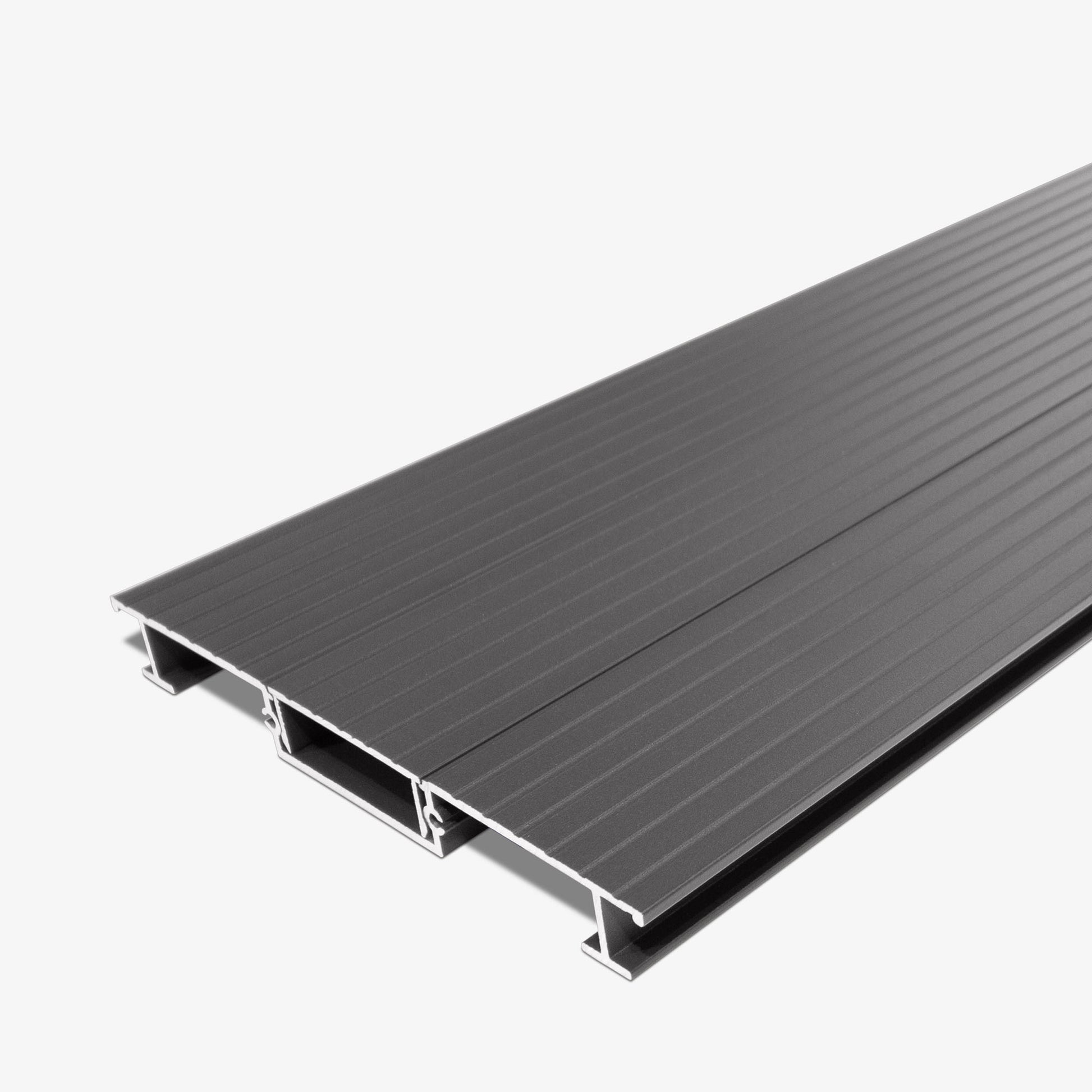

Low Fix Aluminium Decking is engineered specifically for commercial applications where height restrictions and support spans are critical. This innovative 200mm wide deck board, engineered from T6 6063 aluminium, allows for low-clearance applications with just 21mm height, whilst maintaining a maximum 800mm span between support bearers.

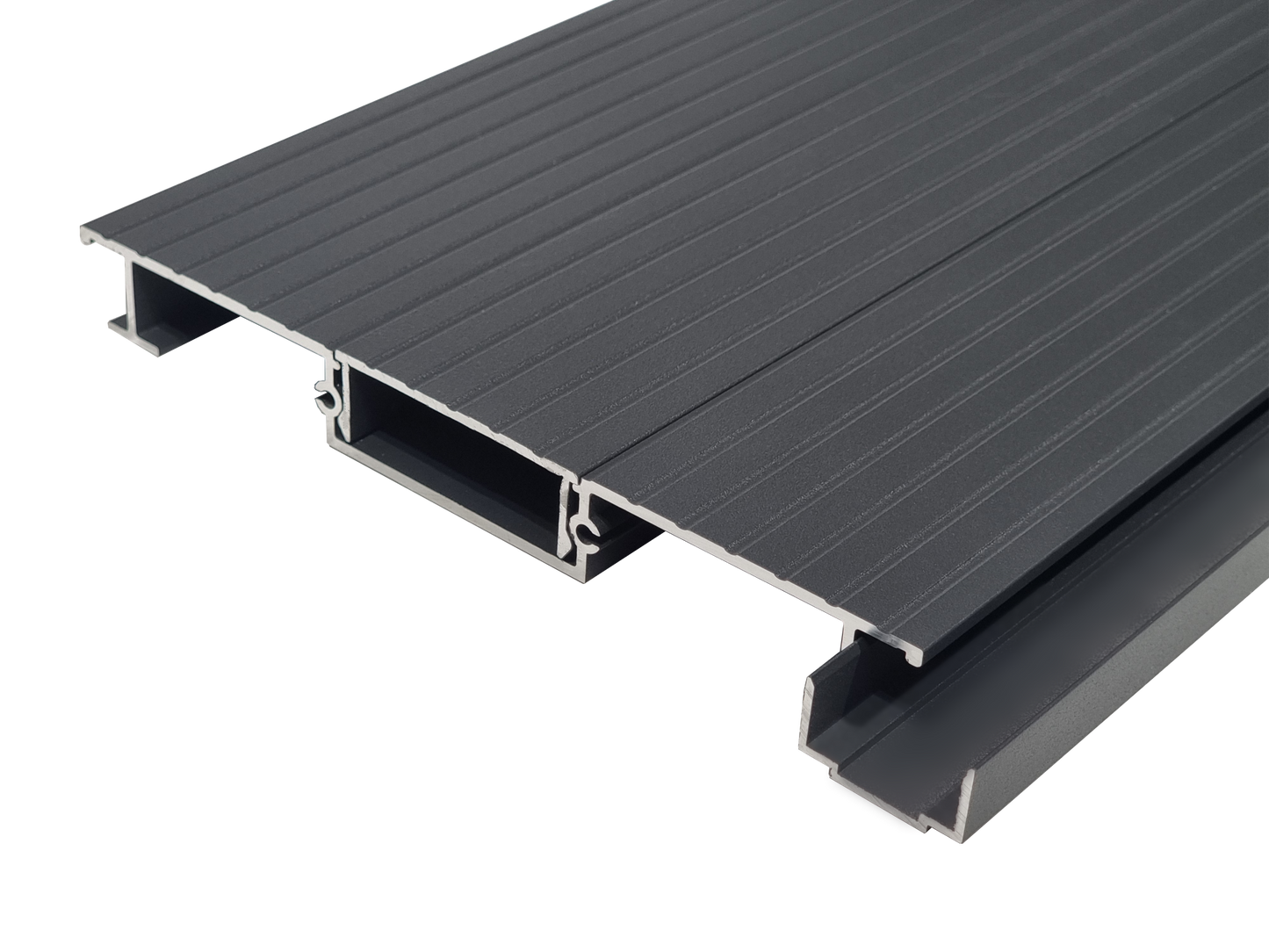

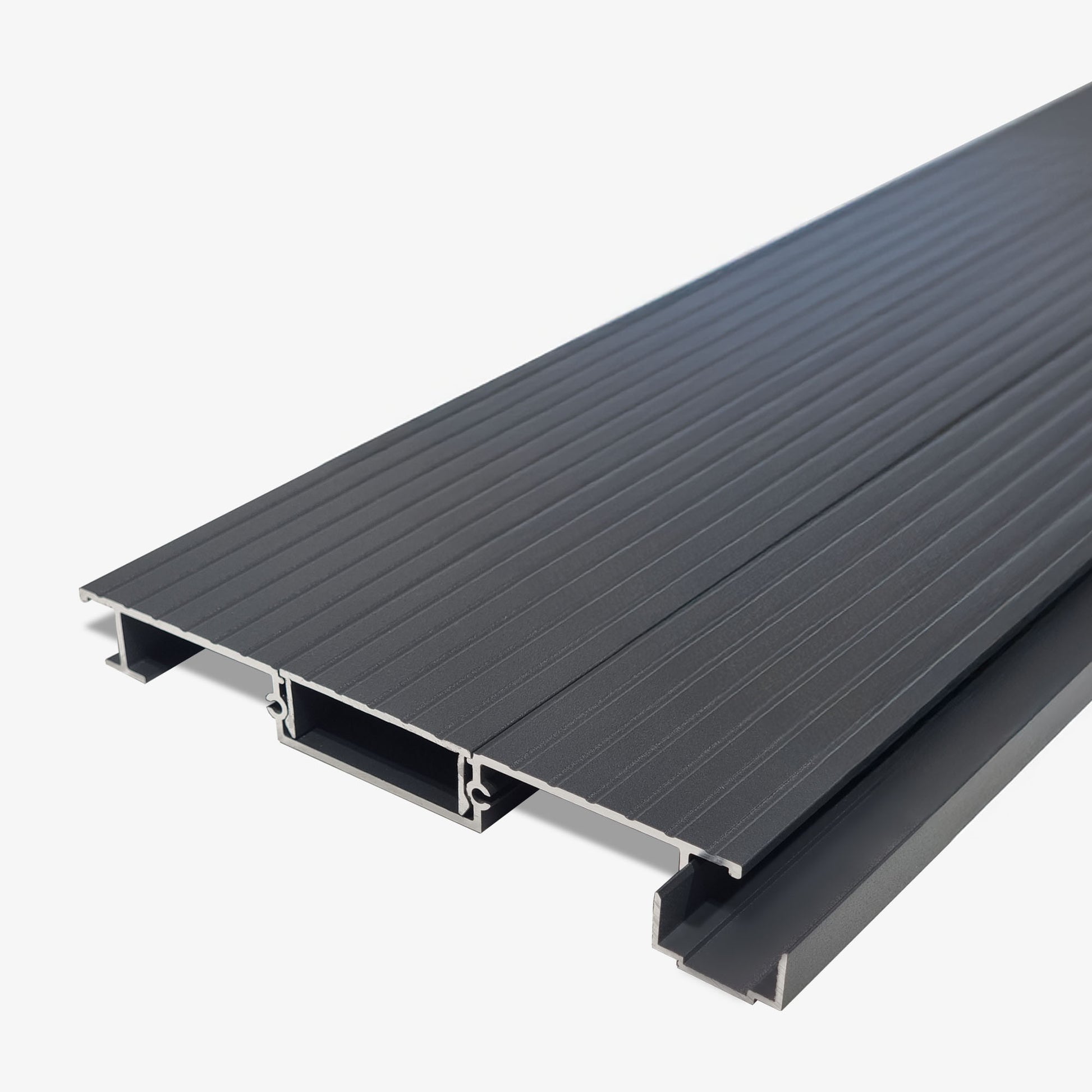

Each board has a hidden fixing channel which can be used to fix directly to steels and is wide enough to accommodate a 55mm eyelet for craning the balcony into position, saving the need to re-install boards at height. In addition the boards can be converted to a surface draining layer with the addition of purpose designed drainage channels between boards, which still allows a single board to be lifted anywhere on the decking surface if required.

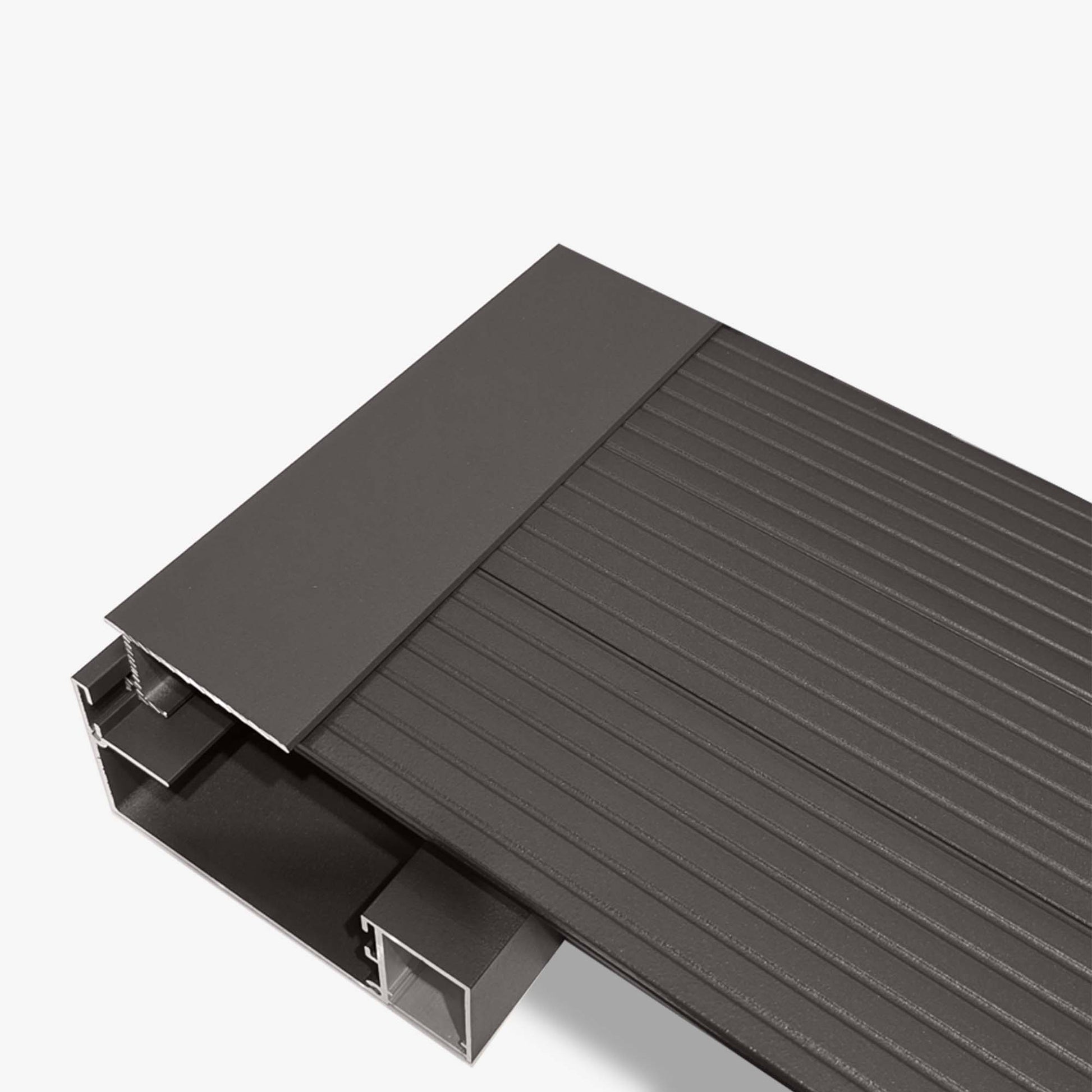

The range comes complete with decorative threshold drain, full boarder drainage system or subsurface drainage to suit any build type and direct water to any part of the balcony. The boards are supplied in lengths up to 6m and are coated with durable, slip resistant Qualicoat standard powder coating, up to Seaside Level 2, with the option of any RAL colour.
- Class A2 to EN 13501-1
- Qualicoat certified powder coat
- Legally compliant to BS:8579
Contact
Specifications
-
Profile: 200 x 21 mm
Length: 3900, 6000 mm (or bespoke up to 6m)
Weight: 9.57 kg/m² (including insert)
Fixtures: MESA® Self-drilling Countersunk Screws
-
Reaction to Fire: A2 s1 d0 and A2fl s1
3-Point Max Span: 800 mm
2-Point Max Span: 700 mm
Max Cantilever: 200 mm
*All spans tested to 2kN point load
-
PTV Slip Resistance: Dry: 68 | Wet:41 – Low slip potential
Micro Roughness: Rz: 21 μm – Low slip potential
Finish: Qualicoat up to Seaside Level 2
Warranty: 30 years
Components
Downloads
Case Studies
View All Case Studies-
Eglinton Road
Located at the prominent intersection of Eglinton Rd and Donnybrook Rd, this impressive development comprises staggered residential buildings positioned around a beautifully landscaped courtyard.
-
Consort Place
EnviroBuild's non-combustible Pro-grip aluminium decking and substructure were the optimal choice for Consort Place's apartment balconies, covering a substantial 1250 sqm.
-
Coombe Road
The Coombe Road development represents a remarkable endeavour, encompassing the design and construction of two buildings featuring four residential blocks spanning 3 to 7 storeys.
