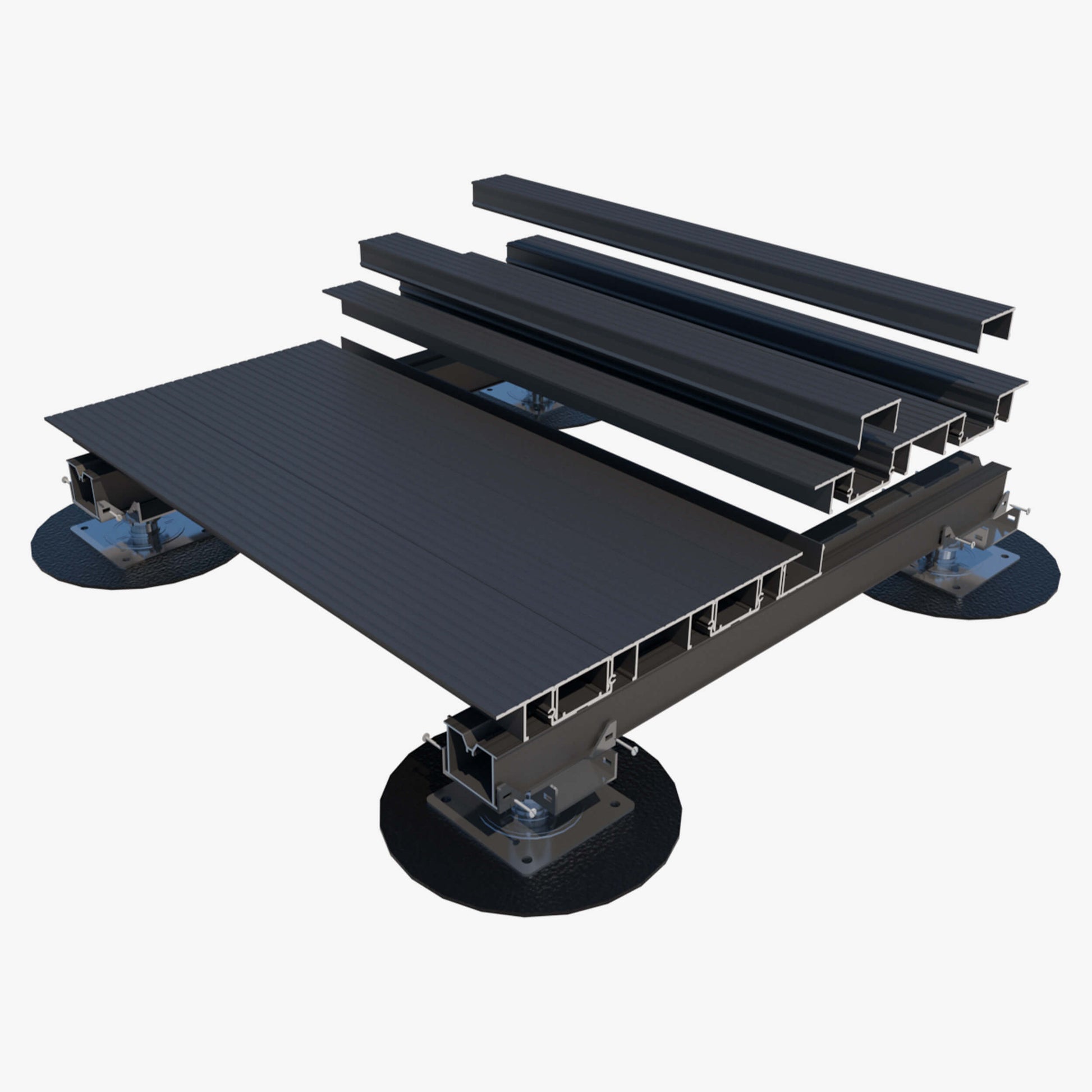

Highly versatile flat roof floating floor systems perfect for all terrace or inset balconies.
Designed to meet the needs of a wide variety of both commercial and residential spaces the non-combustible fire rated system uses adjustable steel pedestals, aluminium joists and protective rubber membranes to provide security, strength and adaptability where it is needed most.

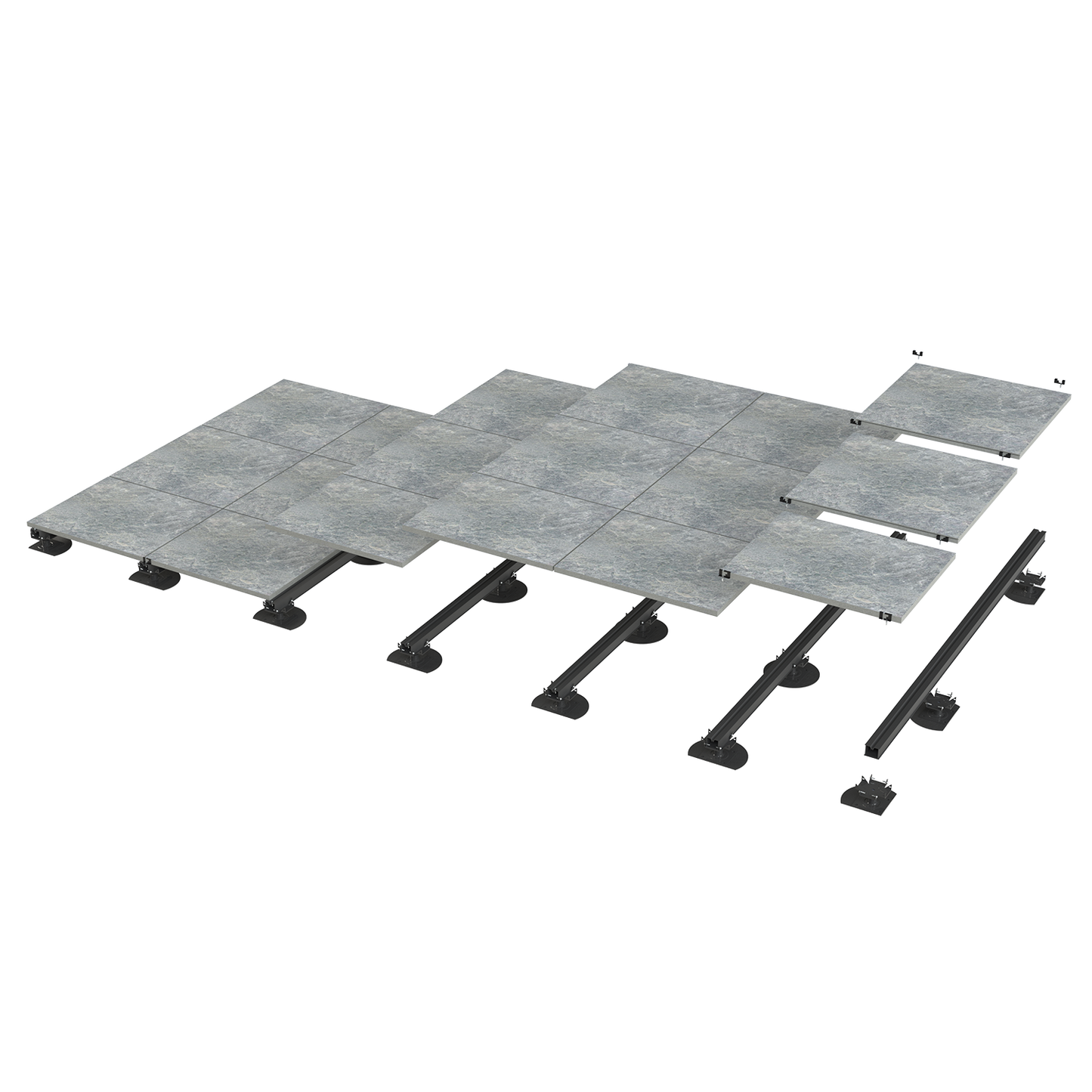

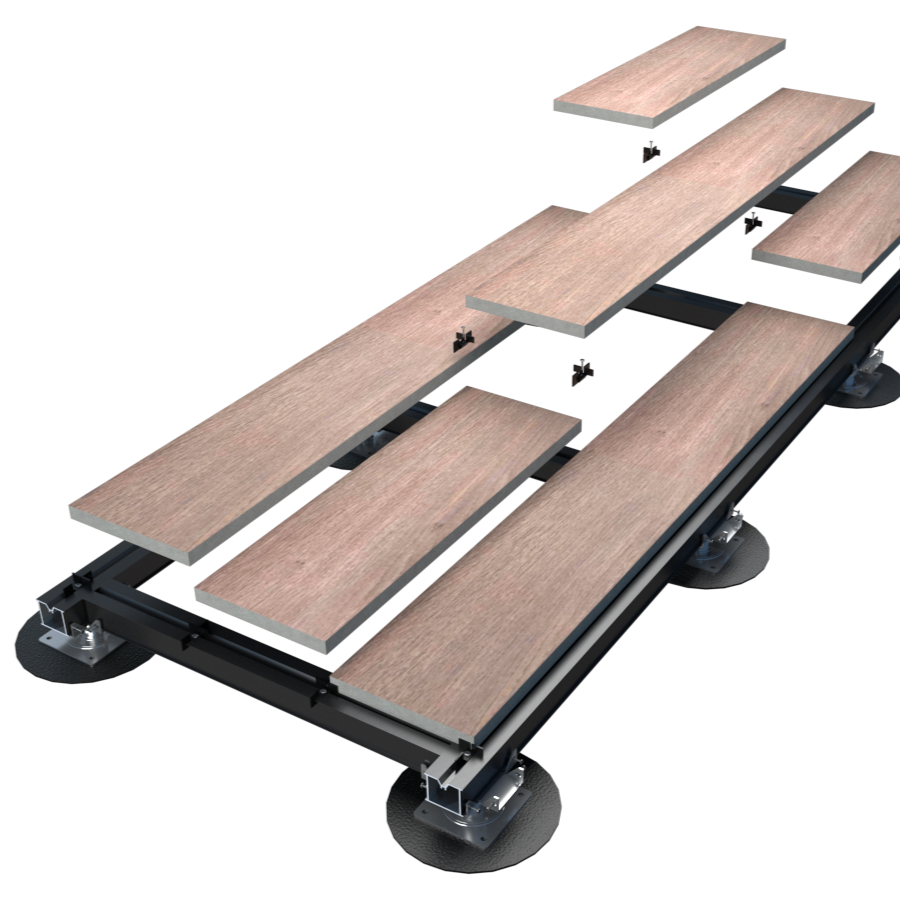

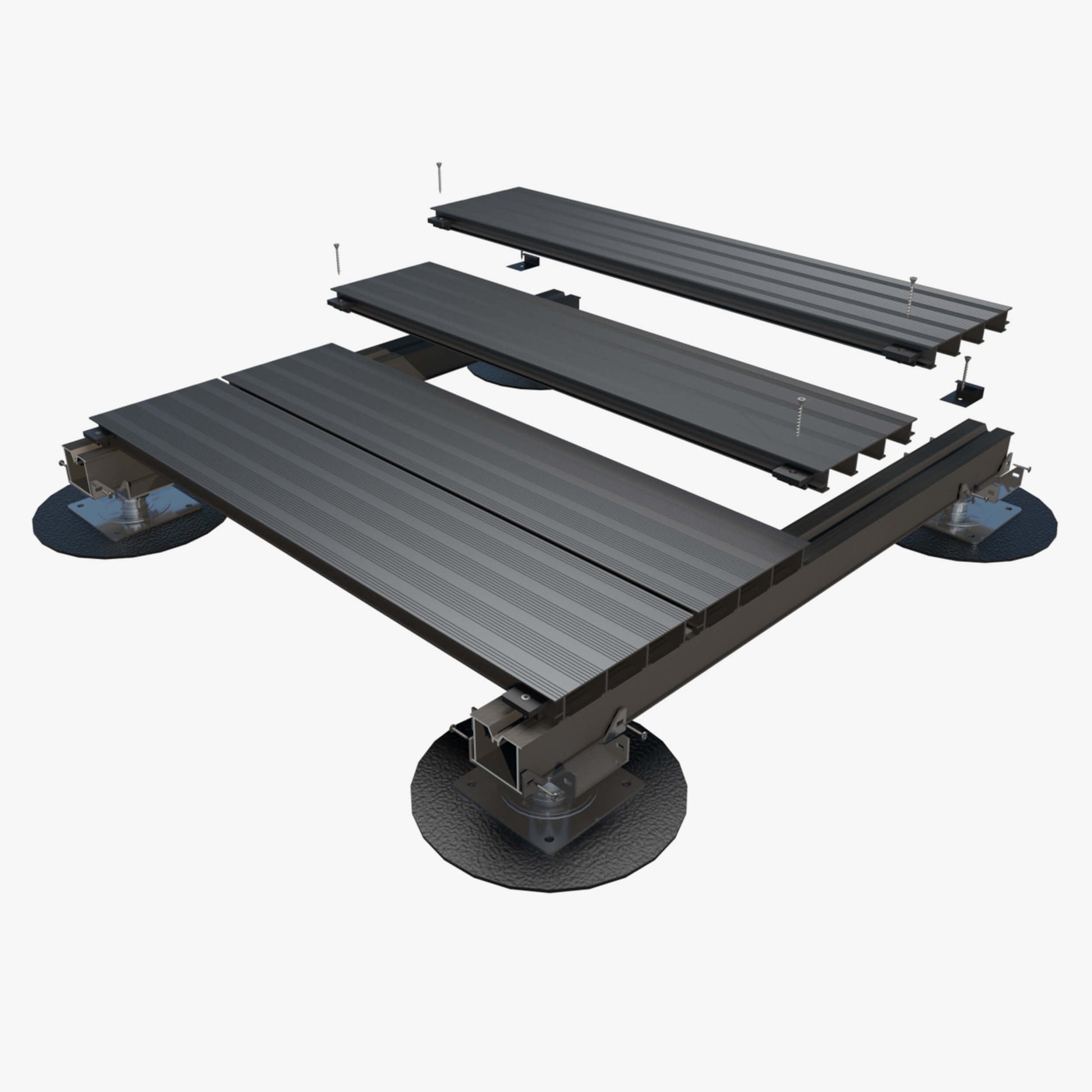

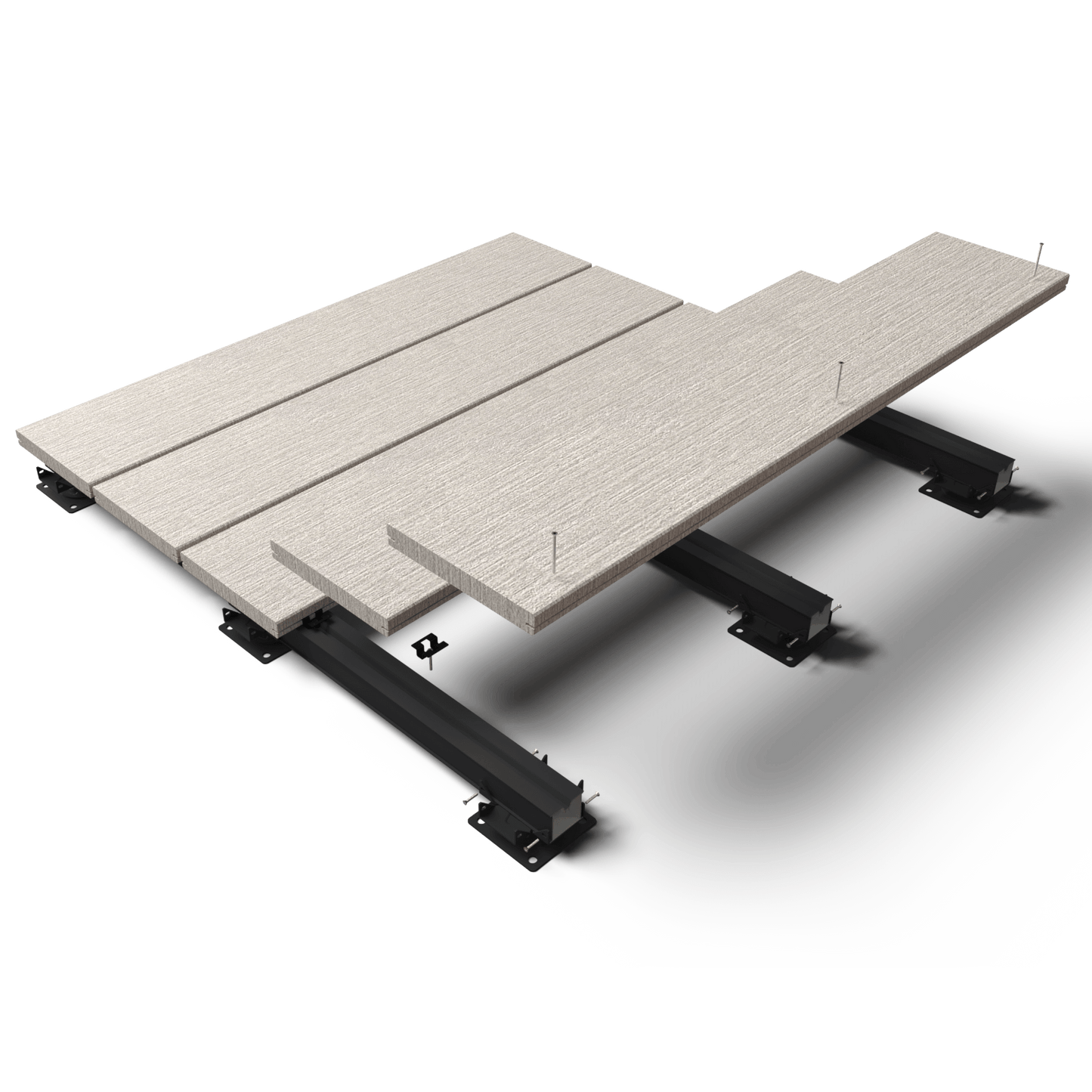

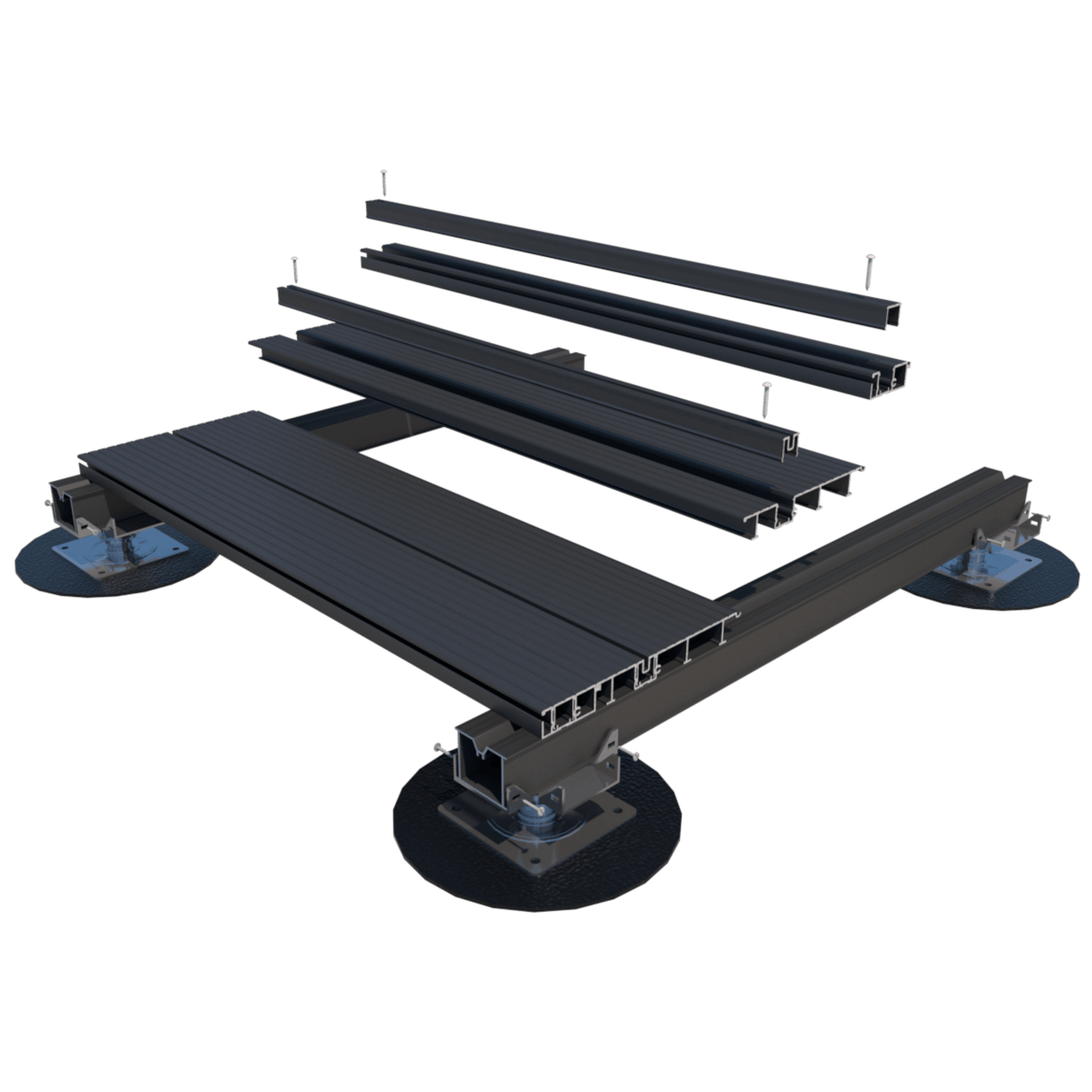

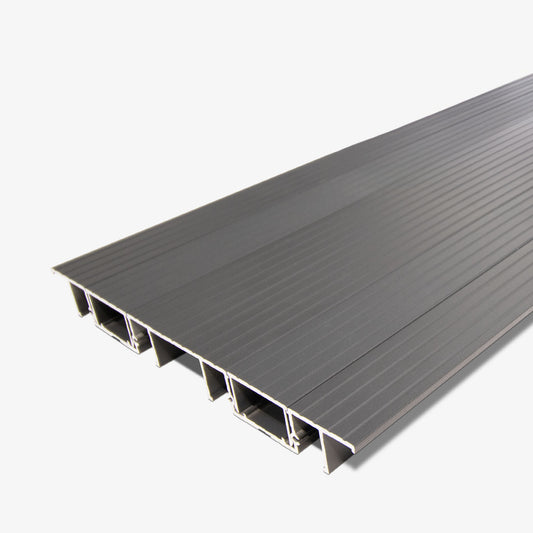

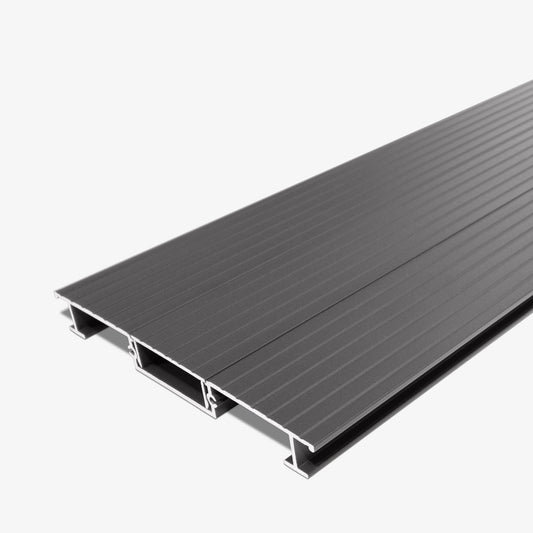

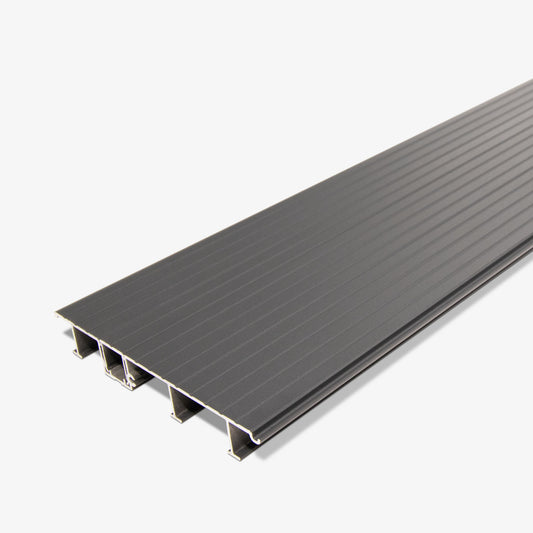

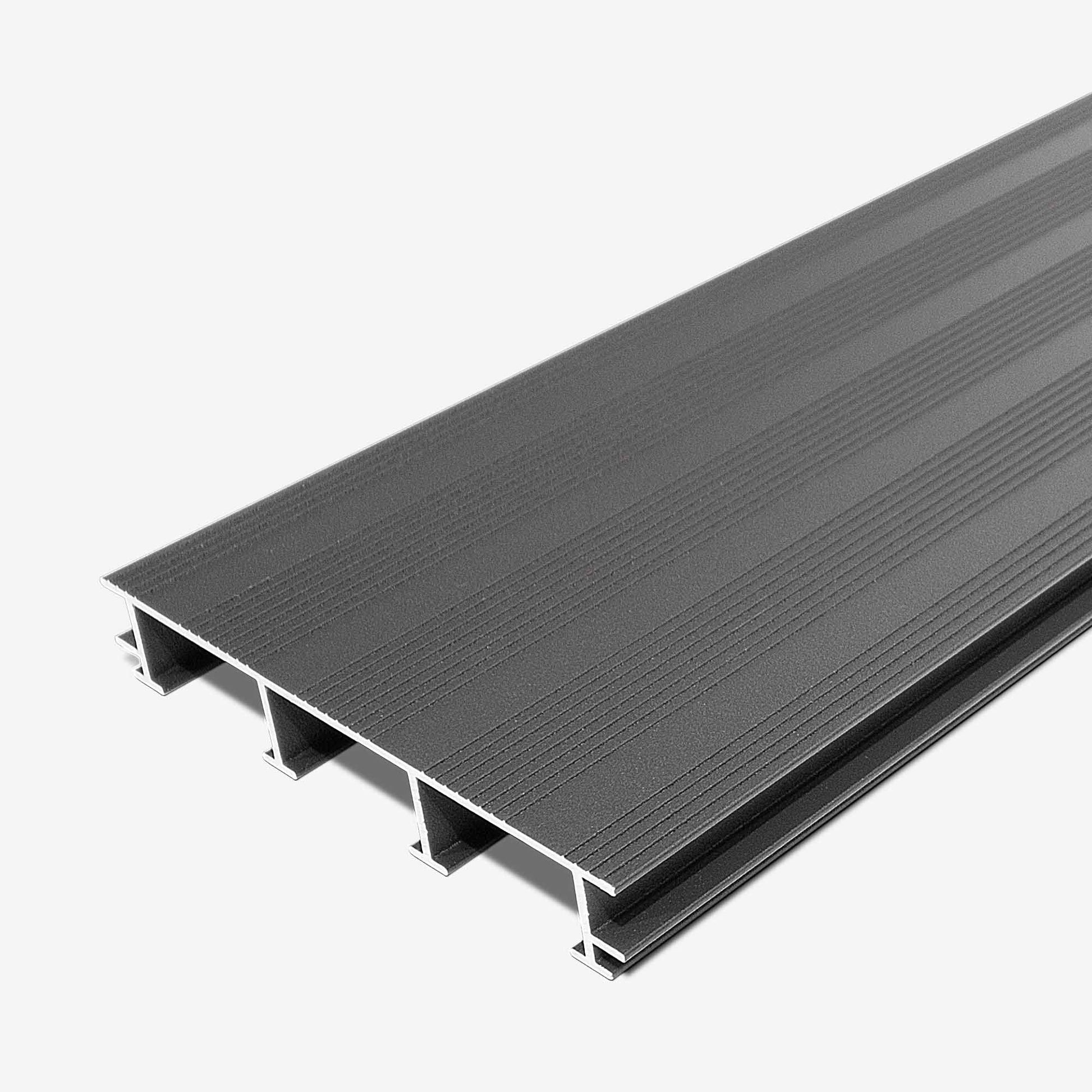

With a huge a selection of high quality flooring finishes including aluminium decking in any RAL colour, porcelain paving in natural stone finishes, beautifully realistic porcelain decking and the revolutionary fibre cement decking, we have you covered.

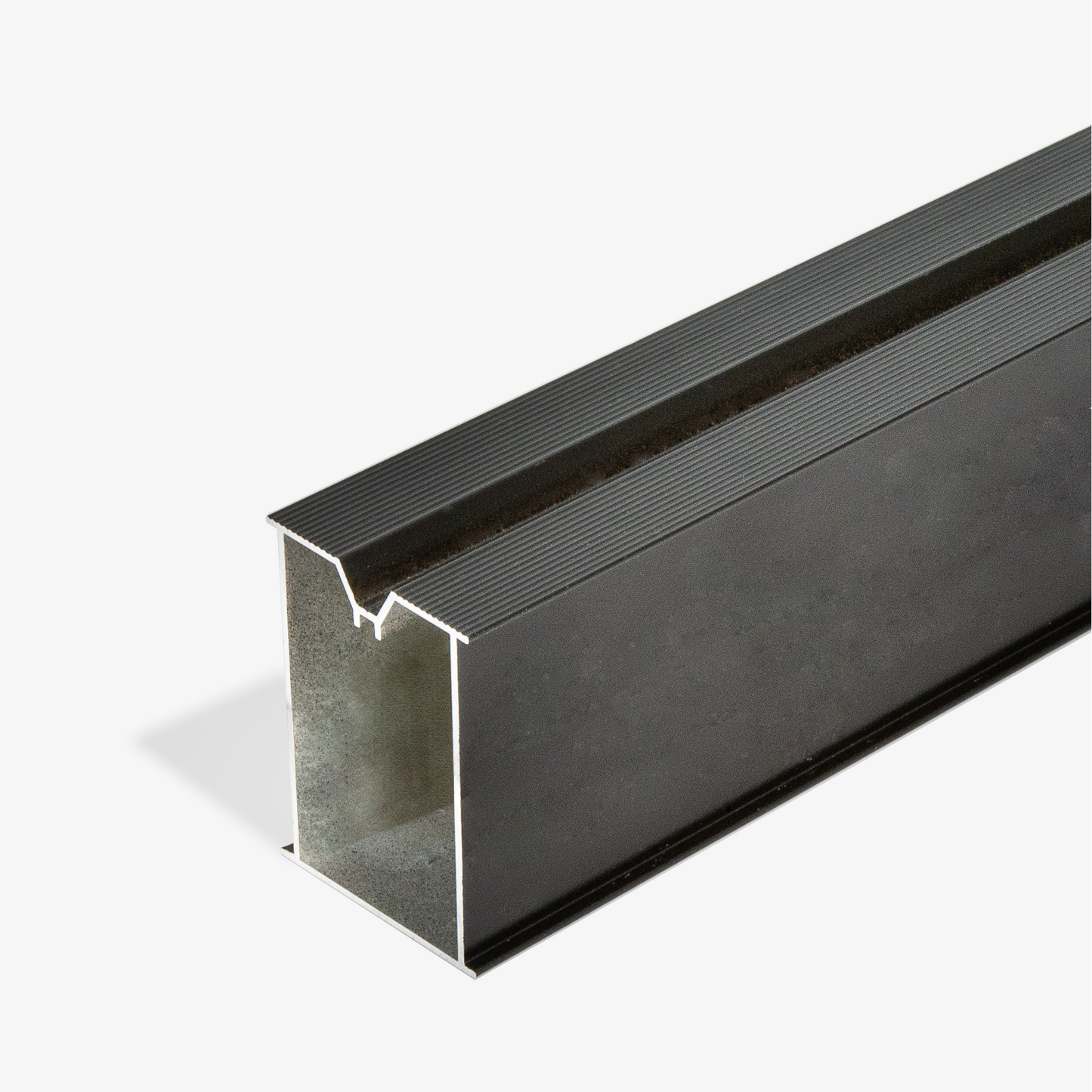

Aluminium Bearers provide strong and compliant support for non-combustible substructure, engineered from 6063 T6 Aluminium the beams have a Class A2 Rating to EN13501-1 Reaction to Fire. The 3.6m bearer lengths come in 20, 40 and 80mm heights to suit most build up requirements; they benefit from an I beam design for superior strength and countersunk top allowing for flush fixing to steels using countersunk bolts. The bearers are designed to work with MESA non-combustible adjustable supports for flat roof installations or the patented joist support brackets for fixing directly onto steels and can create the perfect drainage slope in compliance with BS 8579. The beams are coated in durable black Qualicoat standard powder coating to reduce substructure visibility from all angles.

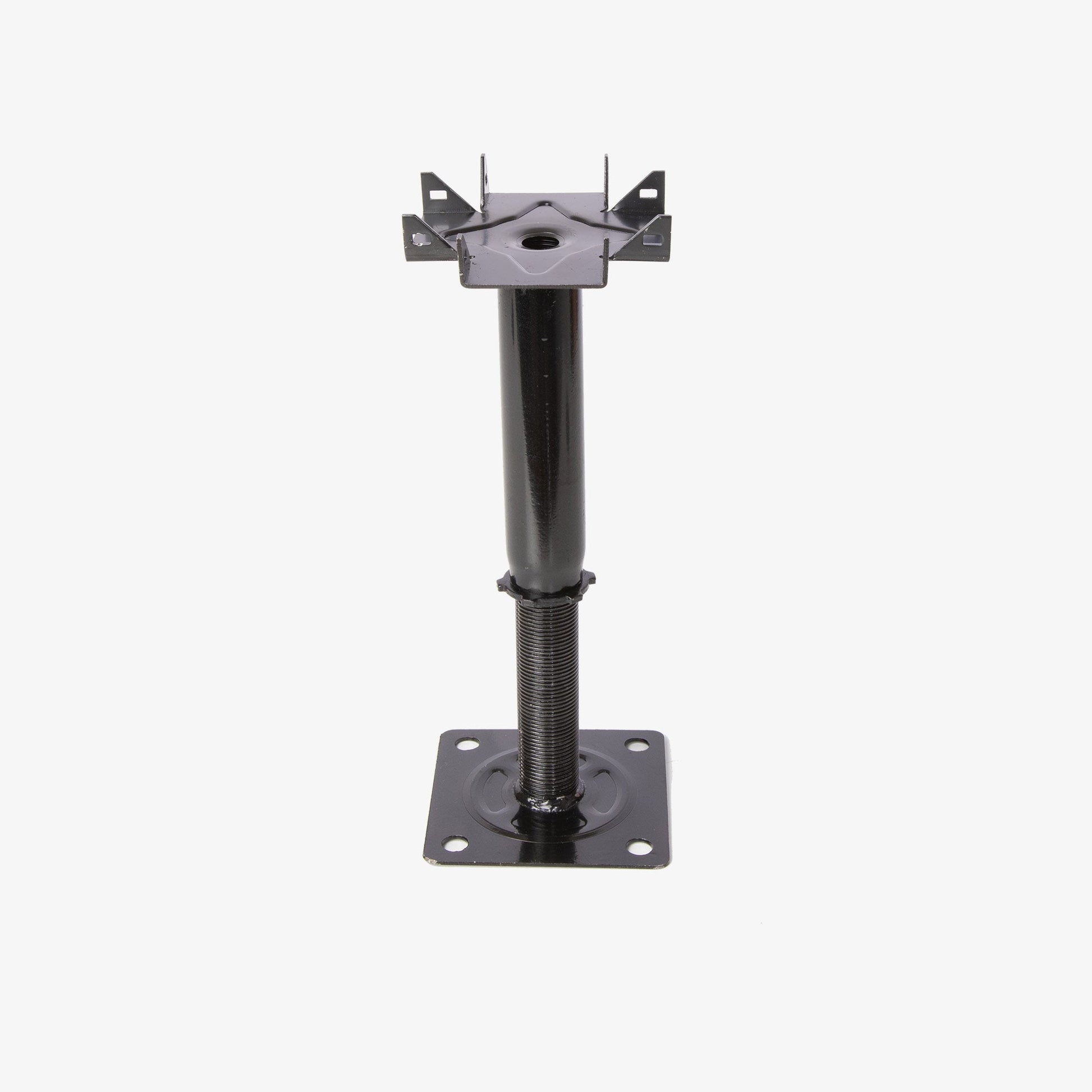

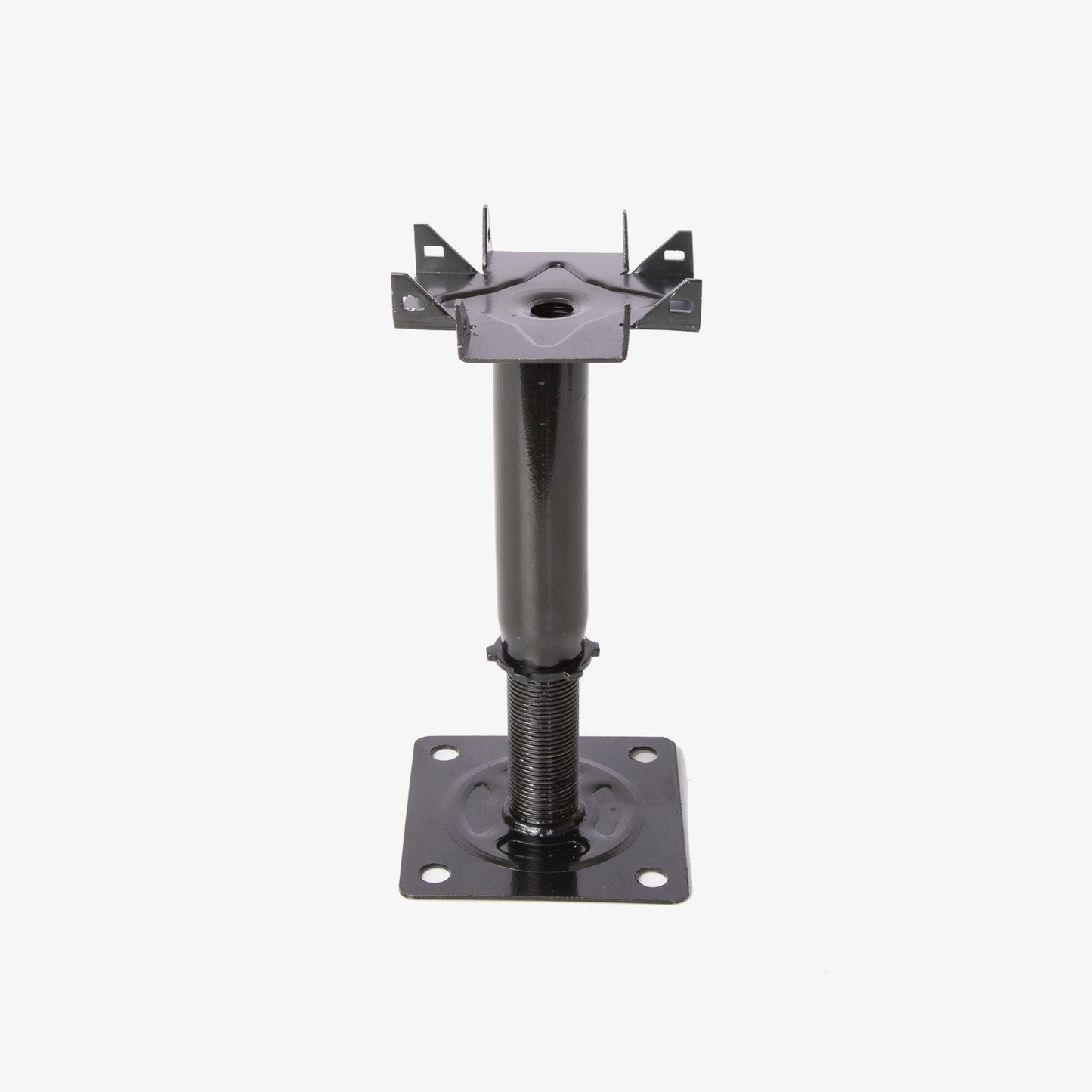

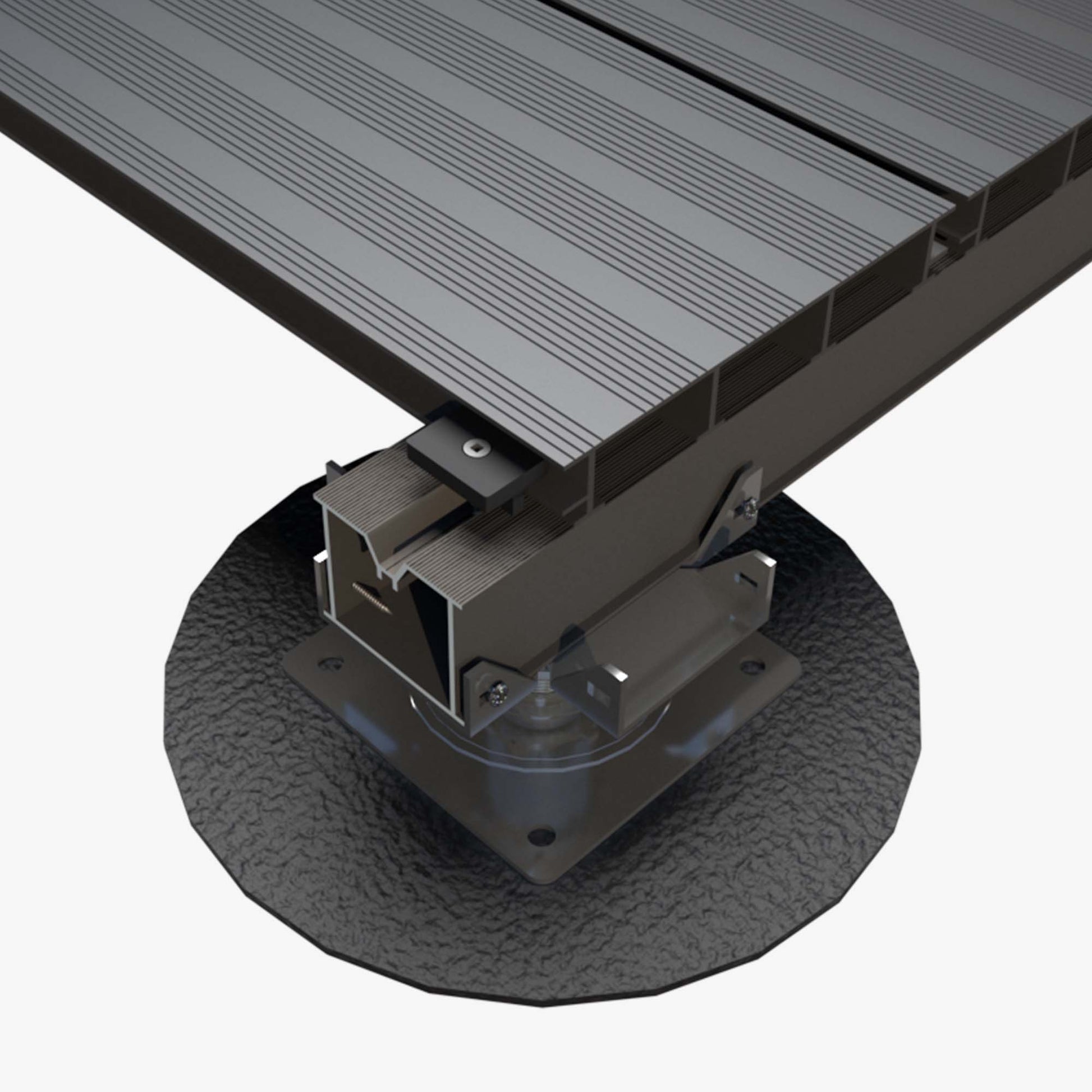

MESA Non-Combustible Adjustable Support Pedestals are engineered to offer market leading strength for external balconies and terraces where EN13501-1 Reaction to Fire rating of A2 is required. Manufactured from electrophoretically coated steel, each pedestal can support loads up to 1000kg, providing a solid foundation that can withstand the elements and heavy foot traffic. The pedestal range can support heights between 10 to 500mm and allow for rapid, tool-free height adjustments. 4 Way Joist Support Pedestals offer high versatility and compliant support for any external floating floor finish that requires support bearers up to 50mm in width. The design allows for perpendicular joists to be fixed within the support head through screw slots, which creates a interconnected sub structure that can prevent wind uplift issues. The supports can account for slopes up to 5 degrees by fixing joists at and angle through the fixing screw slots, in addition a locking nut (where available) is in place to hold an adjusted heigh securely in place. Where a flat roof surface requires protection or for uneven surfaces a protective rubber membrane can be supplied.

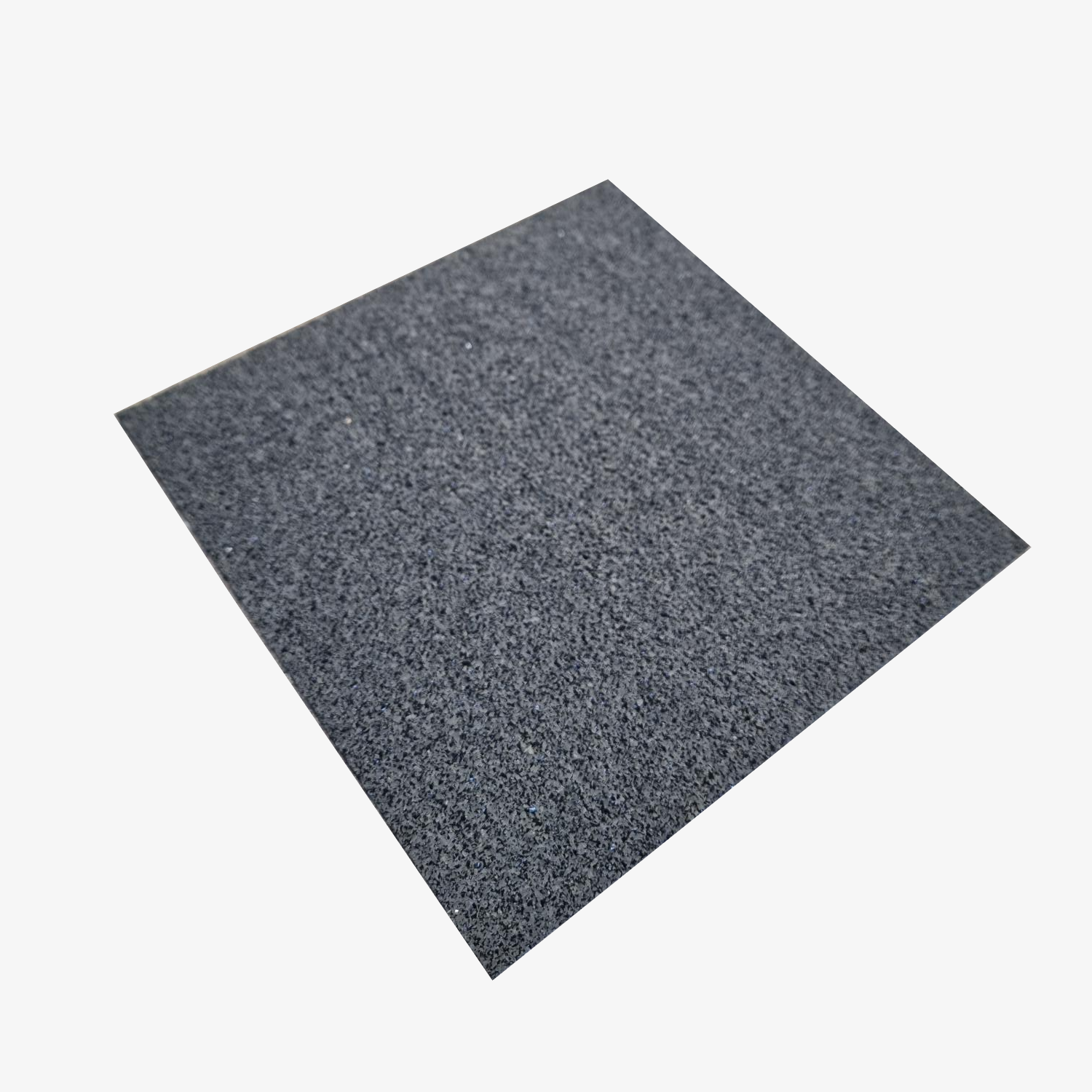

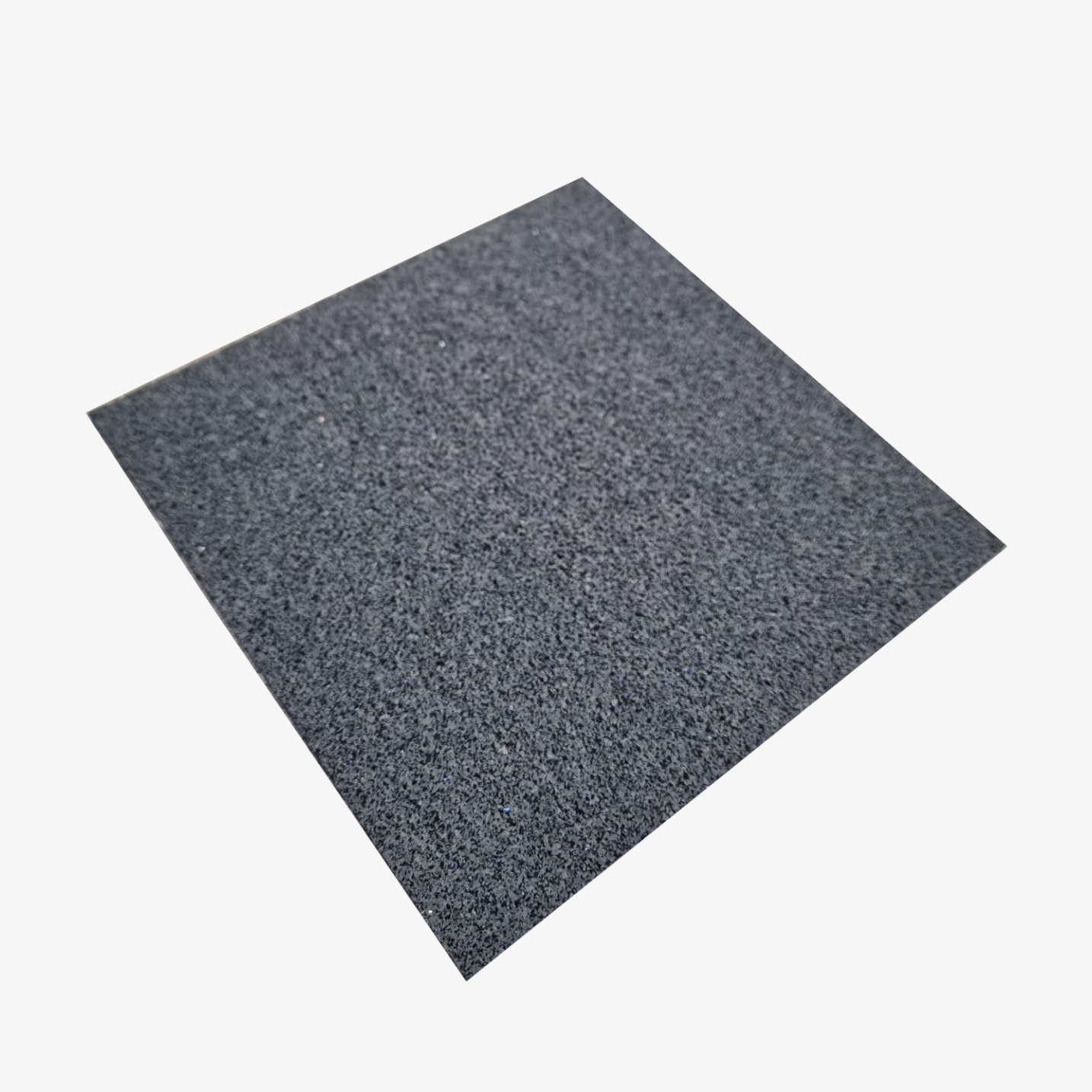

Rubber Support Membrane provides a 200mm diameter cushioned base for decking and paving installations, protecting surfaces from damage and wear, especially on flat roof situations. Designed to prevent slippage and absorb minor impacts, this durable membrane, manufactured from 100% recycled rubber, is perfect for outdoor applications.
