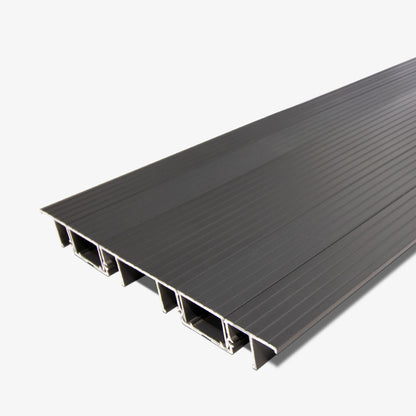

Strong-Span Aluminium Decking
Strong-Span Aluminium Decking

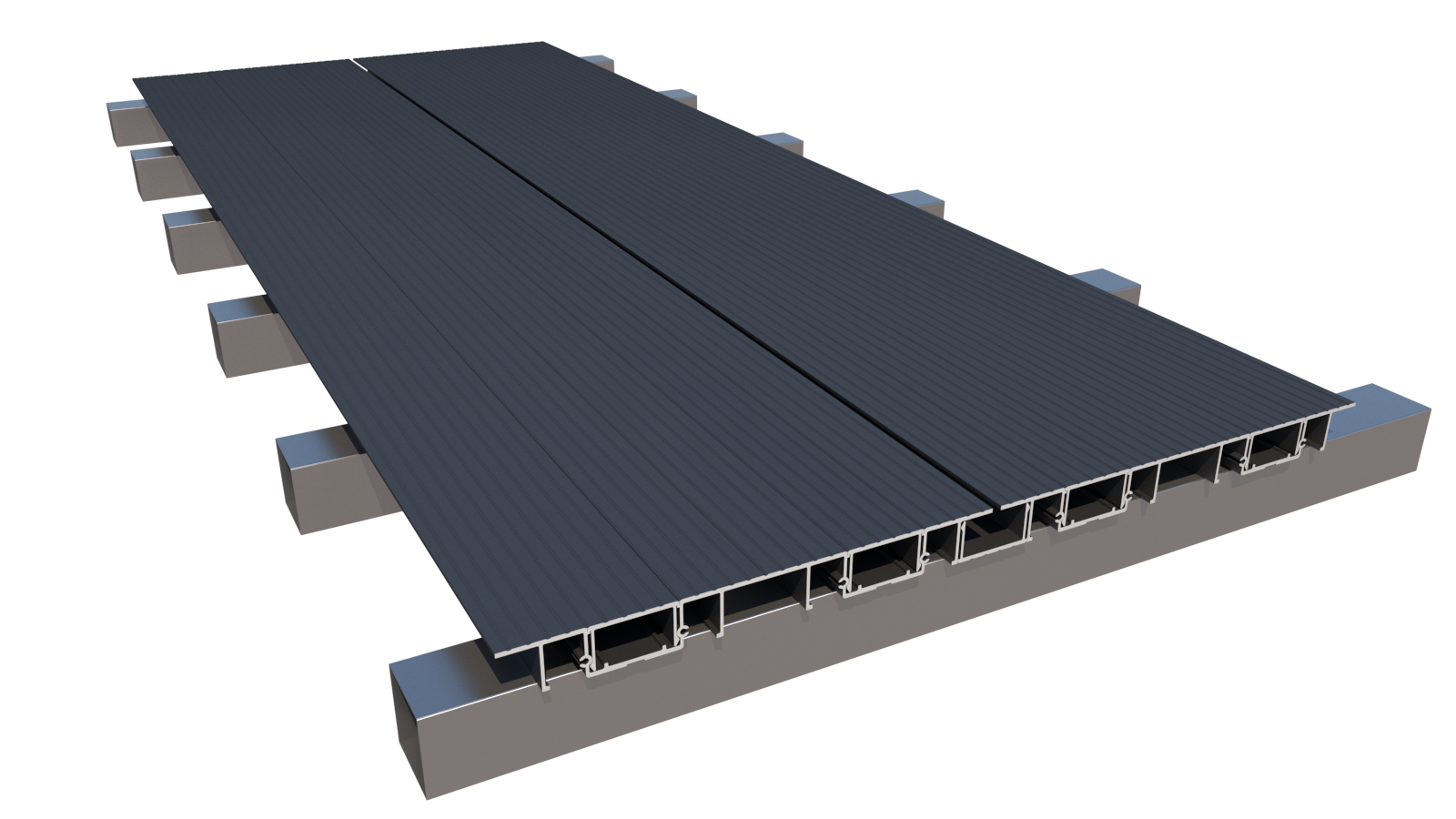

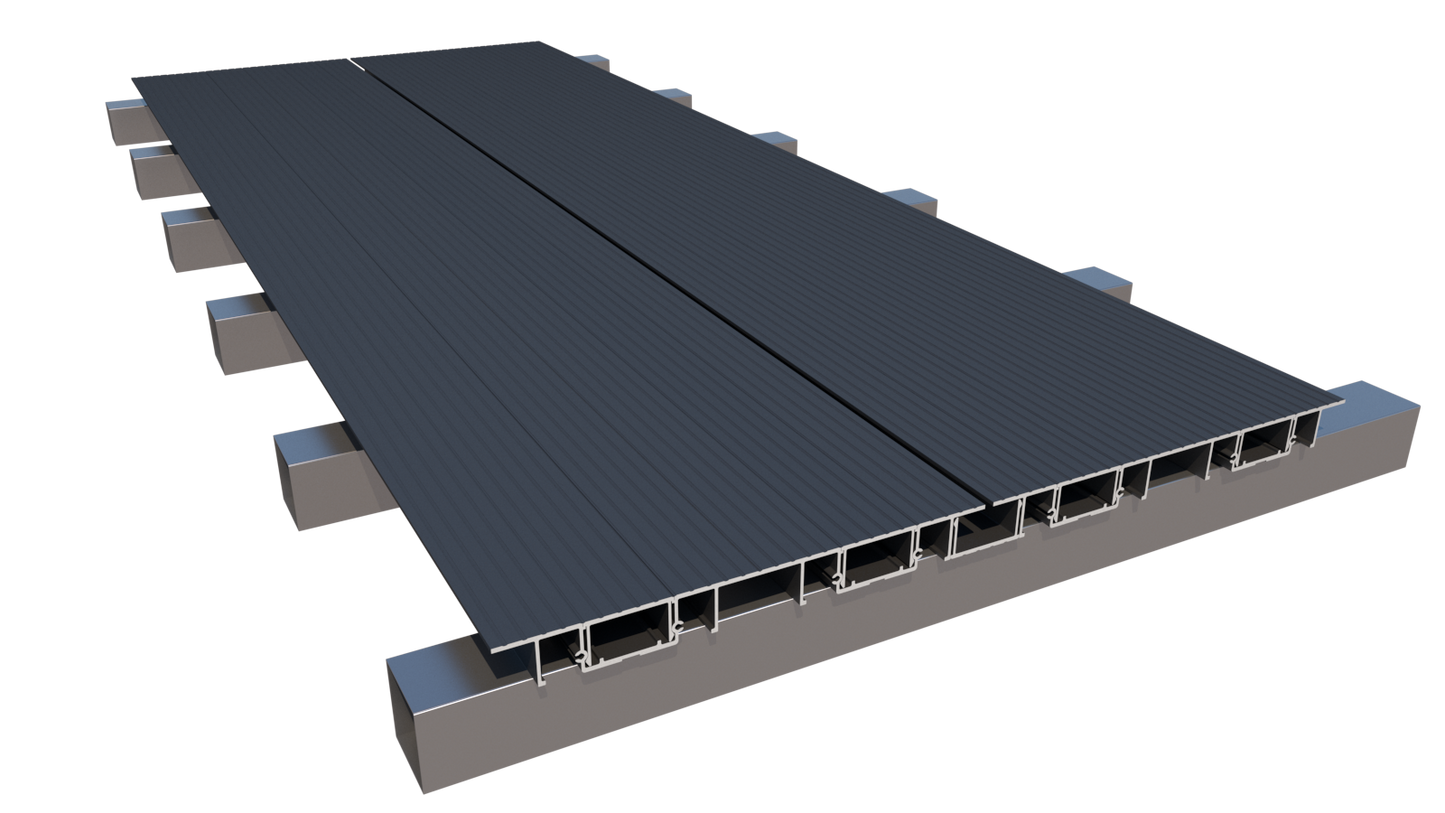

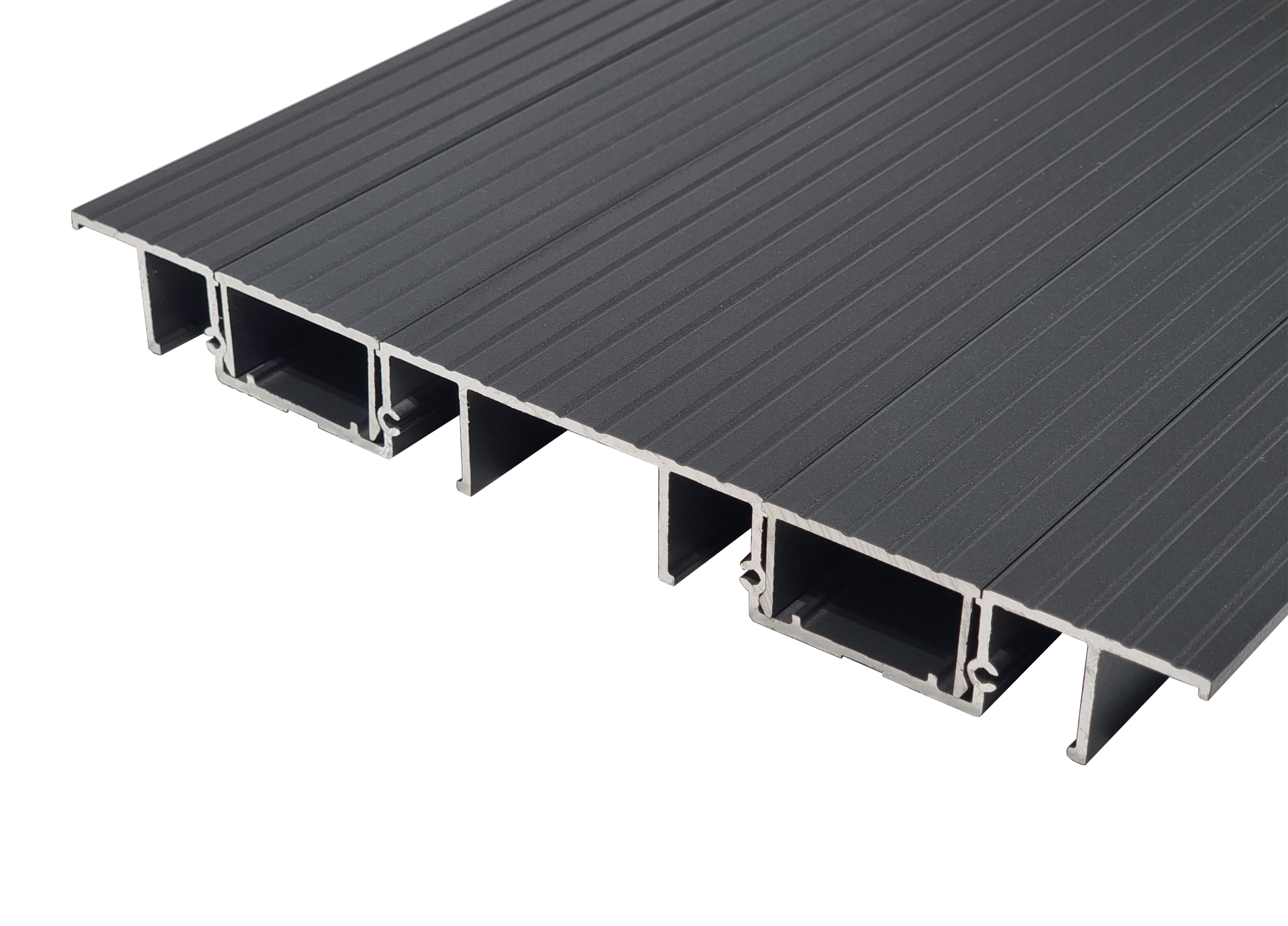

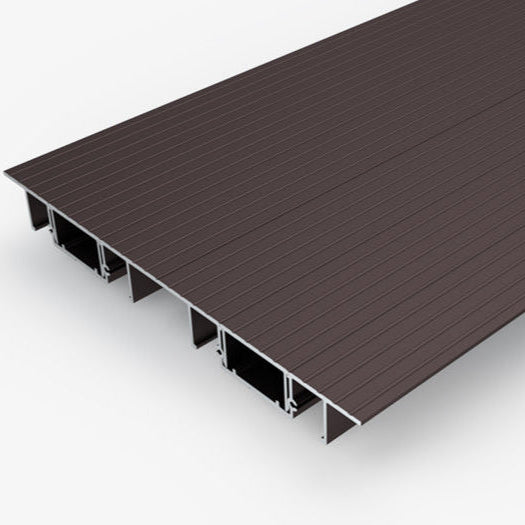

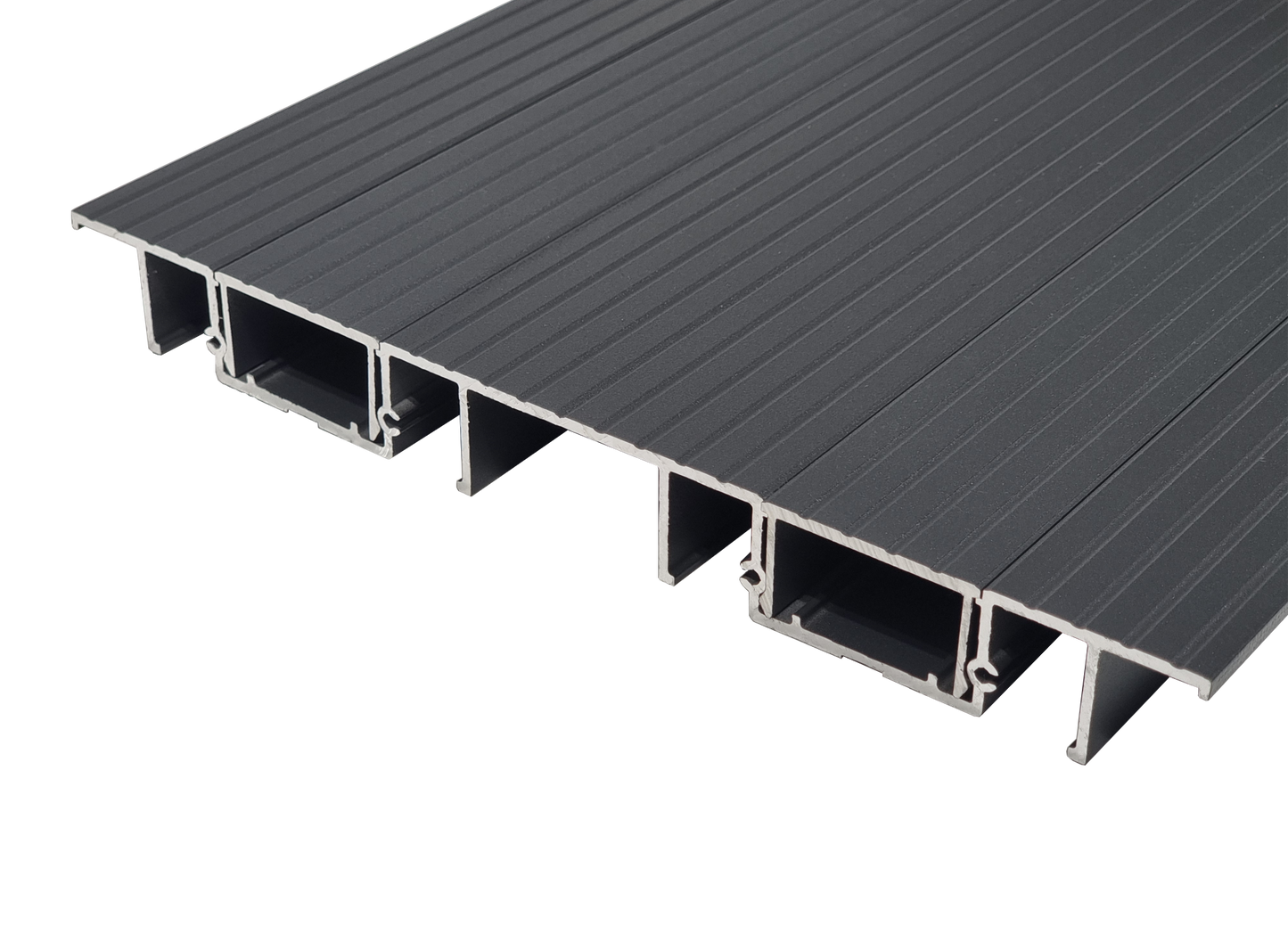

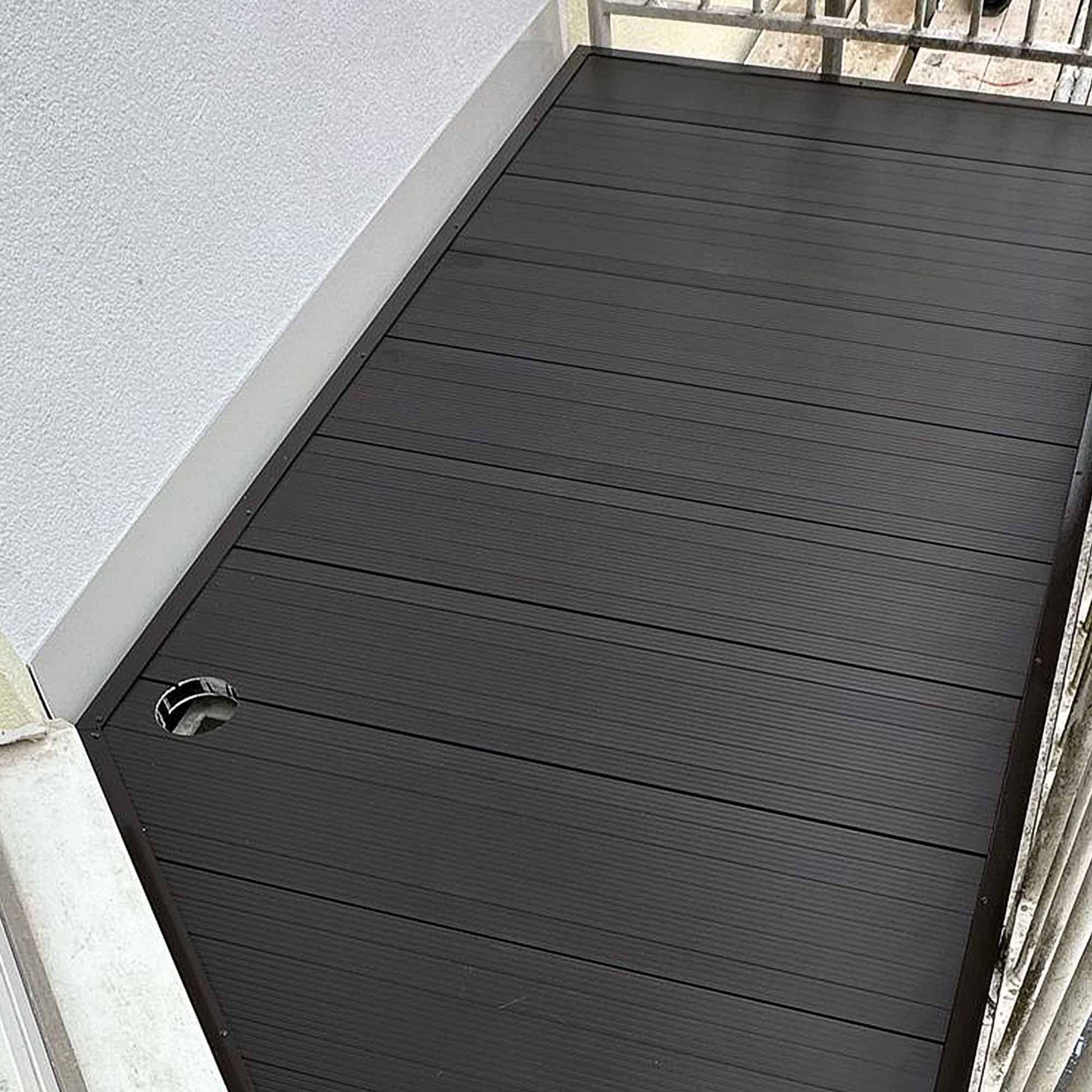

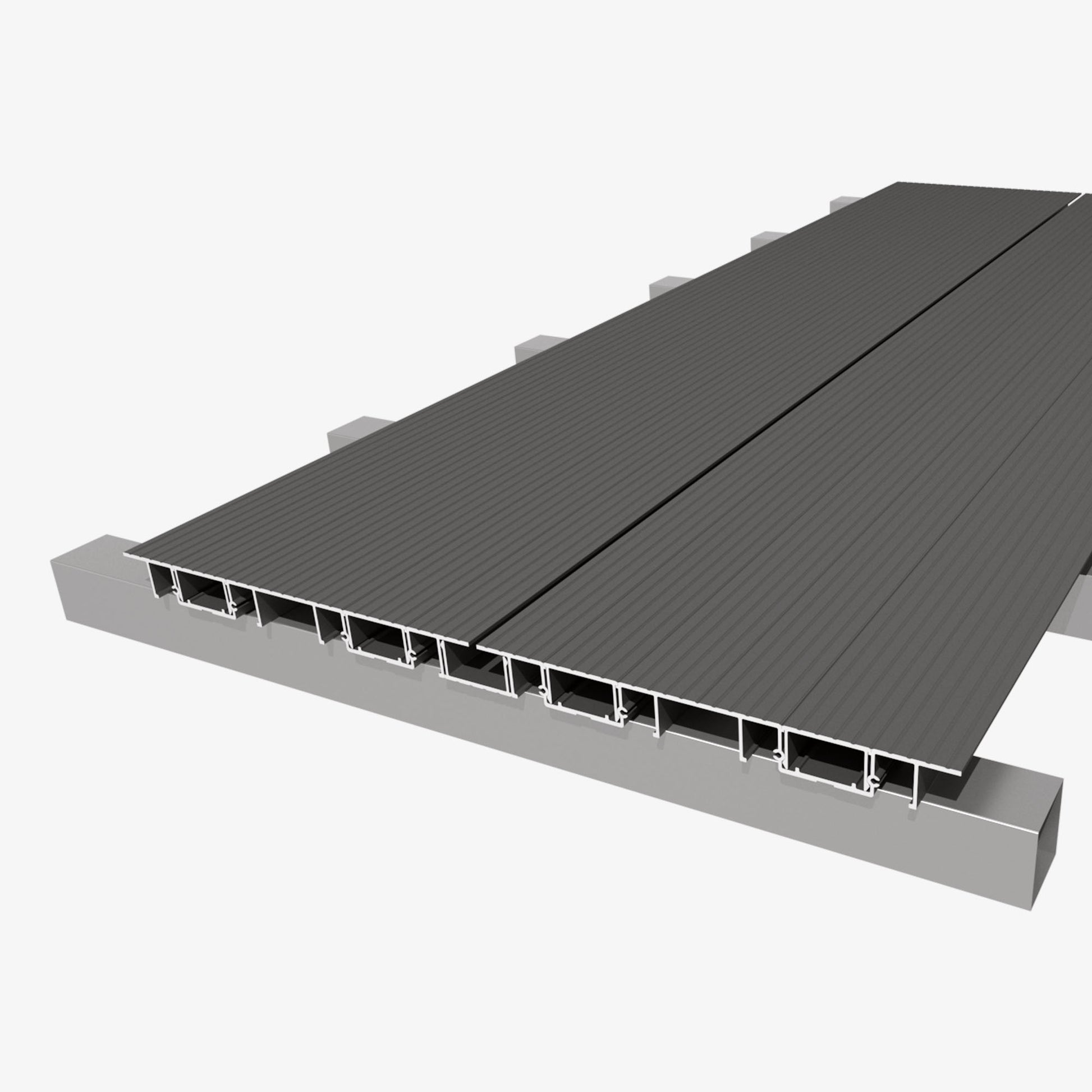

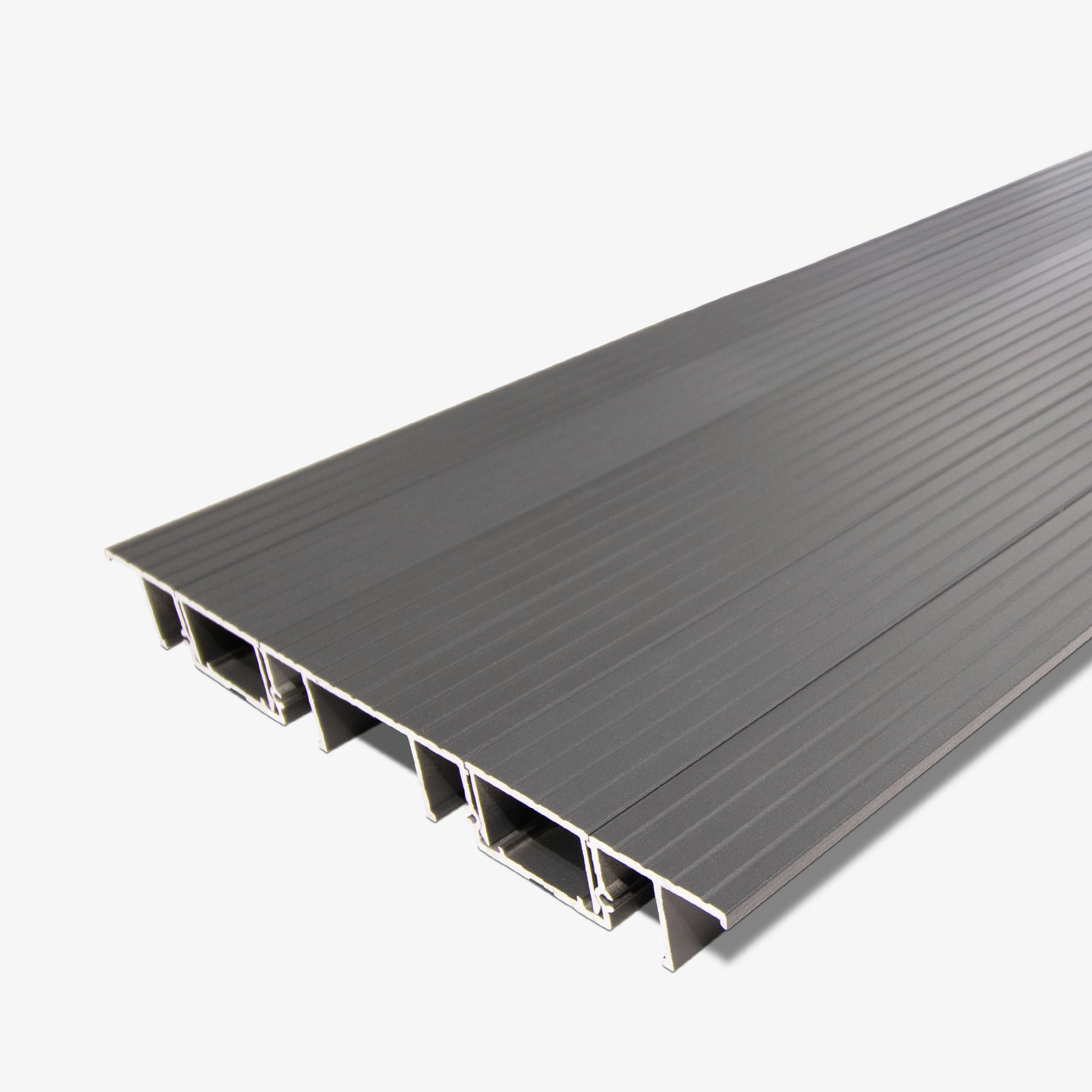

Strong-Span Aluminium Decking is engineered for installations that require a strong finish with large spans between support steels and restricted build up height, perfect for retrofit installations swapping out legacy timber products. The 295mm wide boards, engineered from 60603 T6 Aluminium, have a maximum span of 1200mm and with 30mm height allows for low-clearance applications, and hidden fixing channels in the board allow for fixing directly to steels. The boards can be converted to a surface draining layer with the addition of purpose designed drainage channels between boards, which still allows a single board to be lifted anywhere on the decking surface if required. The range comes complete with full boarder drainage system or subsurface drainage to suit any build type and direct water to any part of the balcony. The boards are supplied in lengths up to 6m and are coated with durable, slip resistant Qualicoat standard powder coating, up to Seaside Level 2, with the option of any RAL colour.Â
- Class A2 to EN 13501-1
- Qualicoat certified powder coat
- Legally compliant to BS:8579
Contact
Specifications
-
Profile: 295 x 30 mm
Length: 6000 mm
Weight: 15.36 kg/m² (including insert)
Fixtures: MESA® Self-drilling Countersunk Screws
-
Reaction to Fire: A2 s1 d0 and A2fl s1
3-Point Max Span: 1200 mm
2-Point Max Span: 1050 mm
Max Cantilever: 400 mm
*All spans tested to 2kN point load
-
PTV Slip Resistance: Dry: 68 | Wet:41 – Low slip potential
Micro Roughness: Rz: 21 μm – Low slip potential
Finish: Qualicoat up to Seaside Level 2
Warranty: 30 years

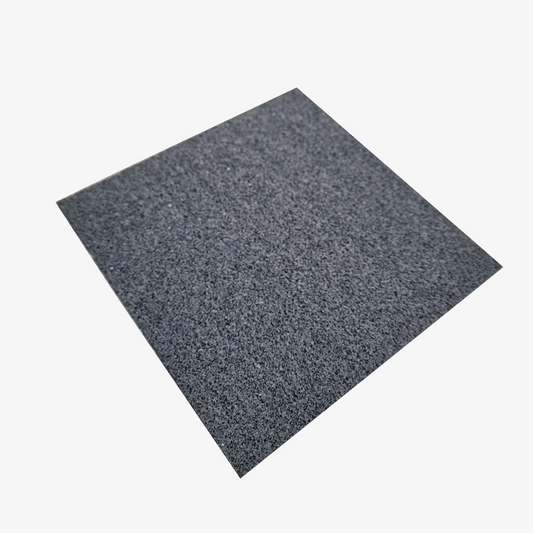

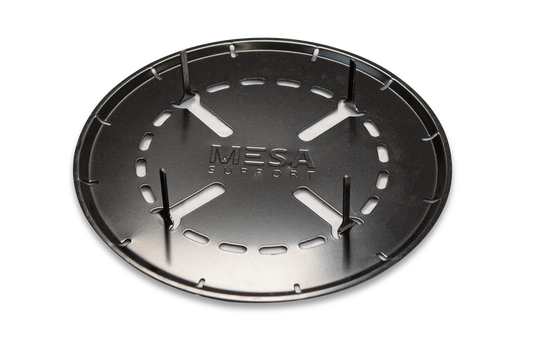

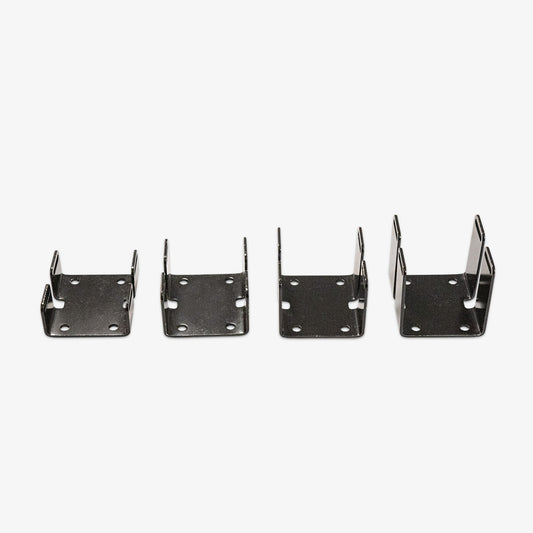

Substructure Components
Downloads
Case Studies
View All Case Studies-
Eglinton Road
Located at the prominent intersection of Eglinton Rd and Donnybrook Rd, this impressive development comprises staggered residential buildings positioned around a beautifully landscaped courtyard.
-

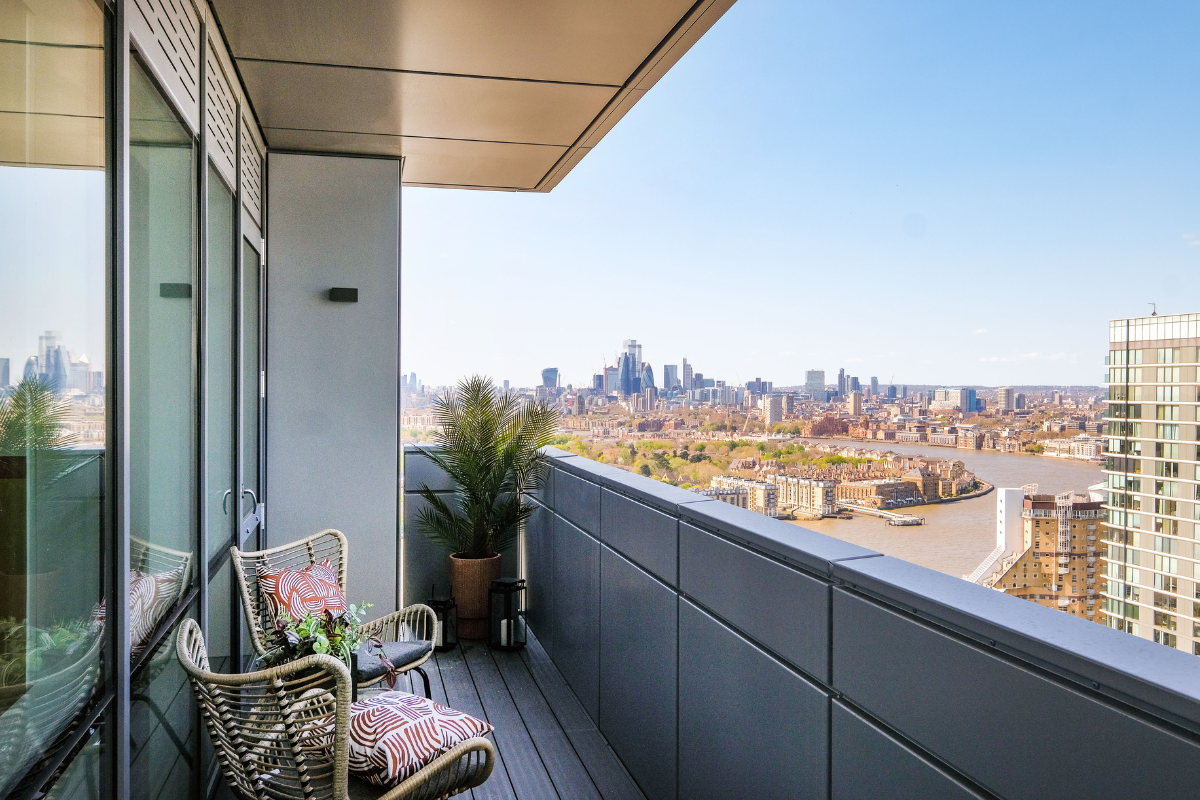

Consort Place
EnviroBuild's non-combustible Pro-grip aluminium decking and substructure were the optimal choice for Consort Place's apartment balconies, covering a substantial 1250 sqm.
-
Coombe Road
The Coombe Road development represents a remarkable endeavour, encompassing the design and construction of two buildings featuring four residential blocks spanning 3 to 7 storeys.
