Aqua-Channel Aluminium Decking

Aqua-Channel Aluminium Decking

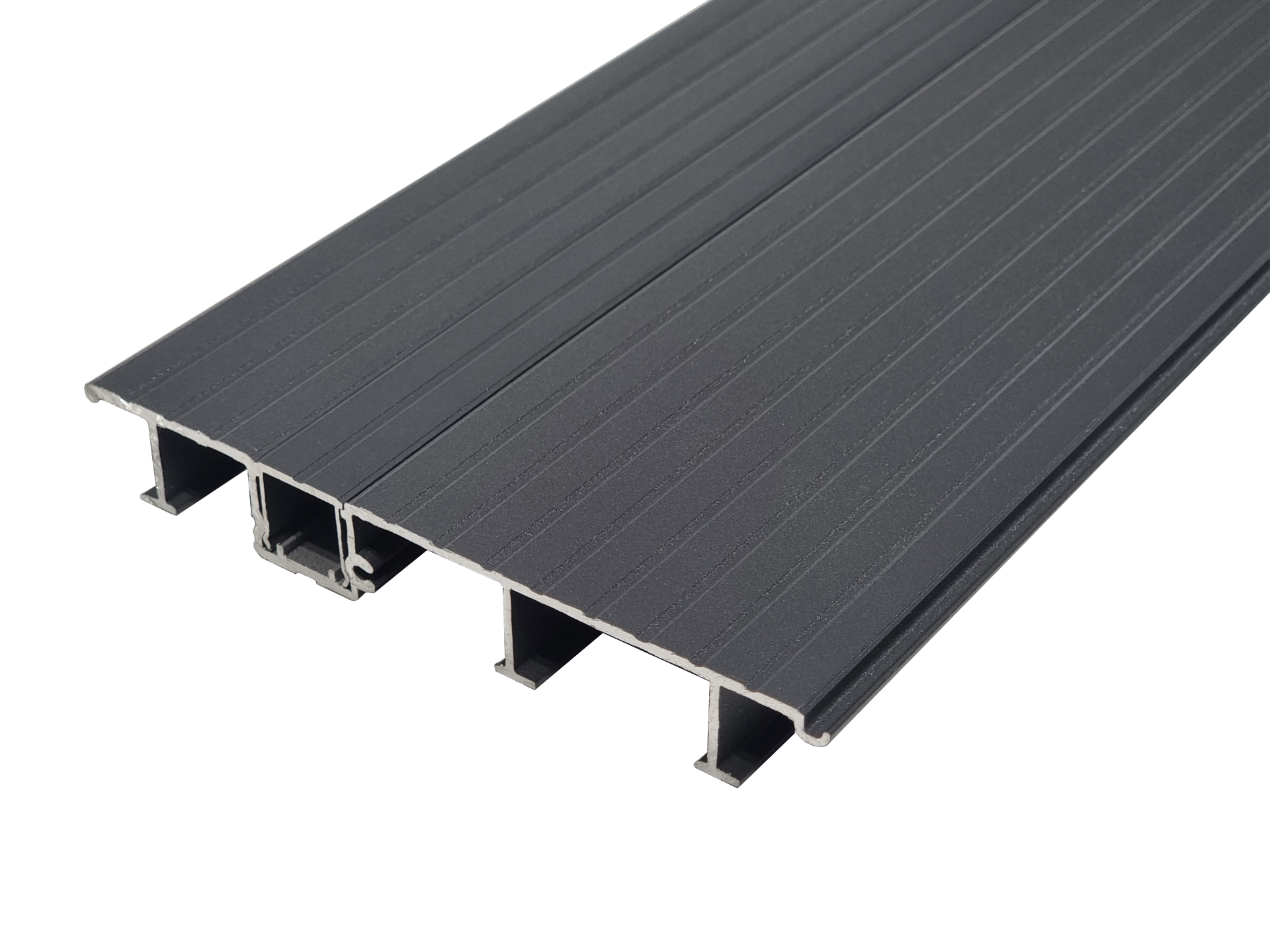

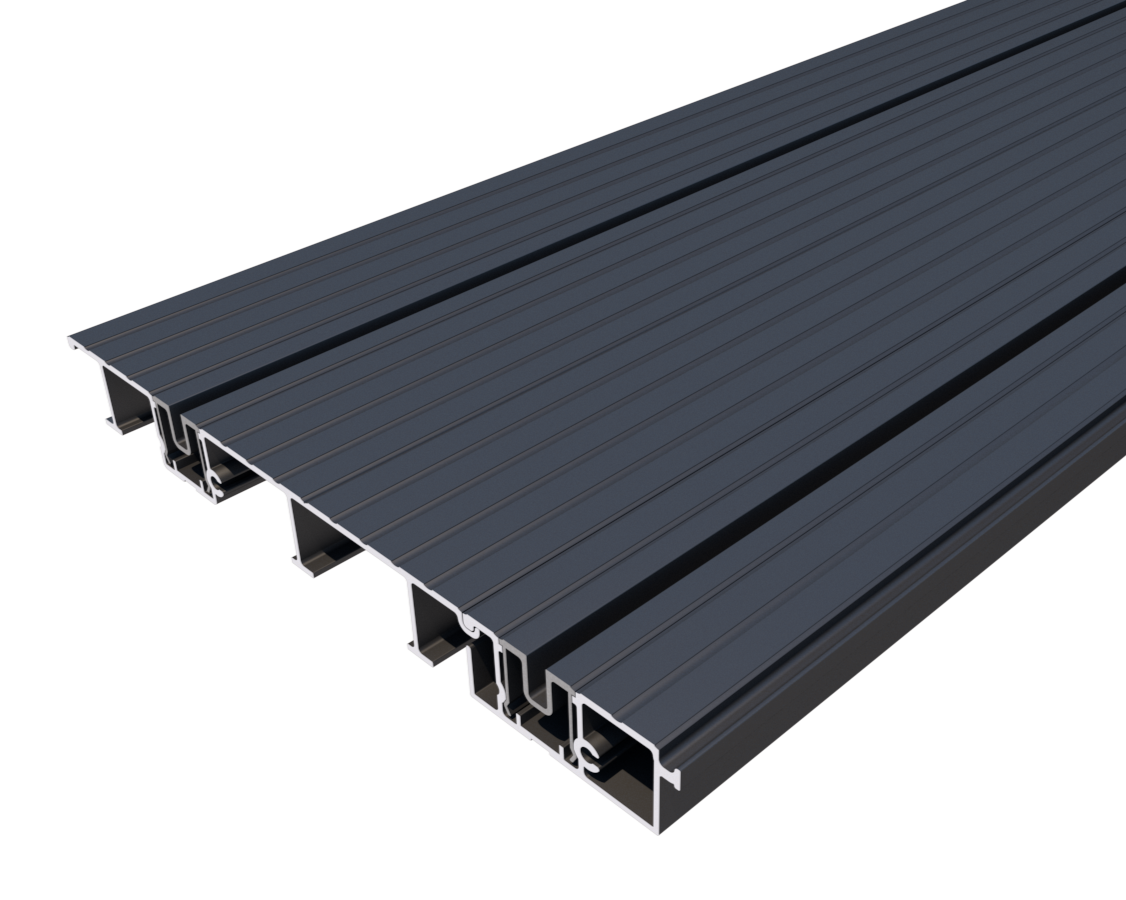

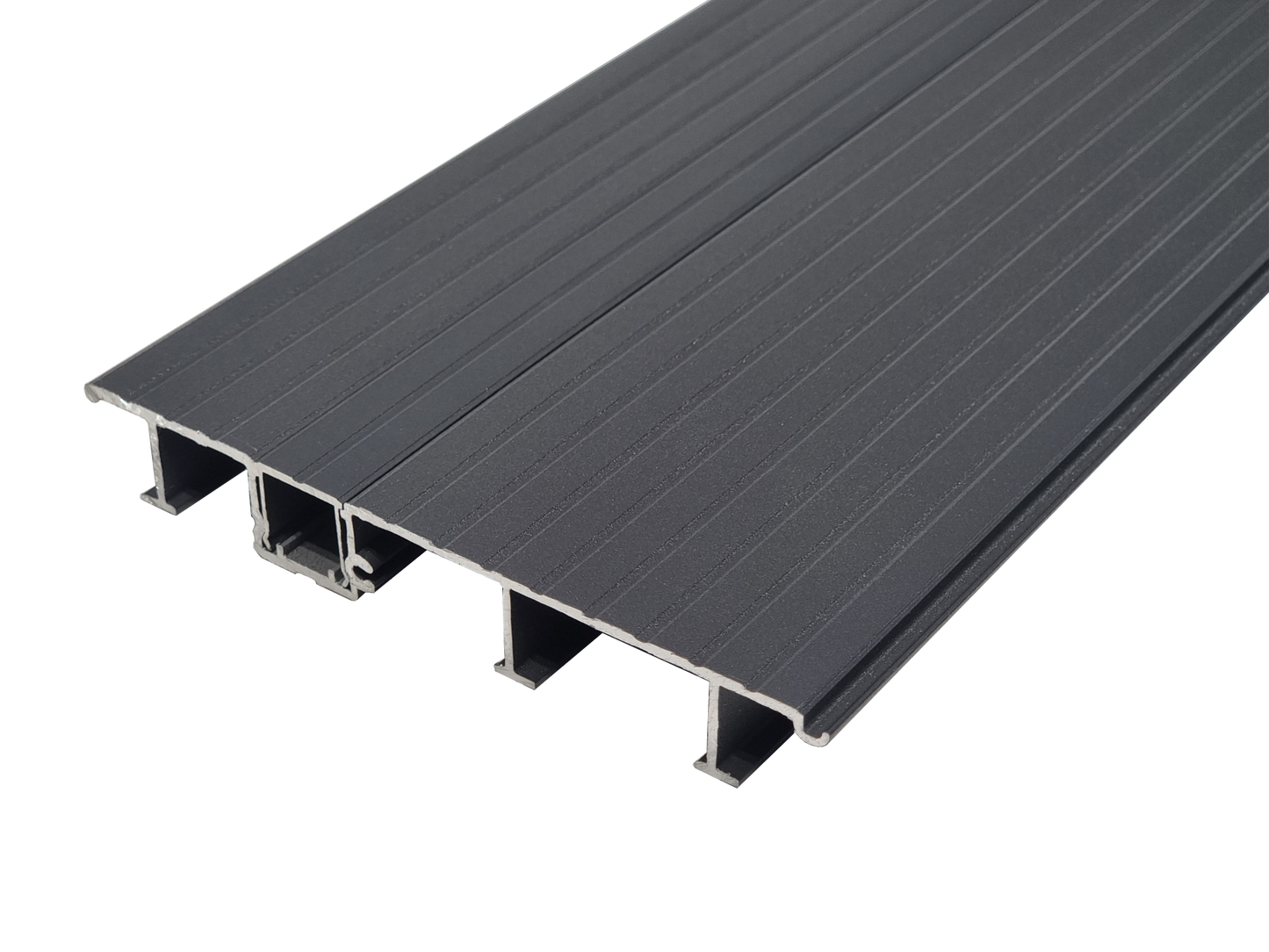

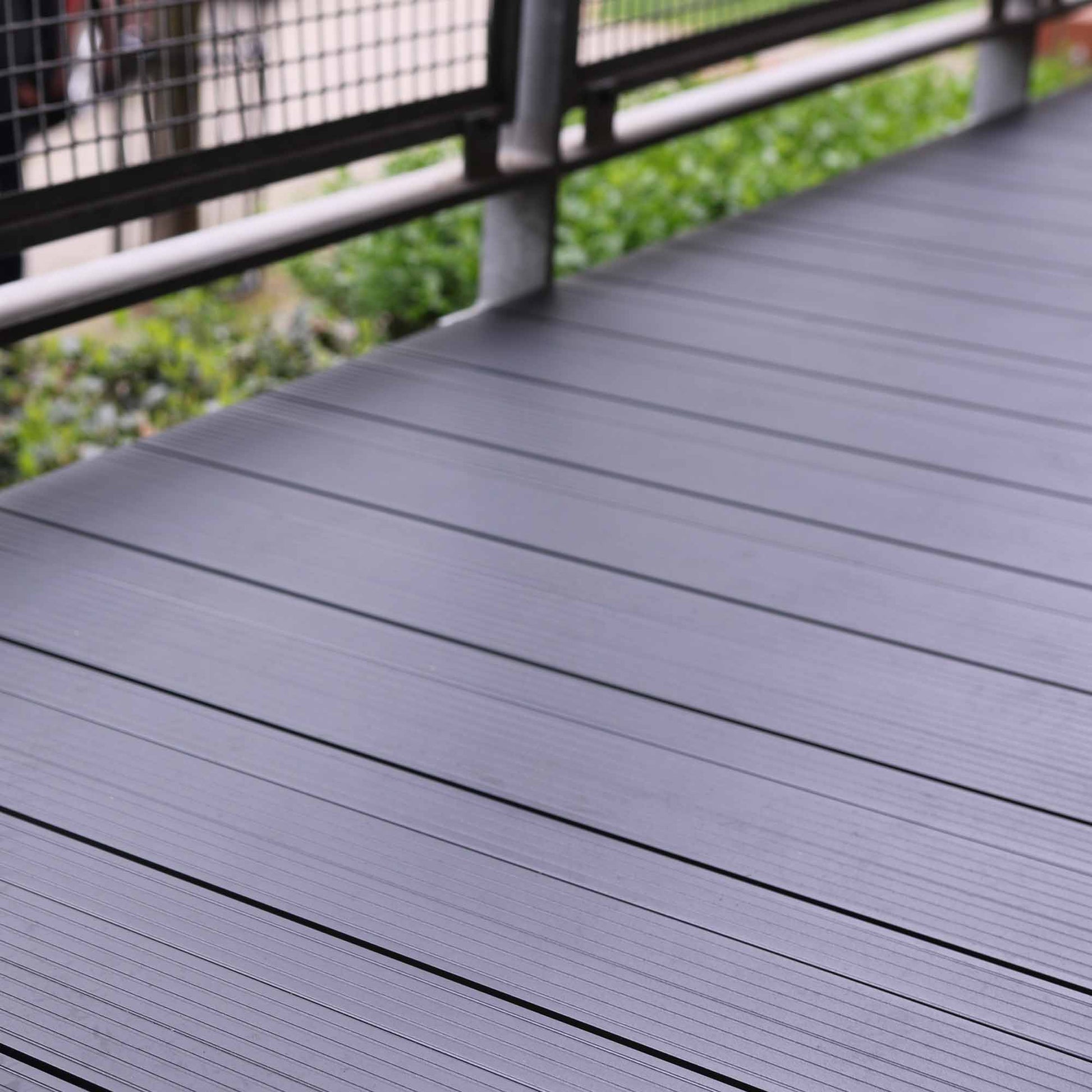

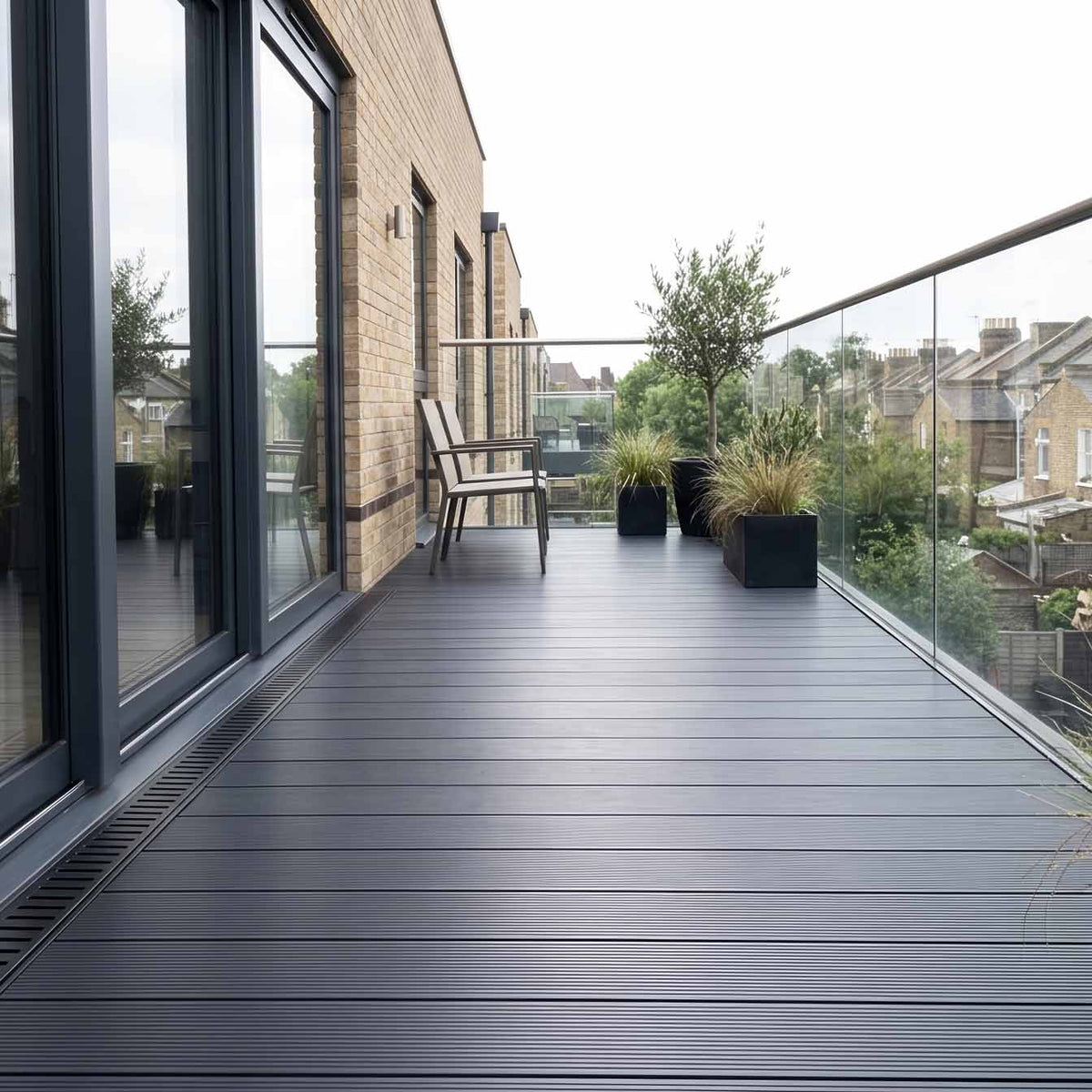

Aqua-Channel Aluminium Decking Boards create a patented interlocking imperforate layer to collect and direct water on the balcony surface, with innovative interchangeable inserts to give a continuous flush or classic gapped decking appearance.

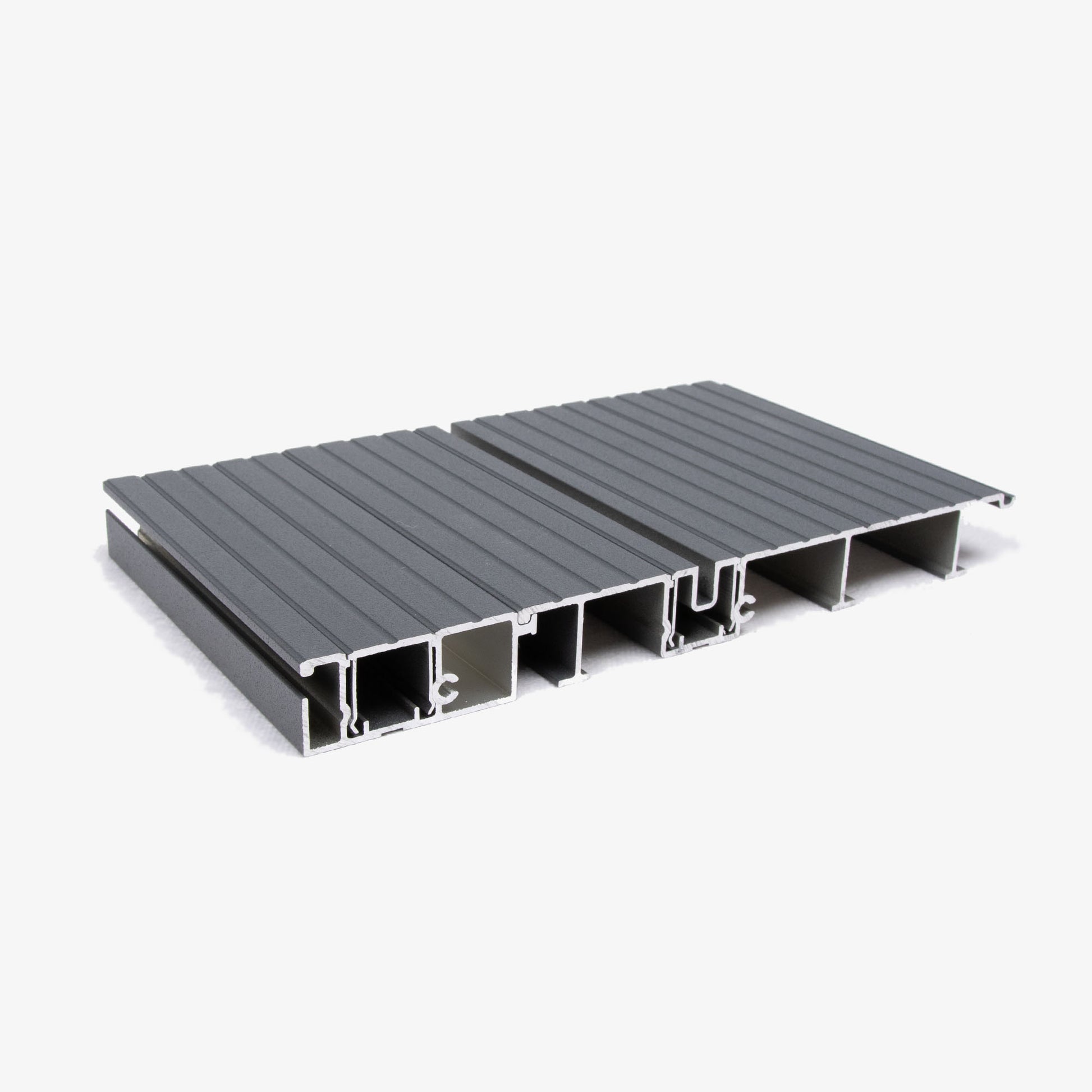

An offset hidden channel within the boards is used to fix the system down whilst hiding fixing screws in addition to giving a greater range of widths that a board can be ripped to if required to fit a balcony. The range comes complete with decorative threshold drain, full boarder drainage system or subsurface drainage, which combined with patented slope creating support brackets can direct water to any part of the balcony.

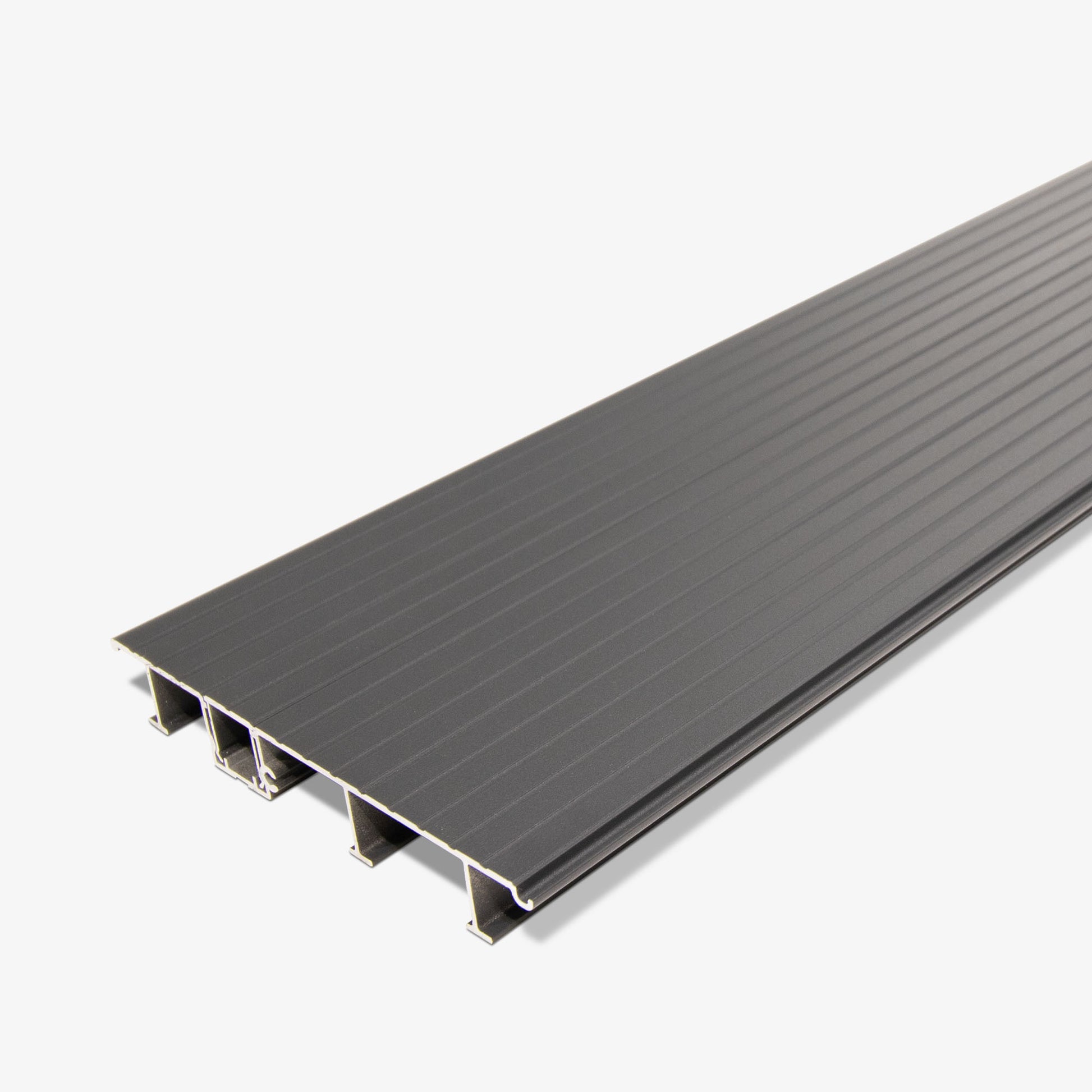

The 150mm width boards are engineered from T6 6063 aluminium for a max span of 650mm and coated with durable, slip resistant Qualicoat standard powder coating, up to Seaside Level 2.

  • Class A2 to EN 13501-1
  • Qualicoat certified powder coat
  • Legally compliant to BS:8579
Order Samples View full details
  • Profile: 150 x 21 mm

    Length: 3600 mm

    Weight: 9.57 kg/m² (using gap insert)

    Fixtures: MESA® Self-drilling Countersunk Screws

  • Reaction to Fire: A2 s1 d0 and A2fl s1

    3-Point Max Span: 650 mm

    2-Point Max Span: 575 mm

    Max Cantilever: 150 mm

    *All spans tested to 2kN point load

  • PTV Slip Resistance: Dry: 68 | Wet:41 – Low slip potential

    Micro Roughness: Rz: 21 μm – Low slip potential

    Finish: Qualicoat 1 textured powder coat

    Warranty: Up to 30 years

Downloads

4.51 MB

Aqua-Channel | Installation Guide

335.65 KB

Aqua-Channel Aluminium Deck Board | Technical Specification

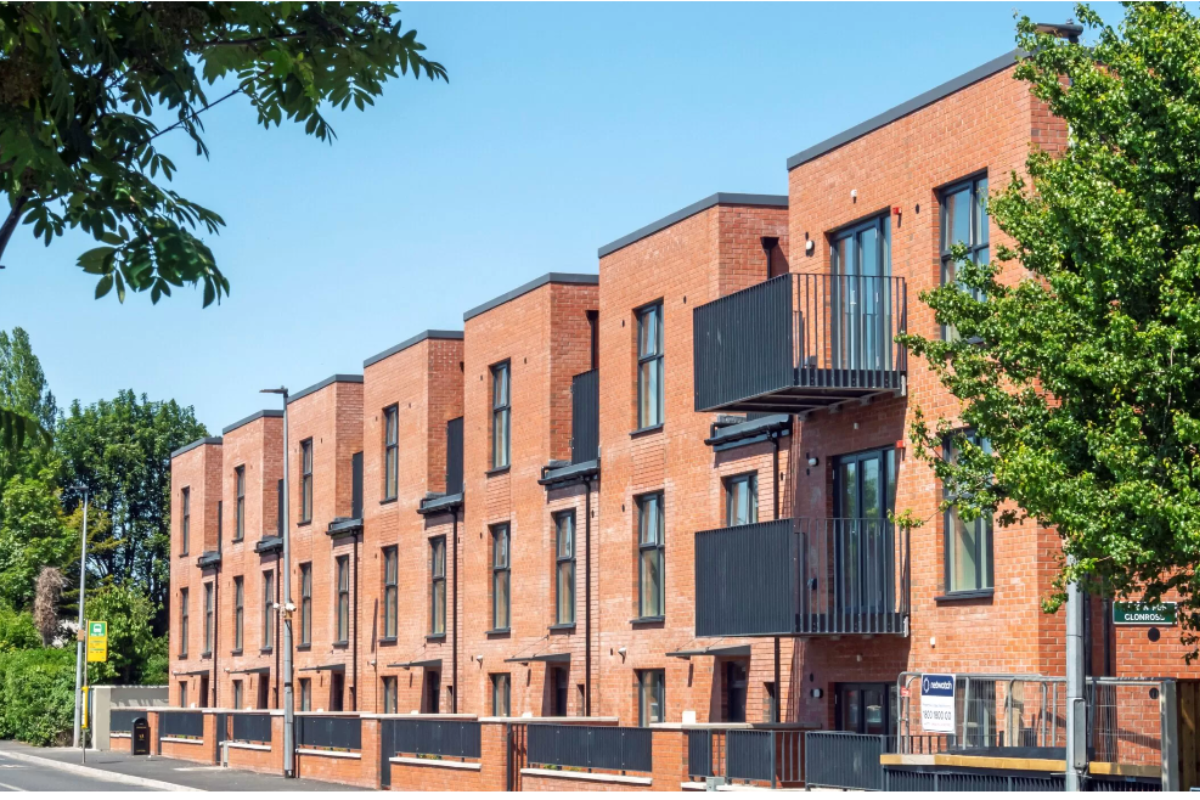

  • Residential Irish Balconies

    This project involved the construction of modern, energy-efficient homes that can stand as a testament to sustainable urban development, boasting cutting-edge design and technology.

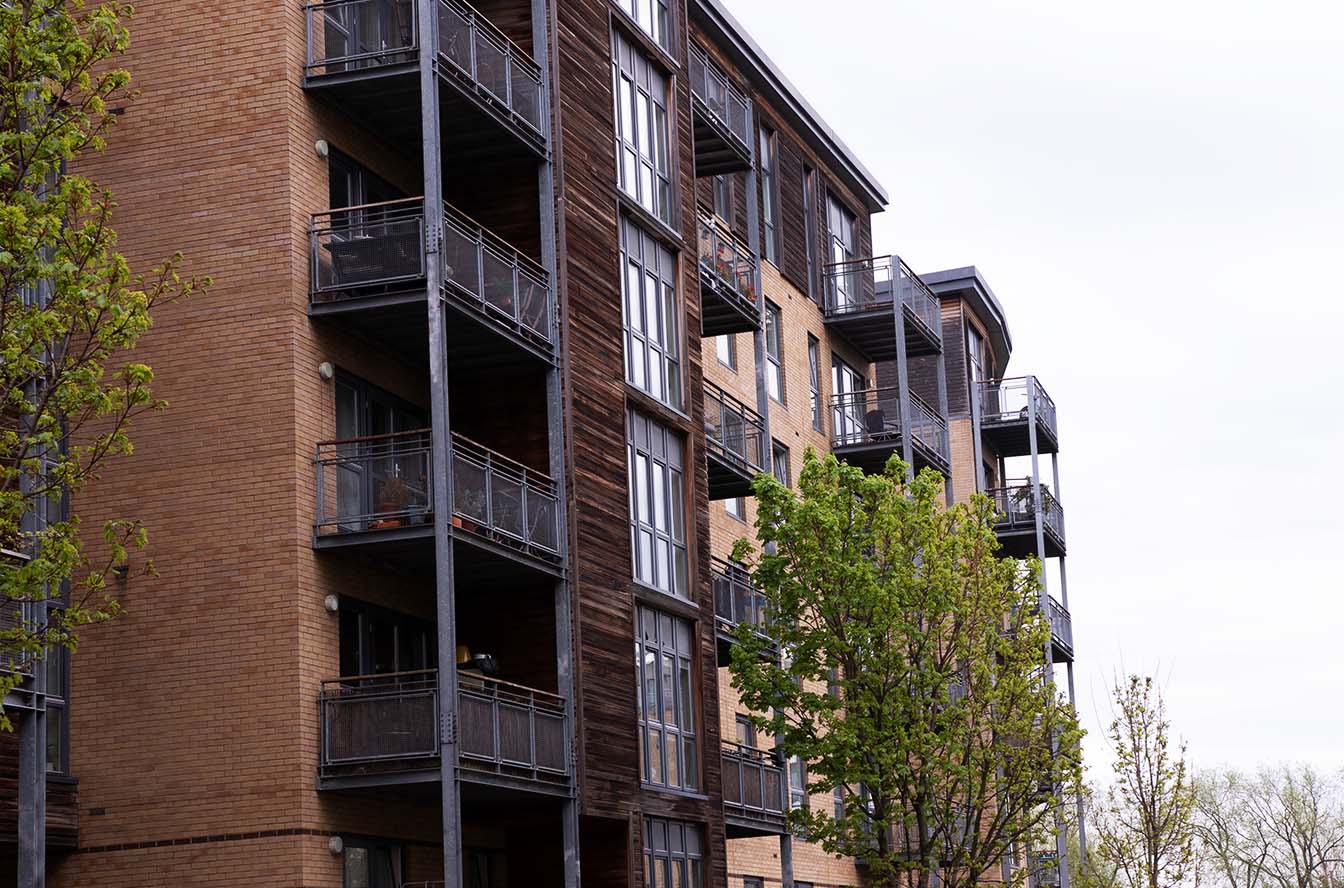

  • Latham's Yard
