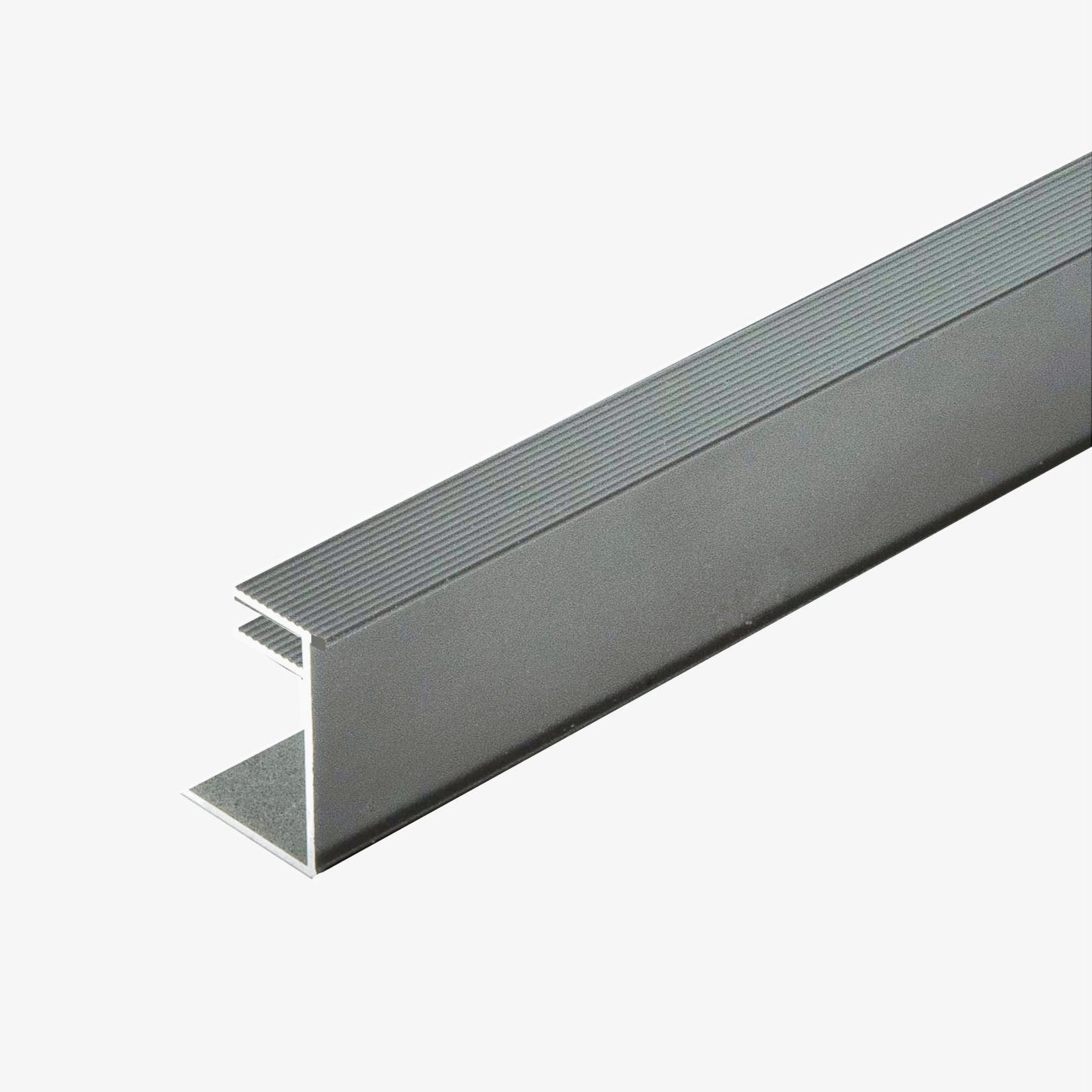

Pro-Grip Aluminium Deck Board Edge Support
Pro-Grip Aluminium Deck Board Edge Support
Pro-Grip Aluminium Deck Boards offers a cost-effective decking solution with simple installation using a hidden clip-system. The 145mm wide boards have a unique positively ridged surface to give outstanding slip resistance even as a mill finish product.

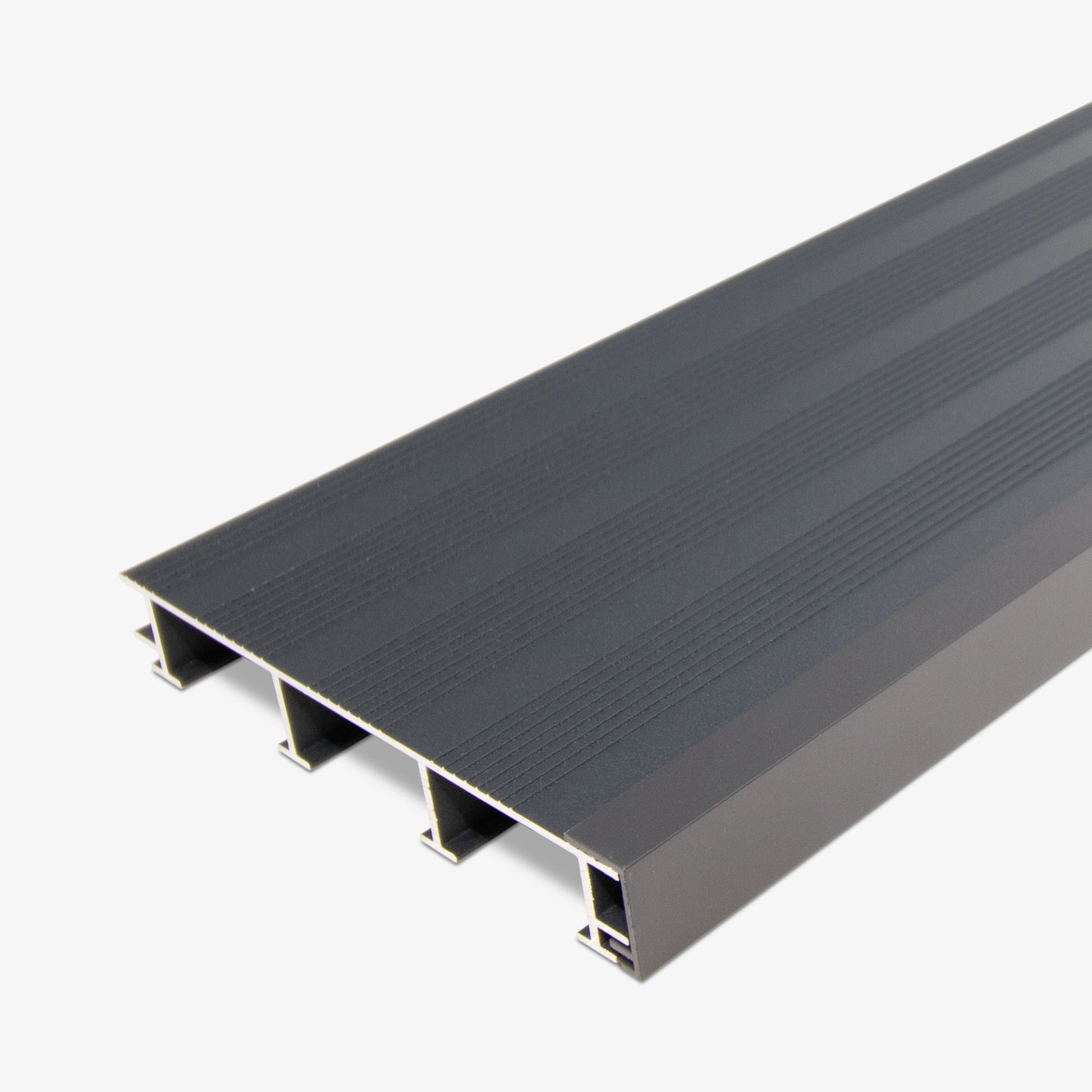

The Pro-Grip Edging Support can be used to support the ripped edge of a deck board, covering the cut aluminium edge, the support is simply fixed to the substructure with self drilling screws.Â
Ideal for flat roof terraces, the system comes complete with non-combustible aluminium bearers and adjustable support pedestals creating a total build up height between 50 to 600mm. The boards are engineered from T6 6063 aluminium for a max span of 650mm and coated with durable, slip resistant Qualicoat standard powder coating, up to Seaside Level 2, with the option of any RAL colour.
- Class A2 to EN 13501-1
- Qualicoat certified powder coat
- Legally compliant to BS:8579
Contact
Specifications
-
Profile: 15 x 23 mm
Length: 3600 mm (or bespoke up to 6m)
Weight: 0.19 kg/m
Fixtures: Self-Drilling Screws
-
Reaction to Fire: A2 s1 d0 and A2fl s1
3-Point Max Span:
2-Point Max Span:
Max Cantilever:
*All spans tested to 2kN point load
-
PTV Slip Resistance:
Micro Roughness:
Finish: Qualicoat up to Seaside Level 2
Warranty: 30 years
Components
Downloads
Pro-Grip | Installation Guide
Pro-Grip Aluminium Deck Board | Data Sheet
